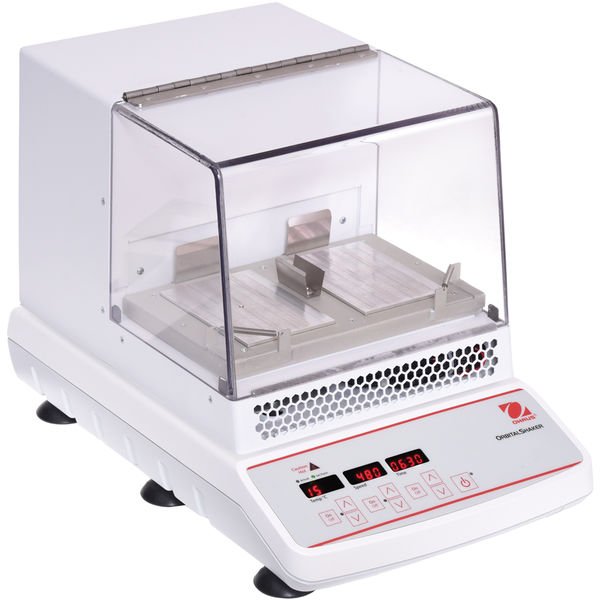

Ohaus - 30391945 - Incubating Cooling Orbital Shakers ISICMBCDG
Features
OHAUS Incubating Cooling Shakers are innovatively designed to incubate samples from 10°C below ambient to 65°C providing accurate and repeatable results. All models feature independent displays with intuitive touchpad controls and include safety features that protect both the user and samples. Sturdy shakers feature triple eccentric drive systems for stable orbital motion with microprocessor-control for reliable shaking action.
Applications
Immunoassays, Hybridizations, Cell Cultures, Bacterial & Yeast Cultures and Suspensions, ELISA Assays, PCR, Enzyme Reactions
Display
Easy-to-read, independent LED displays for temperature, speed and time allow the operator to view all settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Construction
Cast aluminum housing with polycarbonate lid, brushless DC motor
Design Features
Spill-resistant design, overload protection, caution hot indicator
Specifications
Overview
-
Nominal Height:10.5" (26.67 cm)
-
Nominal Width:11" (27.94 cm)
-
Nominal Length:17.9" (45.47 cm)
Technical Data
-
Motion:Orbital, 3 mm
-
Capacity:2 Microplates or 2 Modular Blocks
-
Temp. Range:10°C below Ambient - 65°C
-
Speed Range:100 rpm - 1200 rpm
-
Control:Digital
-
Speed Range - Microplates:100 to 1200 rpm
-
Speed Range - Modular Blocks:100 to 600 rpm
-
Calibration:Temperature calibration
-
Drive System:Triple Eccentric, Brushless DC Motor
-
Net Weight:29.5 lb (13.4 kg)
-
Orbit:0.1 in (3 mm)
-
Power:120V, 2A, 50/60Hz
-
Power Consumption:200 W
-
Safety Certification:TUV
-
Speed Accuracy:±2%
-
Timer:1 second - 160 hours
-
Uniformity:± 0.5°C at 37°C
-
Working Environment:41°F - 104°F, 80% RH, Non-condensing (5°C - 40°C, 80% RH, Non-condensing)
