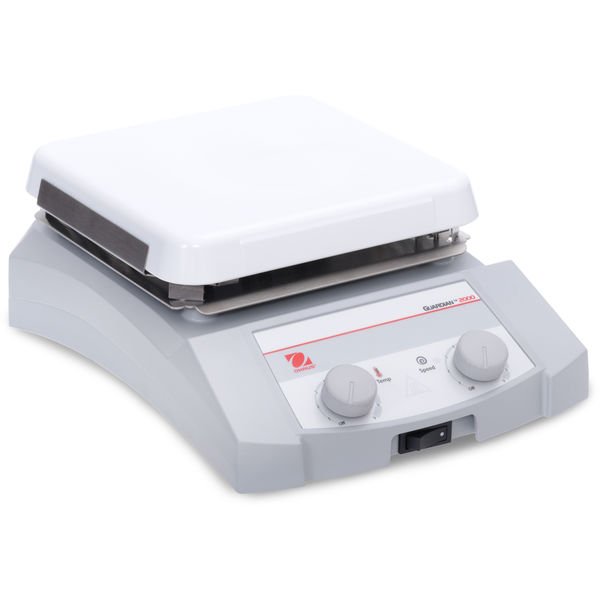

Ohaus - 30680258 - Guardian™ 2000 Hotplates and Stirrer e-G21HS07C 120V60Hz AM
Features
Dependable OHAUS Guardian 2000(TM) Hotplates and Stirrers are ideal for education and other lab environments that require affordable, everyday fast heating and reliable stirring up to 15L. All three sizes offer simple knob control to easily adjust the heating and stirring functions. The durable housing includes a built-in support rod holder which accepts the optional support rod. Stirring models include PTFE coated stir bars.
Applications
Boiling Liquids, Basic Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples.
Display
Prominent hot top indicator light, green indicator lights when unit is heating and stirring.
Operation
Simple knob control, stirring up to 1600 rpm, temperature up to 500°C (ceramic top) or 380°C (ceramic coated stainless steel top), power cord (included), stirring models include PTFE coated stir bar.
Construction
Durable metal housing, PET front panel, control knobs, ON/OFF switch for heater disconnect, built in support rod holder, easy to clean resin, ceramic or ceramic coated stainless steel tops.
Design Features
Hot top indicator light to protect user, green indicator lights illuminate when unit is heating and stirring.
Specifications
Overview
-
Nominal Height:4.4" (11.18 cm)
-
Nominal Width:8.8" (22.35 cm)
-
Nominal Length:12.5" (31.75 cm)
Technical Data
-
Function:Heating and Stirring
-
Capacity:15 L
-
Plate Construction:Ceramic
-
Plate Size:7 in x 7 in (178 mm x 178 mm) (LxW)
-
Temp. Range:70°C - 500°C
-
Control:Analog
-
Power Consumption:1,035 W
-
Working Environment:5°C - 40°C, 80% RH, Non-condensing (41°F - 104°F, 80% RH, Non-condensing)
-
Speed Range:200 to 1600 rpm
-
Net Weight:8.6 lb (3.9 kg)
-
Safety Certification:TUV
-
Power:100V-120V~ 10A 60Hz
