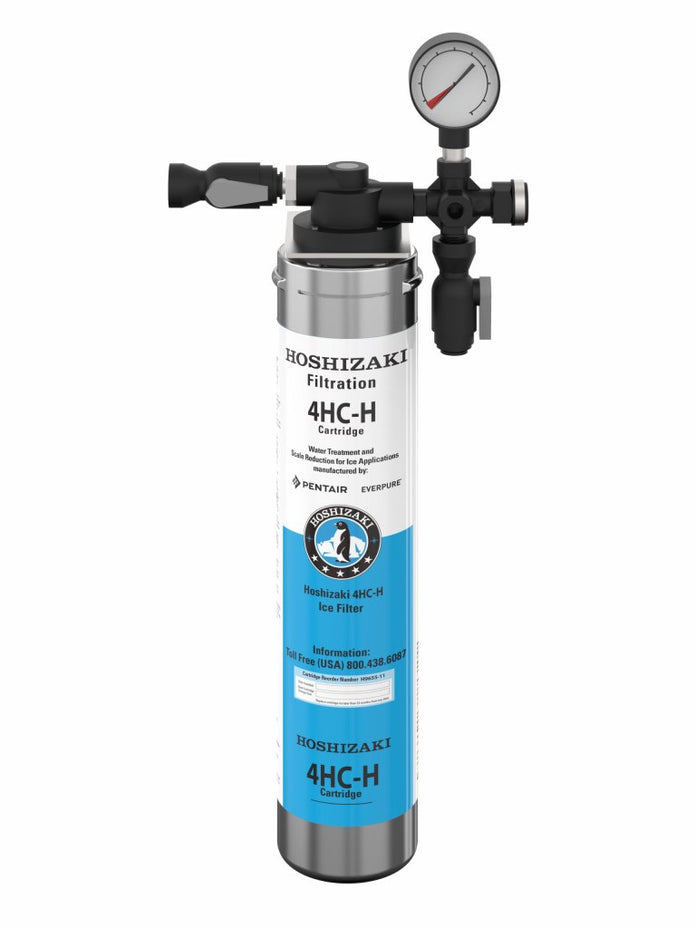

Hoshizaki - H9320-51 - Single Water Filter System with Manifold & Cartridge

Features
The Hoshizaki, H9320-51, Single Water Filter System is perfect for food service applications and ice machines. It’s 2 gpm, nominal 1 micron rated, water filter works with single, double, and triple filtration systems. It will protect your ice machine and decrease maintenance by reducing sediment, lime scale buildup, and more. The 4HC-H filter replaces the discontinued HC-F and HC-H filters. This filter is shorter in length than the previous HC and HC-H filters. Not recommended for use with flakers.
The 4HC-H filter(s) reduces up to 93.7% of disinfectant chlorine for better tasting water and ice. Replace approximately every 21,000 gallons or 6-12 Months depending on usage and water condition. NSF Standard 42.
- Available in single, double and triple configurations. Rated NSF Class 1, STD 42, for taste, odor and chlorine reduction and for mechanical filtration (95.6% removal of particles one(1)micron and larger in size.)
- Keep ice makers functioning at full capacity
- 97.3% average reduction of chlorine from incoming water supply, eliminating tastes and odors of the ice
- Filters are rated as one (1) micron nominal producing crystal clear ice
- Decrease machine maintenance by reducing lime scale build-up
Specifications
Overview
-
Nominal Height:21" (53.34 cm)
-
Nominal Width:6" (15.24 cm)
-
Nominal Length:10" (25.4 cm)
Specifications
-
Filter:4HC-H
-
Max Flow Rate:2 gpm
-
Working Pressure:10-125 psi
-
Temperature:35-100°F
-
Capacity:21,000 gal
