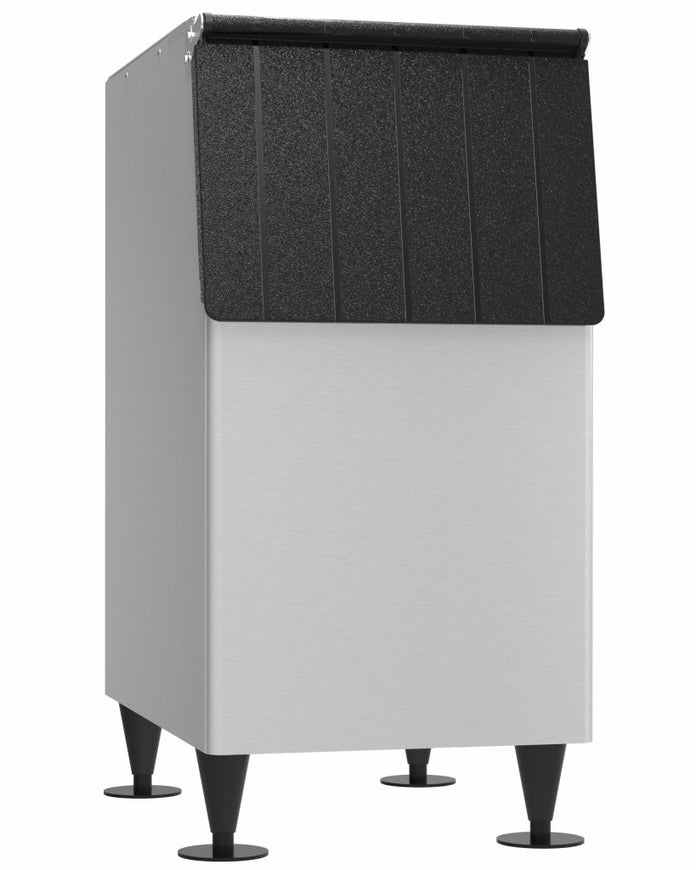

Hoshizaki - B-300SF, 22" W Ice Storage Bin with 300 lbs Capacity, Stainless Steel Exterior

Features
Safely store up to 300 lbs of ice* with this B-300SF 22″ high-capacity ice storage bin! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The B-300SF features a durable Stainless Steel exterior cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes Standard with 6″ Painted Flange Legs and a Top-hinged front-opening bin door. 3/4″ FPT drain. The unit is ETL Verified, NSF and includes a Two Years: Parts & Labor warranty (Before January 2012 production).
Capacity based on 11.51 ft3 x 30lbs/ft3 average density of ice.
- Polyethylene bin liner for sanitary storage
- Sturdy construction for side-by-side or stacked ice machine installation

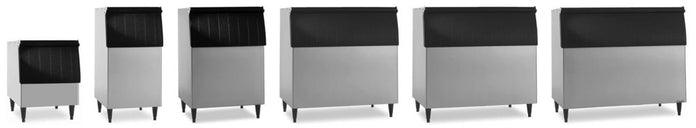

- Ice storage capacity from 250 lbs. up to 900 lbs.
- Both surfaces are designed for easy cleaning
- Long lasting attractive appearance
- Foamed-in-place polyurethane insulation, in all bin walls and bottom, provides dependable ice storage
- H-GUARD Plus Antimicrobial adds extra protection to the ice scoop (included)
Specifications
Overview
-
Nominal Height:46" (116.84 cm)
-
Nominal Width:22" (55.88 cm)
-
Nominal Length:32.3" (82.04 cm)
-
Internal Height:37.60" (95.5 cm)
-
Internal Width:19" (48.26 cm)
-
Internal Length:27.70" (70.36 cm)
Specifications
-
Application Storage Capacity:300 lbs.
-
Cubic Volume:11.51 ft3
-
Shipping Dimensions L x W x H:35" x 24" x 45"
-
Shipping Weight (lbs.):125
