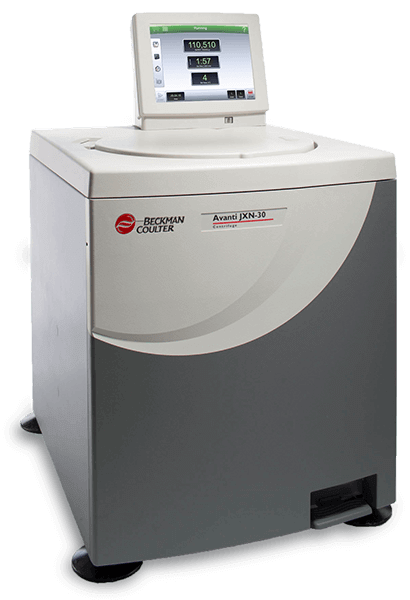

Beckman Coulter - B38621 - Avanti JXN-30 IVD Centrifuge, 200-240V, 50/60 Hz, 24A

Beckman Coulter - B38621 - Avanti JXN-30 IVD Centrifuge, 200-240V, 50/60 Hz, 24A

Beckman Coulter - B38621 - Avanti JXN-30 IVD Centrifuge, 200-240V, 50/60 Hz, 24A

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
This build includes In Vitro Diagnostics (IVD) compatibility. Now you can address the challenges of a shared lab with the JXN 30 IVD Centrifuge. With all the applications of a floor-standing centrifuge, the JXN-30 features a rotor speed of 30,000 RPM and RCF greater than 100,000 x g. It’s compatible with an expansive library of rotors, including fixed-angle and swinging bucket options. Exceptional performance, improved BioSafety and advanced levels of networking can help you master daily lab challenges and achieve the throughput you need for shared labs, GMP environments and networked instruments. Includes data logging and real-time run graphing functionality. Via network or mobile device, the MobileFuge app adds the ability to access and monitor data remotely, manage permissions, address error handling and more. Stores up to 1,000 user-defined programs and up to 50 profiles.

Features

Covering all of the applications of a floor-standing centrifuge, the Avanti® JXN-30 features rotor speed of 30,000 RPM and RCF greater than 100,000 x g. Master daily lab challenges with the advanced levels of networking, reliable performance, and improved BioSafety* found in the Avanti JXN-30.



The additional power of the MobileFuge app gives additional flexibility, including the ability to:



  • Access and monitor data remotely
  • Receive system notifications via email
  • Manage permissions
  • Address error handling and more via networks or mobile devices



Easy to use software



  • Simultaneous display of set and actual run conditions
  • Rotor selection by name (not code)
  • 11 acceleration/12 deceleration rates
  • Delay start
  • Run times to 99:59, Hold, and ω2t integrator for applications requiring precise reproducibility



Powerful data management



  • Up to 1,000 user-defined programs
  • Storage for numerous protocols
  • Password protection for up to 50 unique user profiles
  • Networking capability for multiple instruments
  • Data logging and real-time run graphing



15" LED Touchscreen Monitor



  • Built to withstand 10 million touches
  • Backlight life of 50,000 hours
  • LED backlight for 20% power saving and environmental protection
  • Triple Redundant Safety Systems
  • Windage, inertia, and rotor ID checks via magnets offer triple redundant safety
  • Friction Reduction System (FRS) for quicker, quieter, and cooler runs
  • High-torque, Switched Reluctance (SR) drive cycle for shorter cycle times

Specifications

Overview

  • Nominal Height:
    55.5" (140.97 cm)
  • Nominal Width:
    28" (71.12 cm)
  • Nominal Length:
    33.9" (86.11 cm)
  • Capacity:
    4

Technical Data

  • Platform:
    Avanti
  • Maximum Speed:
    30,000 rpm
  • Maximum g-Force:
    110510 xg
  • BioSafe:
    Yes
  • Acceleration:
    11 acceleration profiles
  • Deceleration:
    12 profiles
  • Timed Run:
    1 min to 99 hrs, 59 mins
  • Max Capacity Volume Range:
    1 - 4 L
  • Refrigeration System:
    Non-CFC, non-ozone depleting refrigerant
  • Temperature Range(s):
    -20° to +40° C
  • Rotor ID:
    Automatic
  • Zonal Capability:
    Yes
  • Pollution Degree:
    2
  • Environmental Conditions:
    -20°C to 40°C in 1° increments
  • Installation Category:
    II
  • Software:
    Virtual Network Computing (VNC), Mobile Fuge app for Apple iOS and Android
  • Material(s):
    Steel, Structural Foam, Plastic
  • Finish:
    Powder Coat Paint
  • Weight:
    310 kg(683.4 lb)
  • Clearances:
    7.6 cm (sides) & 16 cm (rear)
  • Humidity Restrictions:
    80% (non-condensing)
  • Power Requirements:
    200-240 VAC , 50/60 Hz
