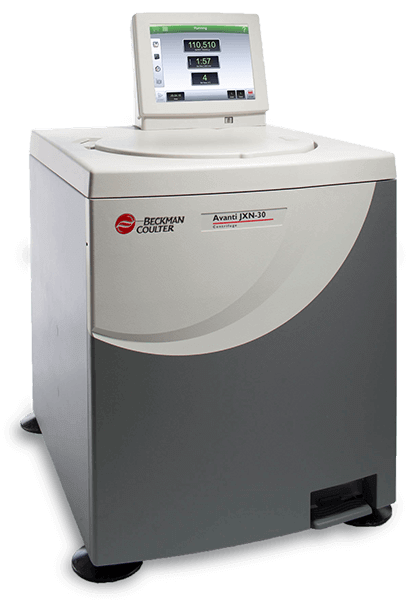

Beckman Coulter - B34193 - Avanti JXN-30 Centrifuge, 200-240V, 50/60 Hz, 24A

Beckman Coulter - B34193 - Avanti JXN-30 Centrifuge, 200-240V, 50/60 Hz, 24A

Beckman Coulter - B34193 - Avanti JXN-30 Centrifuge, 200-240V, 50/60 Hz, 24A

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Overcome shared lab challenges with the JXN 30 Centrifuge. Covering all the applications of a floor-standing centrifuge, the JXN-30 features a rotor speed of 30,000 RPM and RCF greater than 100,000 x g.

Features

Covering all of the applications of a floor-standing centrifuge, the Avanti® JXN-30 features rotor speed of 30,000 RPM and RCF greater than 100,000 x g. Master daily lab challenges with the advanced levels of networking, reliable performance, and improved BioSafety* found in the Avanti JXN-30.



The additional power of the MobileFuge app gives additional flexibility, including the ability to:



  • Access and monitor data remotely
  • Receive system notifications via email
  • Manage permissions
  • Address error handling and more via networks or mobile devices



Easy to use software



  • Simultaneous display of set and actual run conditions
  • Rotor selection by name (not code)
  • 11 acceleration/12 deceleration rates
  • Delay start
  • Run times to 99:59, Hold, and ω2t integrator for applications requiring precise reproducibility



Powerful data management



  • Up to 1,000 user-defined programs
  • Storage for numerous protocols
  • Password protection for up to 50 unique user profiles
  • Networking capability for multiple instruments
  • Data logging and real-time run graphing



15" LED Touchscreen Monitor



  • Built to withstand 10 million touches
  • Backlight life of 50,000 hours
  • LED backlight for 20% power saving and environmental protection
  • Triple Redundant Safety Systems
  • Windage, inertia, and rotor ID checks via magnets offer triple redundant safety
  • Friction Reduction System (FRS) for quicker, quieter, and cooler runs
  • High-torque, Switched Reluctance (SR) drive cycle for shorter cycle times

Specifications

Overview

  • Nominal Height:
    33.9" (86.11 cm)
  • Nominal Width:
    28" (71.12 cm)
  • Nominal Length:
    33.9" (86.11 cm)
  • Capacity:
    4

Technical Data

  • Platform:
    Avanti
  • Maximum Speed:
    30,000 rpm
  • Maximum g-Force:
    110510 x g
  • BioSafe:
    Yes
  • Acceleration:
    11 acceleration profiles
  • Deceleration:
    12 profiles
  • Timed Run:
    1 min to 99 hrs, 59 mins
  • Max Capacity Volume Range:
    1 - 4 L
  • Refrigeration System:
    Non-CFC, non-ozone depleting refrigerant
  • Temperature Range(s):
    -20° to +40° C
  • Rotor ID:
    Automatic
  • Zonal Capability:
    Yes
  • Pollution Degree:
    2
  • Environmental Conditions:
    -20°C to 40°C in 1° increments
  • Software:
    Virtual Network Computing (VNC), Mobile Fuge app for Apple iOS and Android
  • Material(s):
    Steel, Structural Foam, Plastic
  • Finish:
    Powder Coat Paint
  • Weight:
    310 kg(683.4 lb)
  • Clearances 7.6 cm:
    side & rear
  • Humidity Restrictions:
    80% (non-condensing)
  • Power Requirements:
    200-240 VAC , 50/60 Hz
