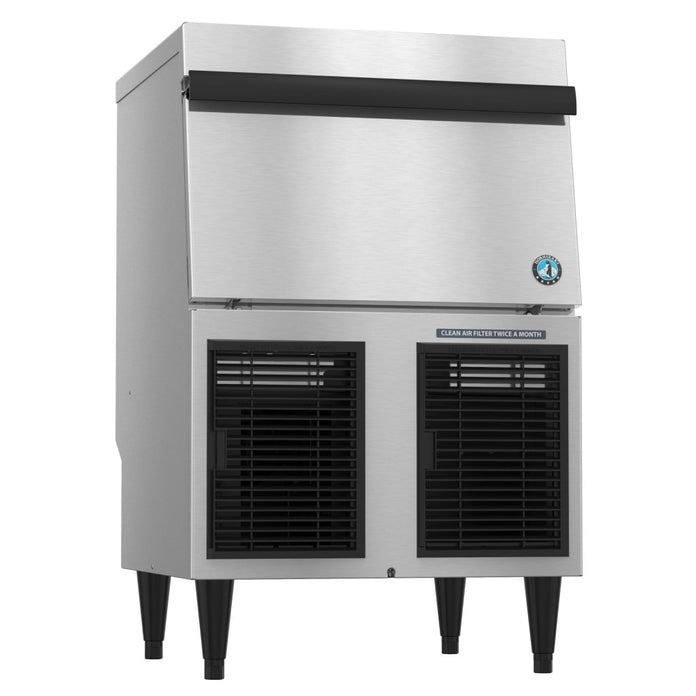

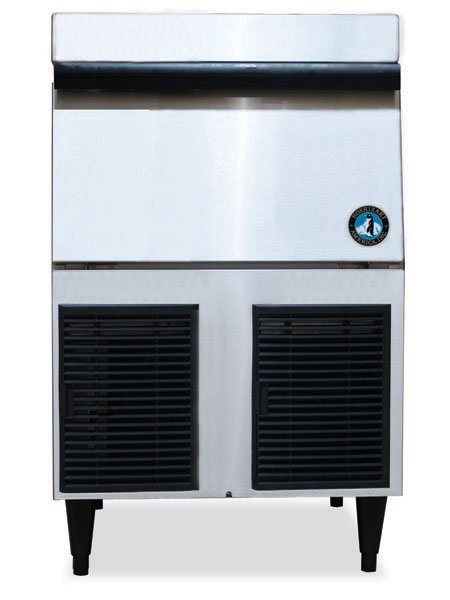

Hoshizaki - F-330BAJ, Flaker Icemaker, Air-cooled, Built in Storage Bin

Hoshizaki - F-330BAJ, Flaker Icemaker, Air-cooled, Built in Storage Bin
Hoshizaki - F-330BAJ, Flaker Icemaker, Air-cooled, Built in Storage Bin

Hoshizaki - F-330BAJ, Flaker Icemaker, Air-cooled, Built in Storage Bin

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Up to 332 lbs of ice produced per 24 hours Up to 80 lbs of built-in storage capacity (2.7ft3) Produces flaked ice Durable stainless steel exterior Front in, front out airflow 2 second rinse every hour to remove sediment Advanced CleanCycle24™ design.

Features

The F-330BAJ is capable of producing approximately 332 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details.



  • F-330BAJ - Up to 332 lbs. of ice production per 24 hrs.
  • Front breathing allows for easier fit into tight spaces
  • Durable stainless steel exterior
  • Stainless steel auger with greaseless
  • Built-in storage capacity of 2.7ft3/80 lbs.
  • Advanced CleanCycle24TM design 2 second flush cycle every hour
  • Convenient drop down door
  • Front access for easier maintenance
  • Removable air filters
  • Equipped with 8 ft. cord with NEMA 5-15P Plug
  • R-404A Refrigerant bearing

Specifications

Overview

  • Nominal Height:
    39" (99.06 cm)
  • Nominal Width:
    24" (60.96 cm)
  • Nominal Length:
    26" (66.04 cm)

Technical Data

  • Condenser:
    Air
  • Air / Water Temp Lbs. per 24 Hours 70°/ 50°F:
    332
  • Air / Water Temp Lbs. per 24 Hours 90°/ 70°F:
    243
  • Potable Gal. per 100 lbs. 90°/ 70°F:
    12.0
  • kWh Used per 100 lbs. 90°/ 70°F:
    5.91
  • Min. Circuit/ Max. Fuse Size:
    15A
  • Amperage:
    6.9A
  • Voltage:
    115V/60/1
  • Heat Rejection BTU/hr.:
    3,400
  • Refrigerant Charge Amount:
    7.1 oz
  • Net / Ship Weight (lbs.):
    147 / 178
