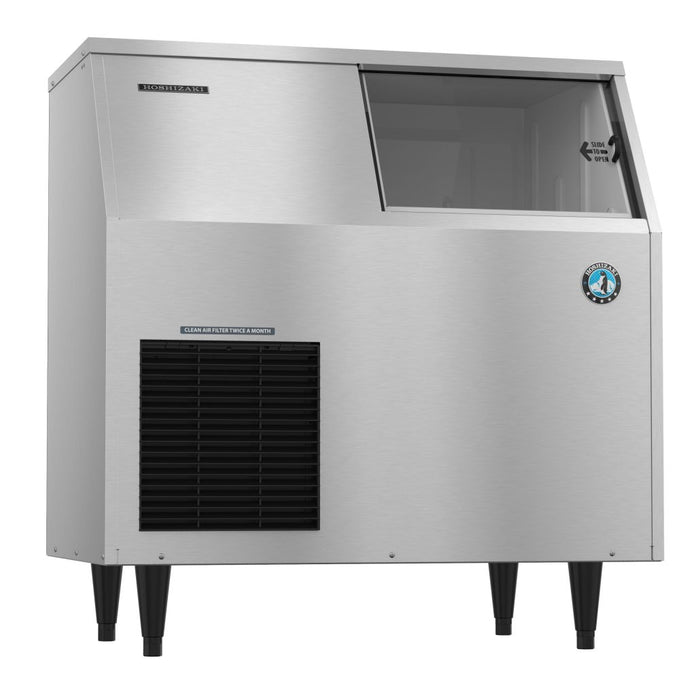

Hoshizaki - F-300BAJ, Flaker Icemaker, Air-cooled, Built in Storage Bin

Features
The F-300BAJ is capable of producing approximately 353 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 100 lbs of ice*. It features an Automatic system flush when bin control is activated plus a greaseless bearing auger construction making it simple to maintain. The F-300BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
F-300BAJ - Up to 353 lbs. of ice production per 24 hrsF-300BAJ - Built-in storage capacity of 3.7ft3 /110 lbs.
- Durable stainless steel exterior
- Advanced CleanCycle24TM design
- Stainless steel auger with greaseless bearing
- 2 second flush cycle every hour
- Flush cycle removes sediment for cleaner ice
- Corrosion resistant stainless steel
- Gear motor protected from overload
- Removable air filter
- R-404A Refrigerant
Specifications
Overview
-
Nominal Height:39.25" (99.7 cm)
-
Nominal Width:36" (91.44 cm)
-
Nominal Length:24.25" (61.6 cm)
Technical Data
-
Condenser:Air
-
Air / Water Temp Lbs. per 24 Hours 70°/ 50°F:353
-
Air / Water Temp Lbs. per 24 Hours 90°/ 70°F:247
-
Potable Gal. per 100 lbs. 90°/ 70°F:12.0
-
kWh Used per 100 lbs. 90°/ 70°F:6.14
-
Min. Circuit/ Max. Fuse Size:15A
-
Amperage:7.8A
-
Voltage:115V/60/1
-
Circuit Wires (including ground):NEMA 5-15P
-
Heat Rejection BTU/hr.:2,300
-
Refrigerant Charge Amount:9.2 oz.
-
Net / Ship Weight (lbs.):182 / 200
