Crystal Industries - IS-A - AEOLUS™ Compact Incubator Shaker, 3mm Orbit
Features

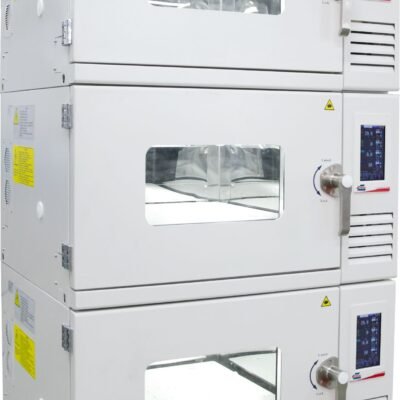

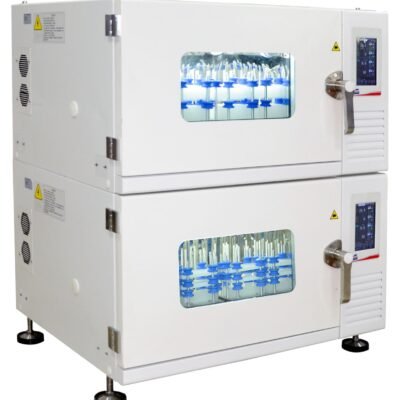

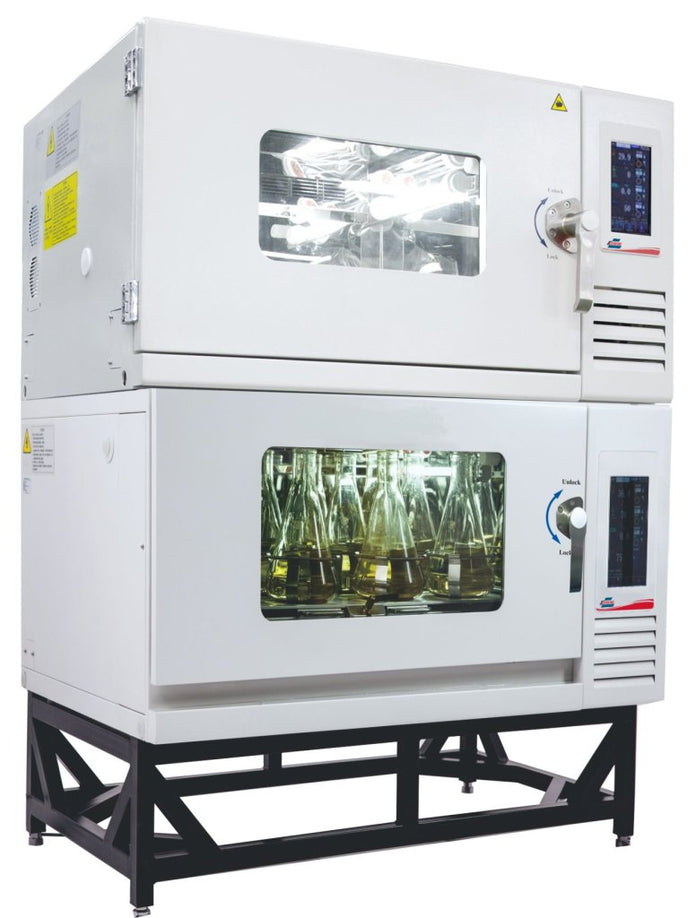

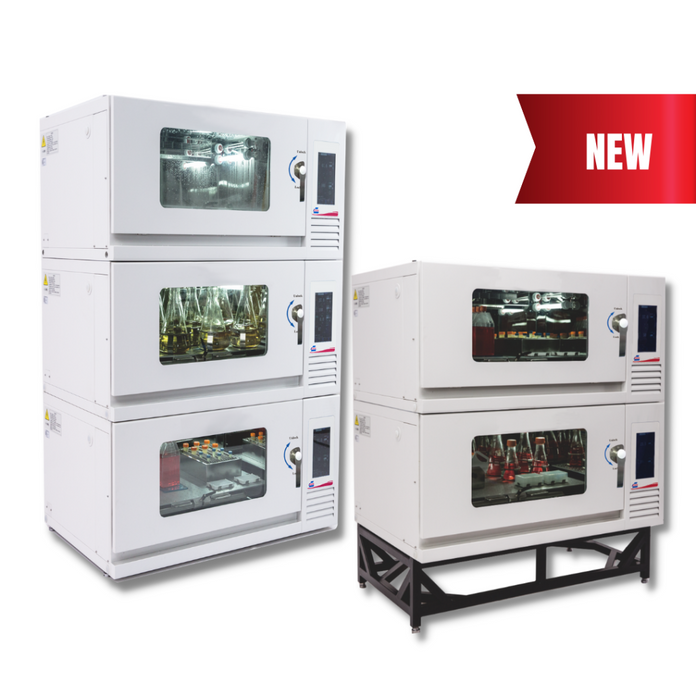

The CO2 Compact Incubator Shaker features Temperature, Shaking, CO2 Concentration, and Humidity controls. With 3mm, 25mm and 50mm orbit models available, its stackable design helps maximize floor space, with the capability of stacking up to three units high.
- 7" high-res color touch screen with intuitive graphic interface
- Innovative chamber design features smooth rounded internal corners for easy cleaning
- Infra-red (IR) CO2 sensor for precise and reliable CO2 detection
- Optional WiFi and RS485 control
- UV lights for easy sterilization
- Audible and visual alarms
- Mirror finish, pharmaceutical-grade stainless steel chamber
- Stackable design up to 3 units

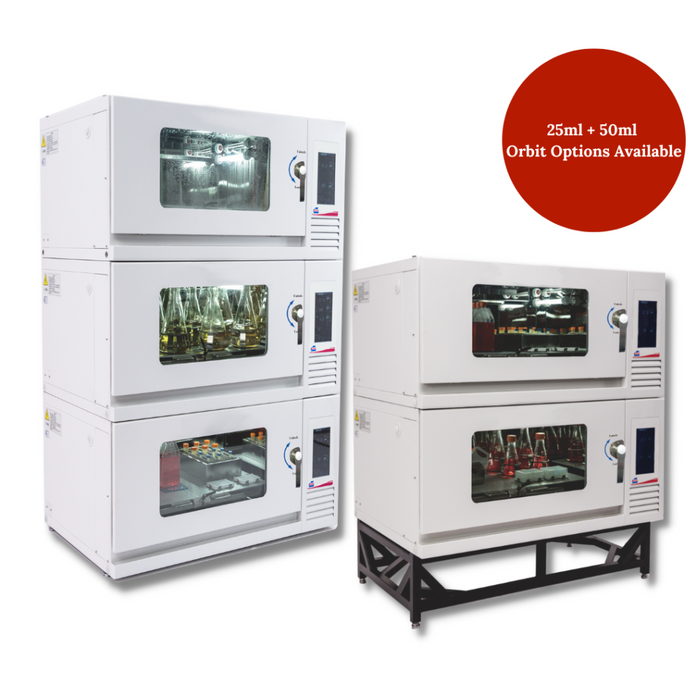

- 25 mm and 50 mm orbit models available
- Also available in a 3 mm orbit model
- Video player
Specifications
Overview
-
Nominal Height:20.87" (53.01 cm)
-
Nominal Width:38.19" (97.0 cm)
-
Nominal Length:30.71" (78.0 cm)
-
Internal Height:18.66" (47.4 cm)
-
Internal Width:25.75" (65.41 cm)
-
Internal Length:23.82" (60.5 cm)
Product Data
-
Max Load:10 kg (22.05 lb)
-
Temperature Range:Room Temp, -18°C to 60°C (lowest 4°C)
-
Temperature Accuracy:±0.1°C
-
Temperature Uniformity:±0.3°C (@37°C)
-
Temperature Recovery:≤6 min (@37°C after 30s door open)
-
Speed Accuracy:±1 RPM
-
Drive:Magnetic Drive
-
Relative Humidity:Active, up to 90% or 95%
-
Programmable Segments:12
-
Timer:0–999 hr 59 min
-
Illumination:LED lamps on left and right walls
-
Disinfection:UV lamps on left and right walls
-
Door Opening:Leftward
-
Display:7" color capacitive touch screen
-
Parameter Protection:Password protected
-
Data Storage:Time, temperature, speed, instrument status (plus CO2 and humidity for CO2 models), 1-minute interval, 7 days on-screen, 912 days via USB
-
Automatic Defrost:Yes
-
Noise Level:≤55 dB (compressor running)
-
Auto-Recovery:Yes after power interruption
-
Power Supply:AC 110V ±11V, 60 Hz
-
Power:≤450 W (heating), ≤180 W (cooling), ≤630 W (max)
-
WiFi Monitoring:Optional via accessory and app
-
Warranty:2 years parts and service
-
Certification:CE
