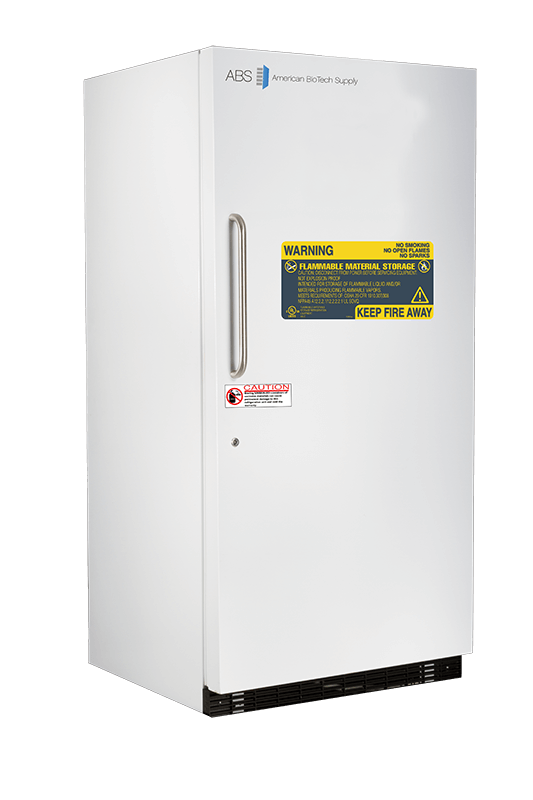

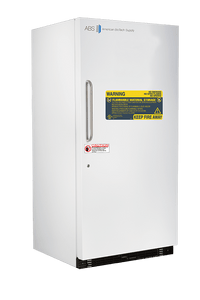

American Biotech Supply - ABT-FRS-30 - 30 Cu. Ft. Capacity General Purpose Flammable Storage Refrigerator
Features
The General Purpose Flammable Storage Refrigerators Meet NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. There are no electrical components located in the interior of the unit and the compressor's electrical components have been sealed in a vapor-proof enclosure for additional safety.
These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.
Details
- Five adjustable shelves
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handle
- Leveling legs
- CFC-free refrigerant (R404a), foam insulation and packaging
- One year parts and labor warranty
- Units meet NFPA guidelines 45 and 70
Temp Controller
- Mechanical thermostat
- Adjustable operating temperature range: 1°C to 10°C
Specifications
Overview
-
Nominal Height:72.5" (184.15 cm)
-
Nominal Width:35.75" (90.81 cm)
-
Nominal Length:35.5" (90.17 cm)
-
Internal Height:65" (165.1 cm)
-
Internal Width:32" (81.28 cm)
-
Internal Length:22.5" (57.15 cm)
-
Capacity:30
Technical Data
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:5 Adj.
-
Refrigerant:R404a
-
H.P.:1/3
-
Amps:6
-
Weight:321 lbs.
Drawings
-
ABT-FRS-30 Ext Cut SheetVisit Link
-
ABT-FRS-30 Int Cut SheetVisit Link
Useful Links
-
ABT-FRS-30 Spec SheetVisit Link
