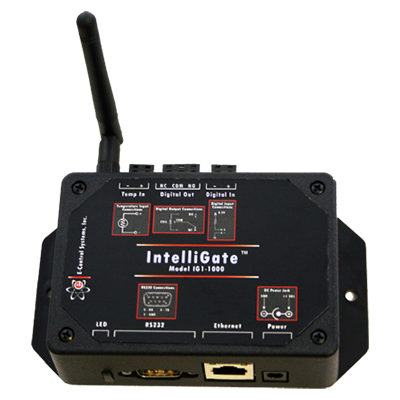

E-Control Systems’ IntelliGate™ is a feature-rich web-based internet appliance that allows you to access and manage all of the IntelliSensor™ data collected. Using the IntelliGate’s built-in secure web server, you can configure and view all of your IntelliSensor™ interfaces, then create triggers and alerts based on rules that you set up. Both current status and historical data are only a mouse click away using your standard internet browser. IntelliGate™ is configured to relay data securely to FusionLive™ enterprise software to provide a full turn-key solution.

The IntelliGate™ is a cost-effective, wireless monitoring system using the ZigBee® standard. Combining the key components of the IntelliSense™ network (IntelliSensor™, IntelliGate™, IntelliMesh™, and FusionLive™) allows easy creation of a centrally managed monitoring application.

IntelliGate™ Features

• Access and manage all types of IntelliSensors™ from a single location
• Built-in two sensor input and dry contact output
• Built-in Web Server to display current and past sensor data and alarms
• Multi-level Password Support
• Strongest wireless transmitter on the market
• Supports ZigBee® wireless standard
• Completely integrated solution with IntelliSensor™, IntelliMesh™, and FusionLive™ Software
• Can be configured and managed remotely using a standard web-browser
• No hardware configuration needed (Sensors automatically join network)
• Firmware can be remotely updated over the network
• Conformal coated board for moisture-rich operating environments

IntelliGate™ Specifications

• Operating temperature of -40 °C to 85 °C
• Operating humidity of 0 to 100 %, non-condensing

Sensor™ Specifications

• 0.1 °C Temperature resolution
• ± 1 °C Accuracy (± 0.5 °C with calibration)
• Alarm output (dry contact)
