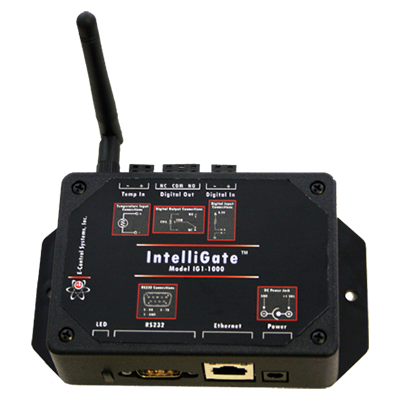

The IntelliGate™ is a cost effective, wireless monitoring gateway system using the ZigBee® standard. Combining the key components of the IntelliSense™ network (IntelliSensor™, IntelliGate™, IntelliMesh™, and FusionLive™) allows easy creation of a centrally managed monitoring application.

Features

E-Control Systems’ IntelliGate™ is a feature-rich web-based internet appliance that allows you to access and manage all of the IntelliSensor™ data collected. Using the IntelliGate’s built in secure web server, you can configure and view all of your IntelliSensor™ interfaces, then create trigger and alerts based on rules that you set up. Both current status and historical data are only a mouse click away using your standard internet browser. IntelliGate™ is configured to relay data securely to FusionLive™ enterprise software to provide a full turn-key solution.



The IntelliGate™ is a cost effective, wireless monitoring system using the ZigBee® standard. Combining the key components of the IntelliSense™ network (IntelliSensor™, IntelliGate™, IntelliMesh™, and FusionLive™) allows easy creation of a centrally managed monitoring application.



  • FusionLive™ Dashboard
  • 24/7 Continuous Monitoring
  • Web & App Based
  • Daily Summary Reports

Specifications

Overview

Technical Data

  • Air Flow (CFM):
    518
  • Filtration Technology:
    4
  • Internal Lighting:
    650
  • Power Consumption:
    220W
  • Air Face Velocity:
    0.4 to 0.6 m/s - 79 fpm to 118 fpm
  • Voltage/Fequency:
    90-220 V / 50-60 Hz
  • Sash Openings:
    Reverso Sash
  • Structure:
    Corrosion resistant electro-galvanized steel coated with anti-acid polymer
  • Side and Front Panels:
    Chemical resistant acrylic
  • Filtration Module:
    Polypropylene

Equipment

  • Communication Interface:
    Simple communication by audible and light pulses
  • Carbon Filtration for Gases and Vapors:
    Following filtration column configuration (see table above)
  • Particulate Filtration for Powders:
    Following filtration column configuration (see table above)
  • eGuard:
    APP for remote control to monitor the hood, and deliver safety alerts immediately to your devices (mobile, tablet and PC)
  • Anemometer:
    Air face velocity alarm
  • Chemical Listing:
    List of approved chemicals
