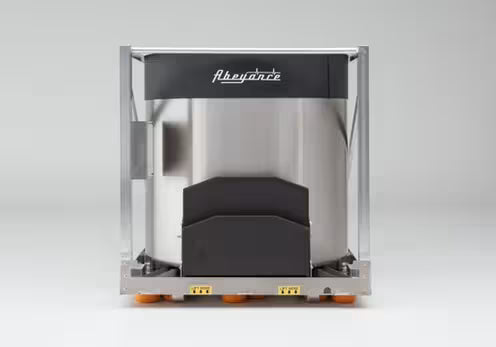

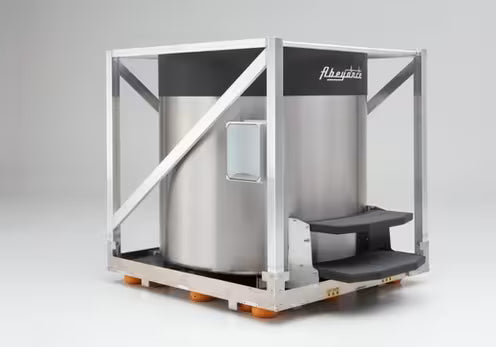

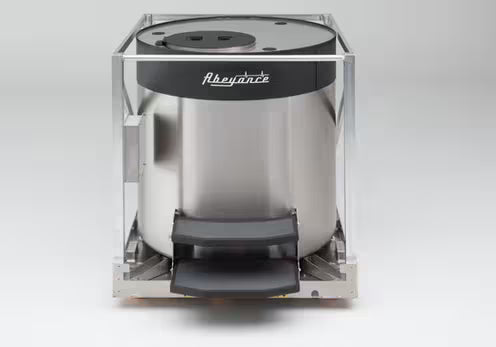

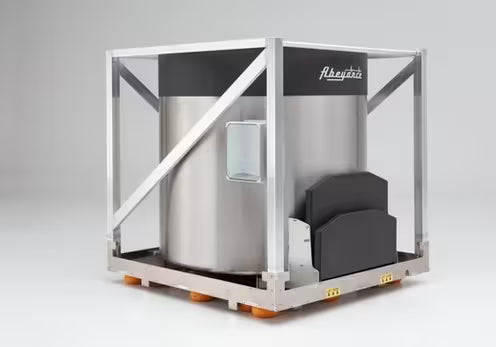

Azenta - Abeyance S840 Lab Mover
Features
The Abeyance S840 is the largest LN2 dry vapor shipper available. Designed for the safe and efficient transport of cryopreserved samples with a stable temperature and 14 day hold time below Tg. The S840 can ship via commercial wide-body aircraft while accommodating the tallest sample racks and frames. Save time and money with the flexibility to choose from more aircraft and flight schedules.
- Largest LN2 Dry Vapor Shipper Available
- Stable Cryogenic Shipping Temperature
- 14 Day Hold Time Below Tg
- Transit Tested to ISTA-6B
- Holds 15-2 Racks & Tall Blood Bag Frames
- Supports Various Data Loggers
- Vacuum Gauge for Quick Requalification
- Easily Moved with Pallet Jack or Forklift
- Made for Commercial Wide-Body Aircraft
- IATA Special Provision A152
- Rental Options Available
Specifications
Overview
-
Nominal Height:62" (157.48 cm)
-
Nominal Width:61" (154.94 cm)
-
Nominal Length:59" (149.86 cm)
2 ml Vial Capacity (Vials | Boxes | Racks)
-
Slim Vertical Racks:84,000 | 840 | 140
-
Boxes / Rack:6
-
Square Racks:78,000 | 780 | 52
-
Boxes / Rack:15
Blood Bag Capacity (Bags | Frames | Bags / Frame)
-
25 ml Cassettes:5,856 | 732 | 8
-
50 ml Cassettes:3,520 | 440 | 8
-
250 ml Cassettes:1,720 | 344 | 5
-
500 ml Cassettes:1,400 | 280 | 5

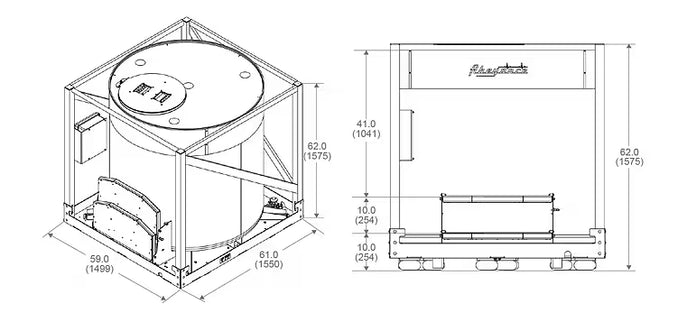

Dimensions
-
Usable Height - in (mm):34.0 (864)
-
Step Height - in (mm):10.0 (254) x 2
-
Liftover Height - in (mm):41.0 (1041)
-
Neck Opening - in (mm):23.2 (589)
-
Empty Weight - lbs (kg):2,025 (919)
-
Charged Weight - lbs (kg):2,500 (1134)
-
Maximum Working Weight - lbs (kg):4,200 (1905)
-
LN2 Capacity (Vapor Storage):250 L
-
Hold Time < Tg:> 14 Days
-
Warranty:1 Year Parts & Craftsmanship | 3 Years Vacuum
-
Safety | Regulatory:49 CFR 173.320 | IATA Special Provision A152
Downloads
-
Azenta S840 Lab Mover Cryo Freezer Specification SheetDownload
