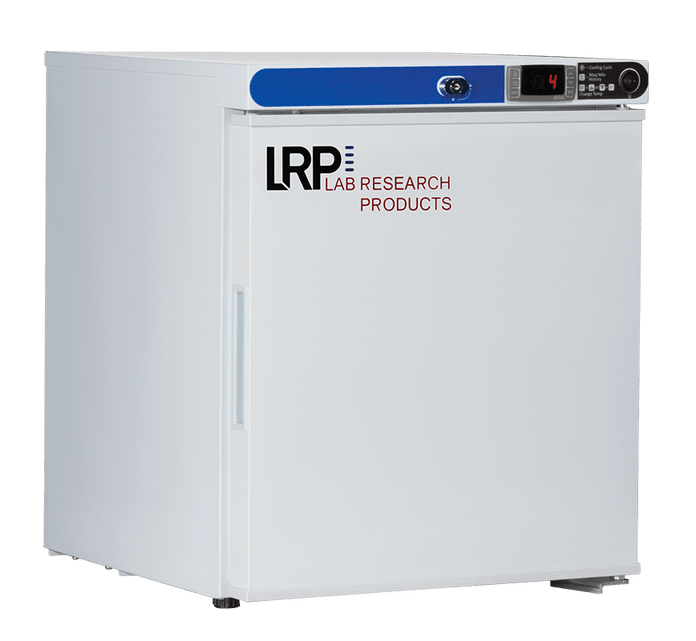

Lab Research Products - LRP-HC-UCFS-0104 - 1 Cu. Ft. Plus Series Countertop Refrigerator Freestanding

Features
The Plus Series Free Standing Undercounter Refrigerators feature a microprocessor temperature controller and display. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.
The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- 2 adjustable shelves
- Back wall evaporator cover
- Forced draft circulation
- Keyed door lock
- Integrated door handle
- Magnetic door gasket for positive seal
- Leveling legs
- LED interior light
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
Temp Controller

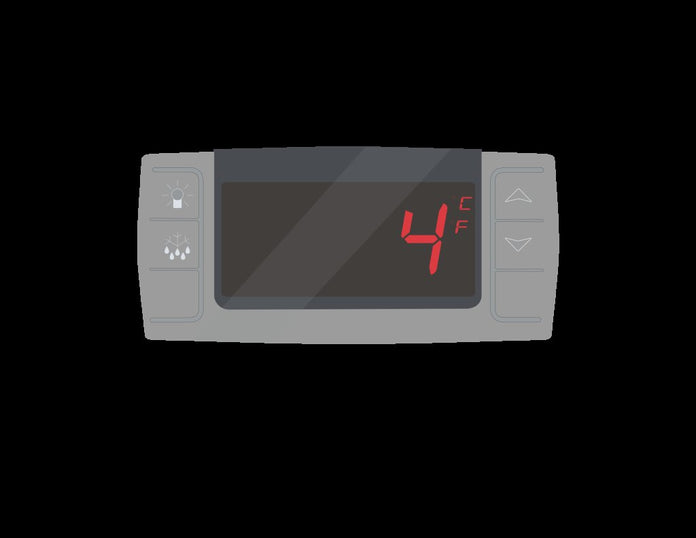

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in glycol bottle
- Adjustable operating temperature range: 1°C - 10°C
Specifications
Overview
-
Nominal Height:21.25" (53.98 cm)
-
Nominal Width:17.25" (43.82 cm)
-
Nominal Length:19.25" (48.9 cm)
-
Internal Height:15.75" (40.01 cm)
-
Internal Width:14" (35.56 cm)
-
Internal Length:8.88" (22.56 cm)
-
Capacity:1
Technical Data
-
Defrost:Cycle
-
Door:1 Solid (Reversible)
-
Int Door:0
-
Shelves:2 Adj
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:0.90
-
Weight:63 lbs.
Drawings
-
LRP-HC-UCFS-0104 Ext Cut SheetVisit Link
-
LRP-HC-UCFS-0104 Int Cut SheetVisit Link
Useful Links
-
LRP-HC-UCFS-0104 Spec SheetVisit Link
