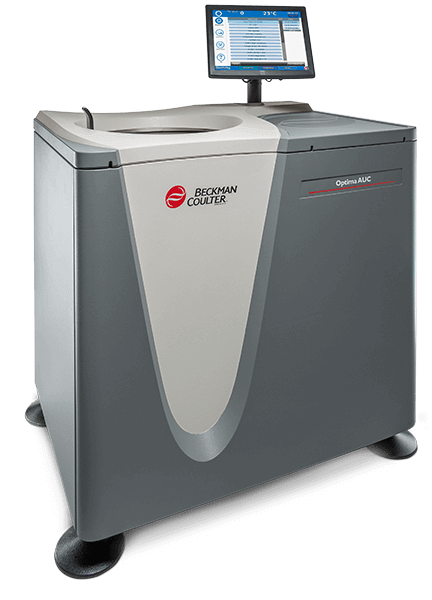

Beckman Coulter - Optima AUC - Analytical Ultracentrifuge

Product Range
SKU | Name |
---|---|
C00709 | Beckman Coulter - C00709 - Optima AUC Absorbance Bundle with An 50 Ti Rotor Analytical Ultracentrifuge |
C00707 | Beckman Coulter - C00707 - Optima AUC Absorbance Bundle with An 60 Ti Rotor Analytical Ultracentrifuge |
B86437 | Beckman Coulter - B86437 - Optima AUC Absorbance, Interference Analytical Ultracentrifuge |
C00710 | Beckman Coulter - C00710 - Optima AUC Absorbance, Interference Bundle with An 50 Ti Rotor Analytical Ultracentrifuge |
C00708 | Beckman Coulter - C00708 - Optima AUC Absorbance, Interference Bundle with An 60 Ti Rotor Analytical Ultracentrifuge |
Features
The Optima AUC can be fitted with both or either an absorbance module (ABS) to monitor biomolecules that have absorptive signatures between 170 and 800 nm, and a Rayleigh Interference module (INT) to monitor sedimentation differences between the sample and reference solutions. This allows for the characterization of particles made up of proteins and nucleic acids and those without absorptive properties such as carbohydrates and lipids. To learn more about analytical ultracentrifugation, visit the dedicated section.
Specifications
Overview
-
Nominal Height:49.5" (125.73 cm)
-
Nominal Width:37" (93.98 cm)
-
Nominal Length:26.8" (68.07 cm)
Product Data
-
Maximum Speed:60,000 RPM
-
Acceleration:5-400 rpm/second (above 500 rpm), 400 max acceleration
-
Timed Run:1 to 999 hrs, 59 mins (including hold runs)
-
Drive Type Cooling:Quiet drive technology / air cooled
-
Temperature Range(s):7-40°C (1°C increments at > 25-30°C ambient temp), 4-40°C (1°C increments at <25°C ambient temp)
-
Zonal Capability:False
-
Vacuum and Pump:Below 5 microns (0.7 Pa)
-
Operating System(s):LINUX
-
Display:15.3" high-resolution color touchscreen
-
Material(s):Coated Polycarbonate, Polyurethane, Kydex Plastic, Polyurethane Painted Aluminum
-
Finish - Rotor Pad:Coated polycarbonate
-
Finish - Top & Front Surfaces:Polyurethane
-
Finish - Other Surfaces:Kydex plastic & polyurethane painted aluminum
-
Weight:508.5 kg (1121 lbs)
-
Clearances:5.1 cm (sides) & 15.2 cm (rear)
