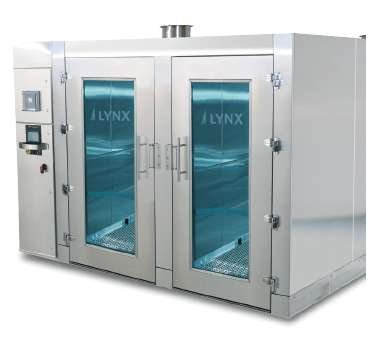

Spire LYNX - 455LX - Cage & Rack Washer

Spire LYNX - 455LX - Cage & Rack Washer

Spire LYNX - 455LX - Cage & Rack Washer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Made in Wilson, NY. High-performance and twice the capacity! Heavy duty, large capacity. Hydro-spray washing. Simple to use. Minimal maintenance. Highest cleanability of caging, bottles, racks, debris pans, and more. Meets “green” initiatives and high throughput demands. Uses non-proprietary parts on all equipment. Pit-mounting is standard.

Features

Standard Features



  • Pit Mounting
  • Dual Load Chambers
  • Heavy-duty Hinge Doors
  • Modular Construction
  • Knock-down Shipment
  • Oscillating Spray Delivery System
  • Personnel Safety Features
  • PLC Control System
  • Full Color HMI Touch Screen
  • 12 Configurable Cycles
  • Neutralization System
  • Automatic Self-cleaning Screen
  • Temperature Guarantee
  • Insulated Construction
  • Incoming Utility Gauges
  • Interior Illumination
  • SS Recirculation Piping and Components
  • Non-proprietary Parts



Optional Features



  • Pit or Floor Mounted
  • Pass-thru Unit
  • Right or Left Hand Services
  • LYNX OPTI-Wash™ Water Saving System
  • Re-usable Throwaway Alkaline and/or Acid Tank
  • Heated Rinse Tank
  • House Hot Water Heat Exchanger
  • Electric Heat System
  • Integral Data Collection System
  • LYNX Smart-Cool™ System
  • Drain Discharge Cooling - Injected/Tank
  • Automatic Damper
  • SS Exhaust Fan
  • Low Steam Pressure Package
  • Pass-thru Door Interlock System
  • Air Compressor
  • Printer
  • Seismic Tie Down
  • Detergent Dispensing Systems
  • pH Neutralization System
  • Feeder Bottle Washing System
  • Integrated Pan Wash System
  • Automatic Water Rack Flush System
  • Split Base for Special Entry
  • Port-view Door Window

Specifications

Overview

  • Nominal Height:
    104" (264.16 cm)
  • Nominal Width:
    147" (373.38 cm)
  • Nominal Length:
    196" (497.84 cm)
  • Internal Height:
    85" (215.9 cm)
  • Internal Width:
    46" (116.84 cm)
  • Internal Length:
    141" (358.14 cm)

Utilities

  • Electrical (E):
    3-60-208/480V, 22-32HP
  • Hot Water (HW):
    1.5" NPT, 35 PSI, 50 GPM @ 140° F ± 5° F (40 gallon sump capacity)
  • Cold Water (CW):
    1.5" NPT, 35 PSI, 100 GPM @ 50° F ± 5° F
  • Steam (S):
    2" NPT, 45-80 PSI, Dynamic ± 5 PSI, 1000-1200 #/Hr Flow Rate
  • Condensate (C):
    2" NPT
  • Air (A):
    0.5" NPT, 80-100 PSI, 4-6 CFM Flow Rate
  • Drain (D):
    12" x 12" Floor Sink with (2) 4" Floor Drain (minimum), 180 GPM Flow Rate
  • Vent (V):
    12" ID Duct, 750 CFM, Saturated Vapor @ 190° F
  • Opt. Door Widths:
    36", 48", 54"
  • Opt. Door Heights:
    88", 93", 96"
  • Opt. Chamber Lengths:
    All 85"- 188"+
