Made in Wilson, NY. High performance within a simplistic design. Heavy duty, large capacity. Hydro spray washing. Minimal maintenance. Highest cleanability of caging, bottles, racks, debris pans, and more. Meet today’s “green” initiatives and high throughput demands. The unit uses non proprietary parts. Pit mounting is standard (formerly SCIENTEK SW6700W).

Features

Standard Features



  • Heavy-duty Hinge Door
  • Modular Construction
  • Knock-down Shipment
  • Rotating Spray Delivery System
  • Personnel Safety Features
  • PLC Control System with Full Color HMI
  • Re-usable Throwaway Alkaline Tank
  • House Hot Water Heat Exchanger
  • 10 Configurable Cycles
  • Automatic Self-cleaning Screen
  • Temperature Guarantee
  • Insulated Construction
  • Incoming Utility Gauges
  • Interior Illumination
  • SS Recirculation Piping and Components
  • Non-proprietary Parts



Construction

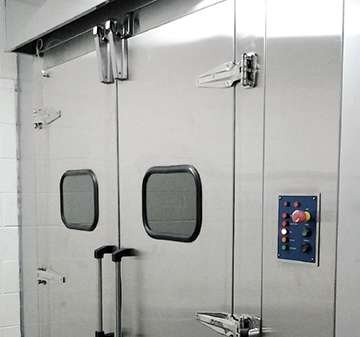

LYNX 450RS Cage and Rack Washers are provided with heavy-duty stainless steel doors with port view glass windows. Recirculated water is heated by a stainless steel steam coil to achieve guaranteed treatment temperatures. Stainless steel 20 HP treatment pump with a direct read pump pressure gauge.



Optional Features



  • Shallow Base Unit (6”)
  • Pit or Floor Mounted
  • Pass-thru Unit
  • Right or Left Hand Services
  • Integral Data Collection System
  • Drain Discharge Cooling
  • Automatic Damper
  • SS Exhaust Fan
  • Low Steam Pressure Package
  • Pass-thru Door Interlock System
  • Air Compressor
  • Printer
  • Seismic Tie Down
  • Detergent Dispensing Systems
  • pH Neutralization System
  • Feeder Bottle Washing System
  • Automatic Water Rack Flush System
  • Split Base for Special Entry
  • Utility Enclosure Panels
  • Inclined Floor Grating
  • Barrier Wall Flange(s)

Specifications

Overview

  • Nominal Height:
    95" (241.3 cm)
  • Nominal Width:
    83.25" (211.46 cm)
  • Nominal Length:
    132" (335.28 cm)
  • Internal Height:
    88" (223.52 cm)
  • Internal Width:
    68" (172.72 cm)
  • Internal Length:
    128" (325.12 cm)

Utilities

  • Electrical (E):
    3-60-208/480/600V, 23HP
  • Hot Water (HW):
    1" NPT, 35 PSI, 25 GPM @ 140° F ± 5° F (125 gallon sump capacity)
  • Cold Water (CW):
    1" NPT, 35 PSI, 25 GPM @ 50° F ± 5° F
  • Steam (S):
    1.5" NPT, 40-60 PSI, Dynamic ± 5 PSI, 1000 #/Hr Flow Rate
  • Condensate (C):
    1" NPT + 0.75" NPT
  • Air (A):
    0.25" NPT, 80-100 PSI, 1-2 CFM Flow Rate
  • Drain (D):
    12" x 12" Floor Sink with 4" Floor Drain (minimum), 530 GPM Flow Rate
  • Vent (V):
    8" x 22" Duct, Saturated Vapor @ 190° F , 1 DC (1200 CFM) + 1 IDC (500 CFM)
  • Opt. Door Widths:
    62", 74", 84
  • Opt. Door Heights:
    90", 93", 96"
  • Opt. Chamber Lengths:
    109", 140", 150", 160", 165"
