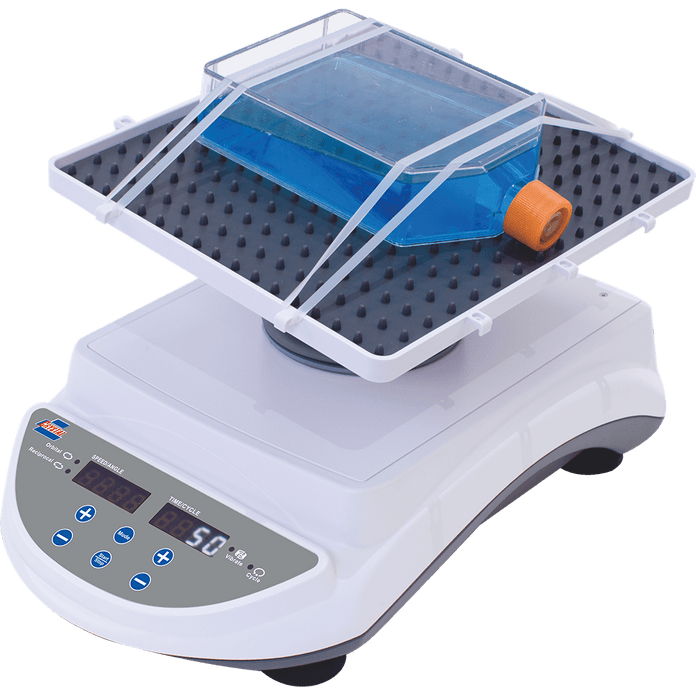

Crystal Industries - NS-13UA - Multi Modes Nutating Mixer
Features
The 3D Nutating Mixers are designed for sample mixing with the combined motions of an Orbital Shaker and 2D Platform Rocker. These units provide a gentle yet thorough mixing of the samples. The digital models come with adjustable speed and timer features. These mixers are well suited for many routine laboratory applications that require thorough sample mixing.
- Tilt angles are pre-set for 3D motion
- All models come with a dimpled non-skid mat
- Compact and economic choice for 3D mixing (Models NS-01A and NS-10A)
- Variable speed from 2-60 rpm (Models NS-11UA and NS-12UA)
- Continuous or time set operation with an automatic switch-off feature (Models NS-11UA and NS-12UA)
- Audible and visual alarm in time mode feature (Models NS-11UA and NS-12UA)
Specifications
Overview
-
Nominal Height:8.9" (22.61 cm)
-
Nominal Width:17.3" (43.94 cm)
-
Nominal Length:17.3" (43.94 cm)
Technical Data
-
Speed:5~100 RPM
-
Speed Accuracy:1 RPM
-
Tilt Angle:7°
-
Timer:0~99 hr 59 min
-
Platform Dimensions:307 x 267 mm (12.1 x 10.5 inch)
-
Max Load:1 kg (2.2 lb)
-
Display:LED
-
Accessories Included in Standard Packaging:NSA02 (Dimpled Rubber Mat) and 6 PCS of NSA01 (Rubber Strips)
-
Ambient Temperature:5°C~40°C
-
Ambient Relative Humidity:≤80%
-
Power Supply:AC110V, 60Hz
-
Max Power:5W
-
Net Weight:6.7 kg (14.7 lb)
-
Protection Level:IP21
-
Certifications:cCSAus, CE, RoHS, WEEE
