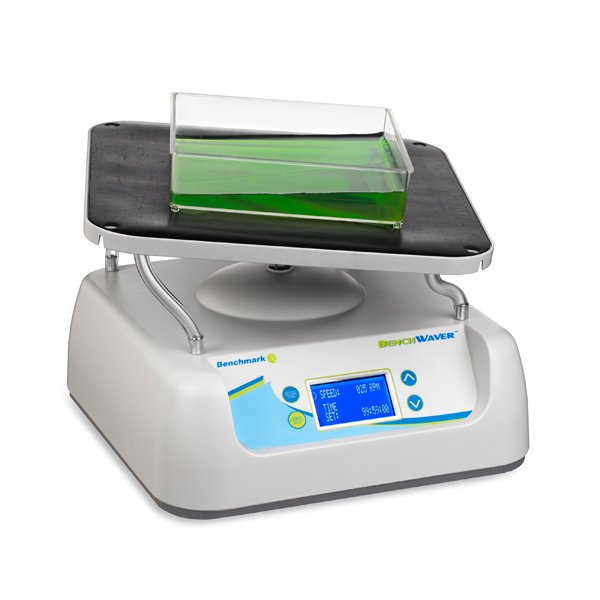

Benchmark Scientific - B3D5000 - BenchWaver™ 3D Rocker with 13.5x13" Flat Mat Platform (US Plug)

Features
The BenchWaver™ combines the basic rocking motion of traditional platform rockers with the circular motion of an orbital shaker. This combination is ideal for generating the optimum 3-dimensional "undulating" motion commonly preferred for molecular biology applications.
The tilt angle is instantly adjustable (no tools or disassembly required) from 0 to 10° and the mixing speed can be adjusted from 5 to 105 rpm, using the large, user-friendly LCD control panel. Combined control of both parameters (tilt and speed) makes the BenchWaver a versatile workhorse that can provide anything from gentle, slow moving waves to a rapid, more vigorous motion. Additionally, time of operation can be selected from 1 minute up to 99 hours or for continuous operation.
The large 13.5x13 inch platform is supplied complete with a non-slip, rubber mat. An optional stacking platform is available for users requiring additional mixing capacity.
BenchWaver is a reliable and versatile instrument and can be used in refrigerated or incubated environments from 2° to 60°C.
- Adjustable speed & tilt for a wide range of applications
- Large 13x13.5 in. work surface
- Insta-TILT™ technology for instant adjustment to the tilt angle
- Dual platform accessory doubles work surface
- Cold room and incubator safe
Specifications
Overview
-
Nominal Height:9.75" (24.77 cm)
-
Nominal Width:13" (33.02 cm)
-
Nominal Length:13.5" (34.29 cm)
Technical Data
-
Speed Range:Variable, 5 to 105 rpm
-
Tilt Angle:Variable, 0 to ±10°
-
Platform Size:13.5 x 13 in (34 x 33 cm)
-
Load Capacity:20 lbs (9 kg)
-
Operating Temp. Range:+4°C to +60°C
-
Weight:12 lbs (5.5 kg)
-
Electrical:115 or 230V 50-60Hz, 50W
-
Warranty:2 years
Downloads
-
BenchWaver™ 3D Rocker with Flat Mat BrochureDownload
