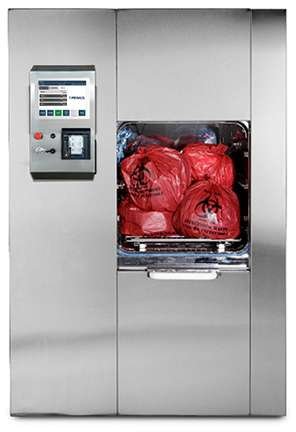

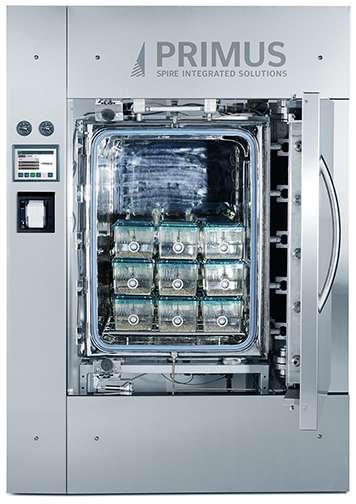

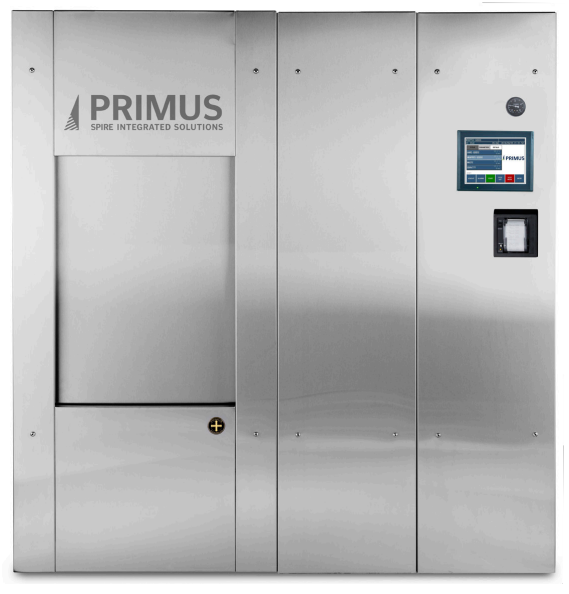

Spire PRIMUS - PSS11-I-MS-DD - Medium Laboratory Steam Sterilizers Double Door Model I

Features
PRIMUS® medium sterilizers come in multiple chamber configurations for your application. Designed for simplicity in operation and serviceability, these models are ideal for use in research laboratories, bio-containment environments, and animal care facilities.
Intelligent design focuses on ease of use, simplified diagnostics, and clear service access for maximum uptime.
- Vessel design features a stainless steel, fully-jacketed 316L chamber. The vessel is insulated and mounted on a steel frame, which offers adjustable feet on self-centering floor pads.

- Horizontally sliding doors are energy-efficient, safe, and operated by simple touchscreen activation

- Rectangular chamber eliminates wasted space and reduces high utility costs common to cylindrical or elliptical designs

- All chambers are polished to a mirror finish of 10 Ra for enhanced corrosion resistance and optimal stainless steel performance

- Non-proprietary parts allow for immediate diagnostics and easy replacement of worn components

- Gravity, vacuum, and liquid cycles come standard with additional test cycles for process challenge, low temperature and effluent decontamination cycles available

- Configurable controls adapt to meet a variety of applications

- Water conservation system (PRI-Saver®) offers up to 95% water savings

- Predictive maintenance functionality via PLC-based controls increases uptime by monitoring critical components

- Ease of service designed into the system and supported by PRIMUS Authorized Service Agents

Specifications
Overview
-
							Nominal Height:86" (218.44 cm)
 -
							Nominal Width:97" (246.38 cm)
 -
							Nominal Length:103.38" (262.59 cm)
 -
							Capacity:74

Dimensions Chart Double Door
-
									Chamber Size (in/mm):36 x 42 x 84 / 914.4 x 1066.8 x 2133.6
 -
									Knockdown Width:52.06 / 1322.3
 -
									Wall Opening Width:100.00 / 2540
 -
									Wall Opening Height:85.00 / 2159
 -
									Wall Opening Length:98.19 / 2494
 -
									Fascia Width:102.00 / 2590.8
 -
									Fascia Height:86.00 / 2184.4
 -
									Floor to Chamber:24.00 / 609.6

Downloads
-
										Medium Steam Sterilizers BrochureDownload
