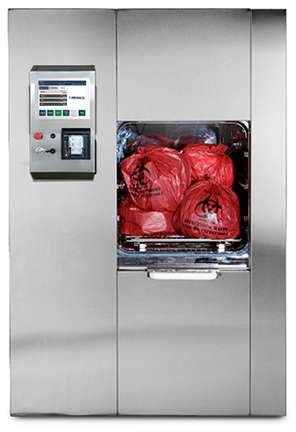

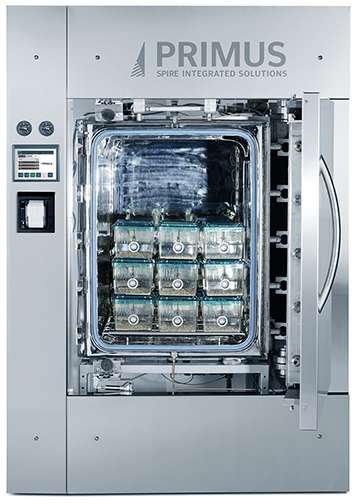

Spire PRIMUS - PSS11-P-MS-DD - Large Steam Laboratory Sterilizers Double Door Model P
Features
- Vessel Design features a stainless steel, fully-jacketed 316L chamber. The vessel is insulated and mounted on a steel frame, which offers adjustable feet on self-centering floor pads.
- Horizontally Sliding Doors are energy-efficient, safe and operated by simple touch screen activation.
- Rectangular Chamber eliminates wasted space and reduces high utility costs common to cylindrical or elliptical designs.
- All Chambers are polished to a mirror finish of <10 Ra. Surface finish can be just as critical in determining the corrosion resistance of austenitic stainless steel as the grade. Poor quality finishes can lead to disappointing performance of stainless steel. A highly polished surface will give the best performance in any specified environment.
- Non-Proprietary Parts are a hallmark of PRIMUS Steam Sterilizers allowing for immediate diagnostic and replacement of worn components.
- Gravity, Vacuum, and Liquid Cycles come standard on all models. Multiple test cycles are included for process challenge. Low temperature cycles and effluent decontamination are available for specific applications.
- Configurable Controls are adaptable to meet a variety of applications.
- Water Conservation is available with our PRISaver® system that offers up to 95% water savings.
- Predictive Maintenance functionality included in our PLC based controls allows for increased uptime through the proactive monitoring of critical components.
- Ease of Service is built into the design and delivered by PRIMUS Authorized Service Agents.
Specifications
Overview
-
Nominal Height:137" (347.98 cm)
-
Nominal Width:73.81" (187.48 cm)
-
Nominal Length:109.75" (278.77 cm)
-
Capacity:210
Dimensions Chart Double Door
-
Chamber Size (in):49W x 86H x 86D
-
Wall Opening (in):138W x 124H x 104.12L
-
Fascia Width (in):140
-
Fascia Height (in):125
Downloads
-
2026 PRIMUS Large Sterilizer Data SheetDownload
