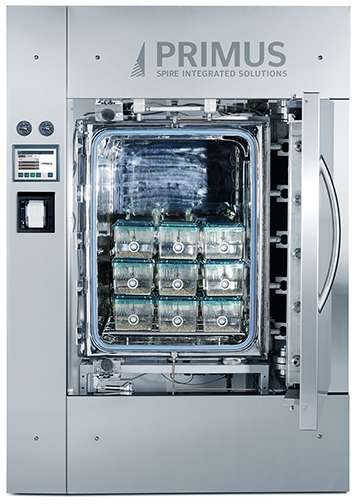

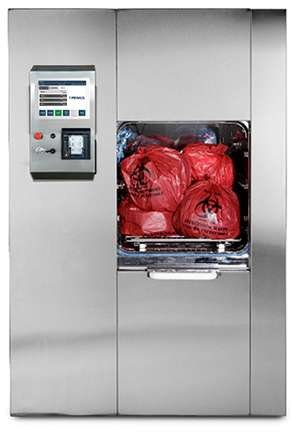

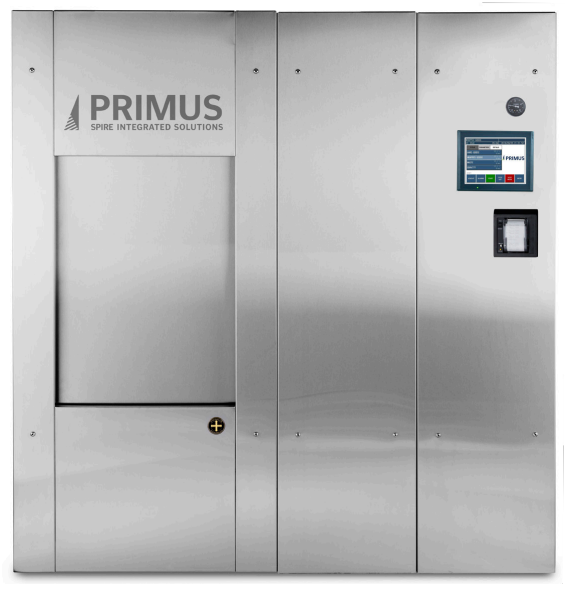

Spire PRIMUS - PSS11-G-ME-DD - Medium Laboratory Boiler Sterilizers Double Door Model G

Features
PRIMUS® medium sterilizers come in multiple chamber configurations for your application. Designed for simplicity in operation and serviceability, these models are ideal for use in research laboratories, bio-containment environments, and animal care facilities.
Intelligent design focuses on ease of use, simplified diagnostics, and clear service access for maximum uptime.
- Vessel design features a stainless steel, fully-jacketed 316L chamber. The vessel is insulated and mounted on a steel frame, which offers adjustable feet on self-centering floor pads.
- Horizontally sliding doors are energy-efficient, safe, and operated by simple touchscreen activation
- Rectangular chamber eliminates wasted space and reduces high utility costs common to cylindrical or elliptical designs
- All chambers are polished to a mirror finish of 10 Ra for enhanced corrosion resistance and optimal stainless steel performance
- Non-proprietary parts allow for immediate diagnostics and easy replacement of worn components
- Gravity, vacuum, and liquid cycles come standard with additional test cycles for process challenge, low temperature and effluent decontamination cycles available
- Configurable controls adapt to meet a variety of applications
- Water conservation system (PRI-Saver®) offers up to 95% water savings
- Predictive maintenance functionality via PLC-based controls increases uptime by monitoring critical components
- Ease of service designed into the system and supported by PRIMUS Authorized Service Agents
Specifications
Overview
-
Nominal Height:81" (205.74 cm)
-
Nominal Width:41" (104.14 cm)
-
Nominal Length:79.5" (201.93 cm)
-
Capacity:33
Dimensions Chart Double Door
-
Chamber Size (in/mm):26 x 36 x 60 / 660.4 x 914.4 x 1524
-
Knockdown Width:37.75 / 958.9
-
Wall Opening Width:76.00 / 1930.4
-
Wall Opening Height:80.00 / 2032.0
-
Wall Opening Length:71.90 / 1826.26
-
Fascia Width:78.00 / 1984.2
-
Fascia Height:81.00 / 2057.4
-
Floor to Chamber:24.00 / 609.6
