Technical Data

• Electrical:
  115V

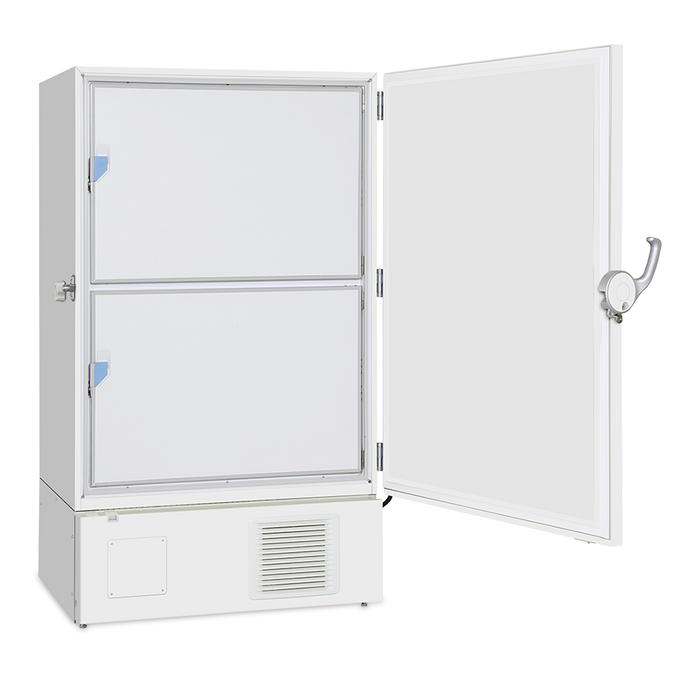

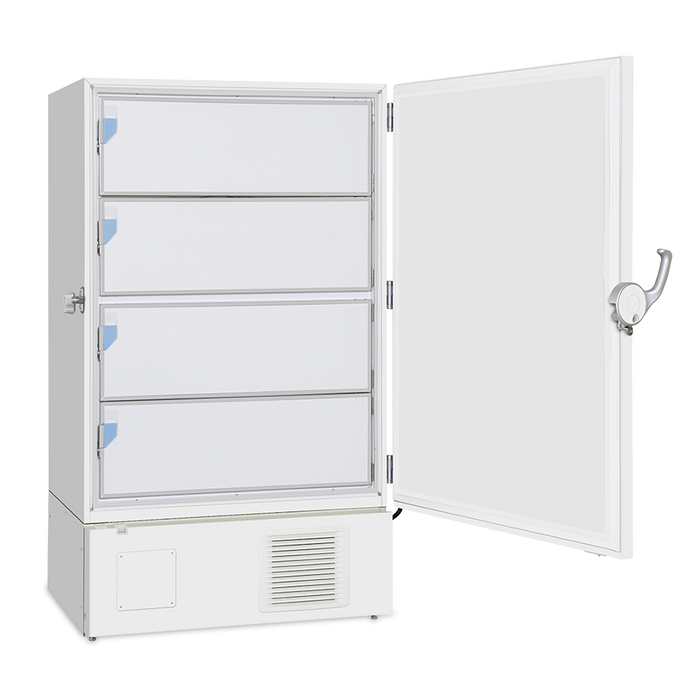

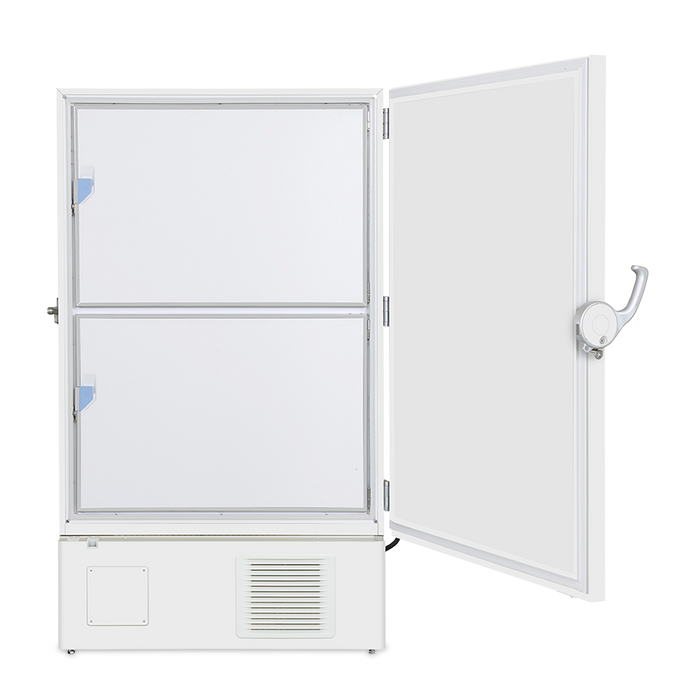

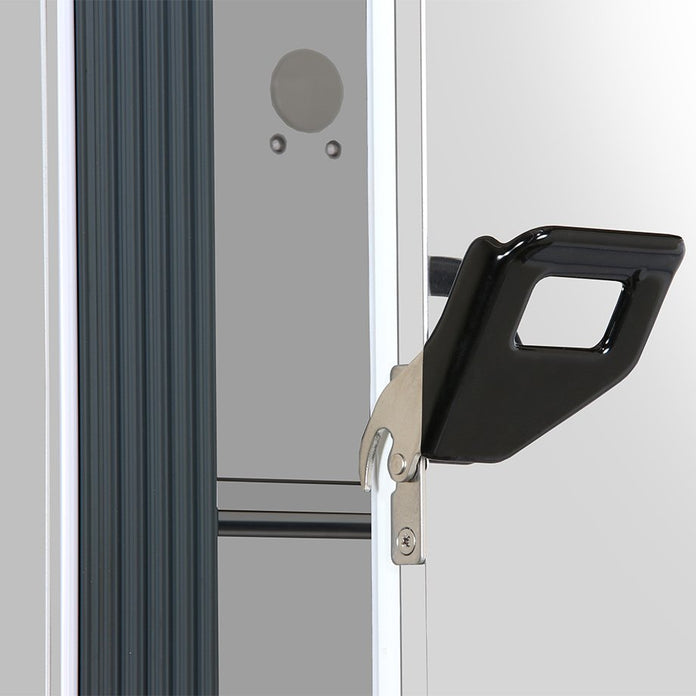

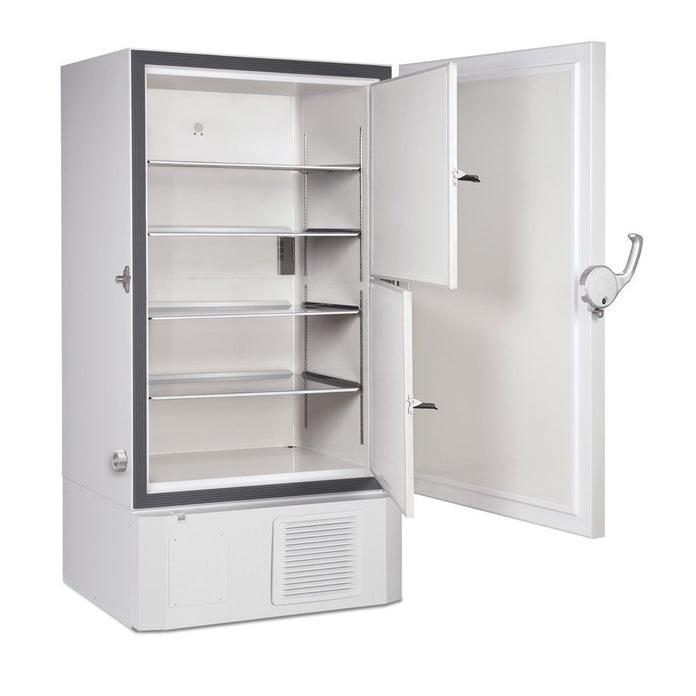

• Internal Doors:

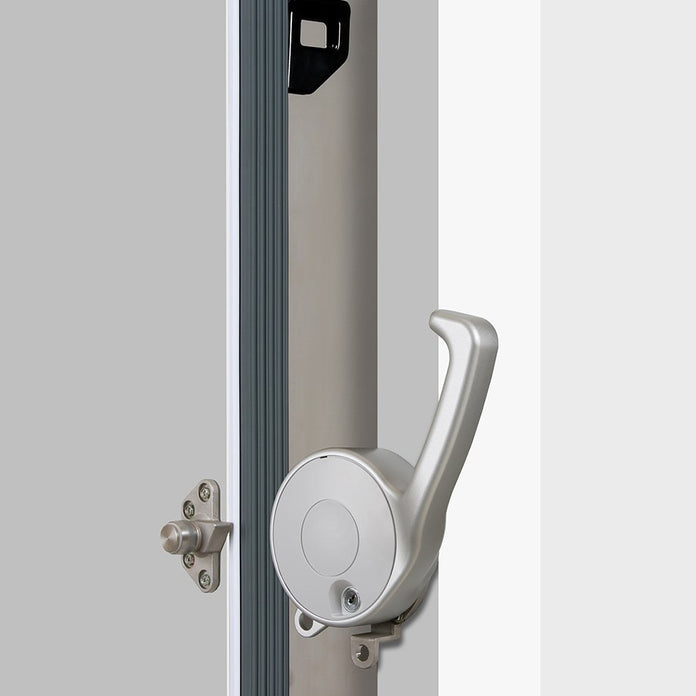

  2 (insulated, ABS, stainless steel frames, positive latches)
• Insulation:
  Foamed-in-place and VIP Plus vacuum insulated panels 3.1 in (80 mm)

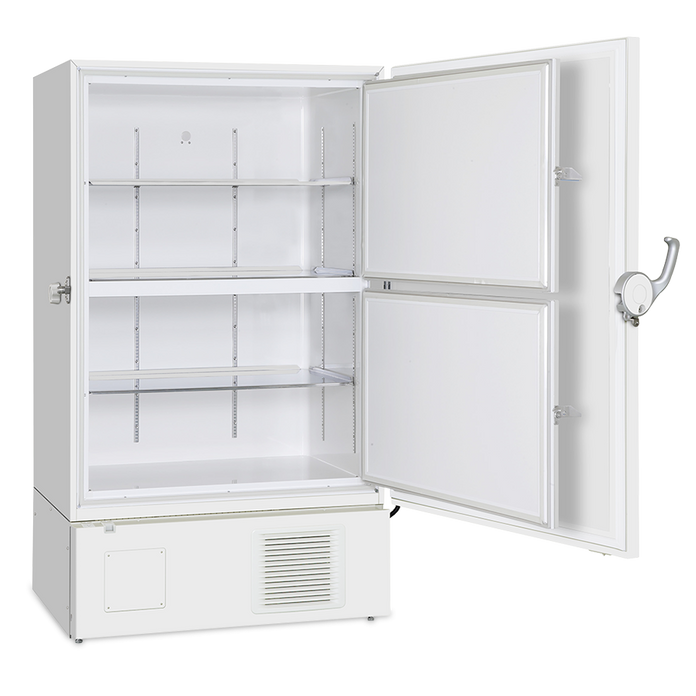

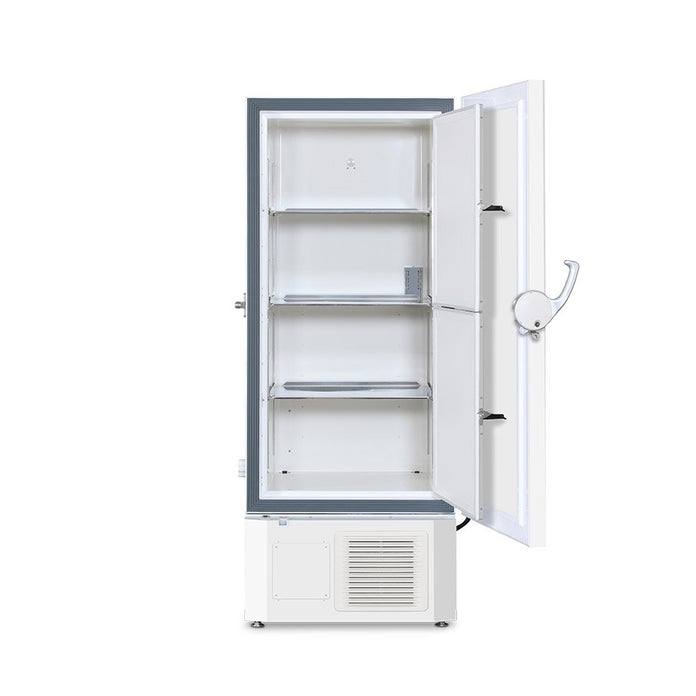

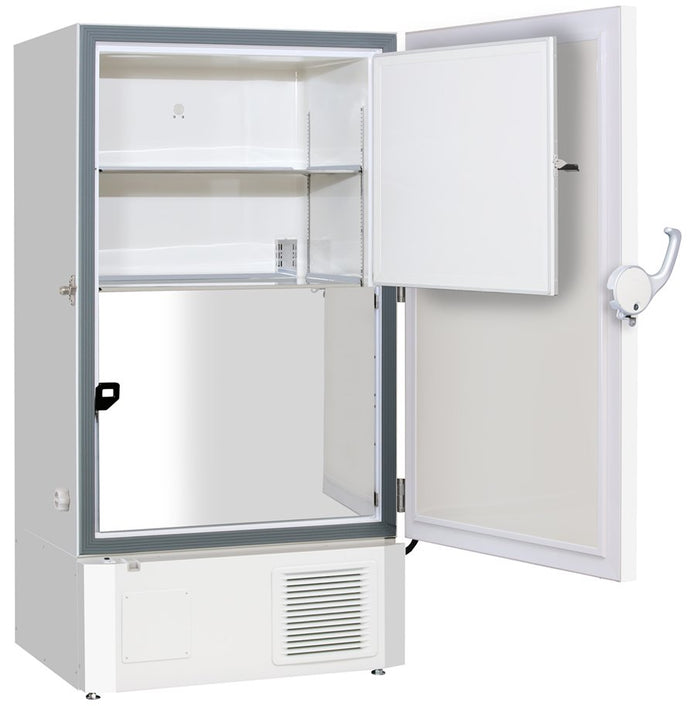

• Shelves:
  3 shelves (adjustable)
• Shelves - Inner dimensions:
  24.2" W x 21.0" D (615 x 534 mm)
• Shelves - Load:
  110 lbs. (50 kg) per shelf
• Access Port:
  3, upper back wall (back-up system), bottom left (recorder sensor), bottom right (access), Inner diameter 0.6 in (17 mm)
• Compressor:
  (2) 750 W, variable speed
• Refrigerant:
  High-stage R-290 natural refrigerant, Low-stage R-170 natural refrigerant
• Temperature Control Range:
  -50°C to -86°C in 1° increments
• Alarms:
  Power failure, high temperature, low temperature, sensor failure, filter alarm
• Alarms:
  Door ajar, remote alarm, battery life, fan motor life, fan lock, cooling circuit abnormality
• Cooling Performance:
  -86°C center of chamber

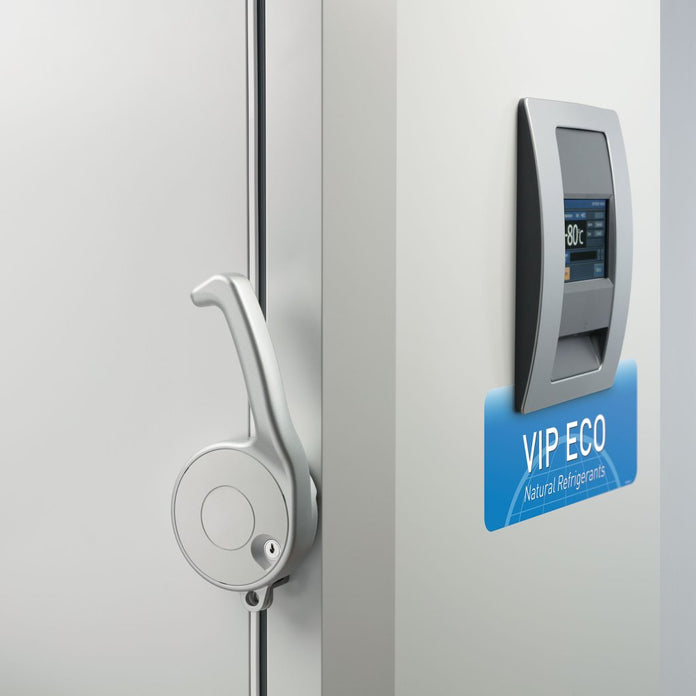

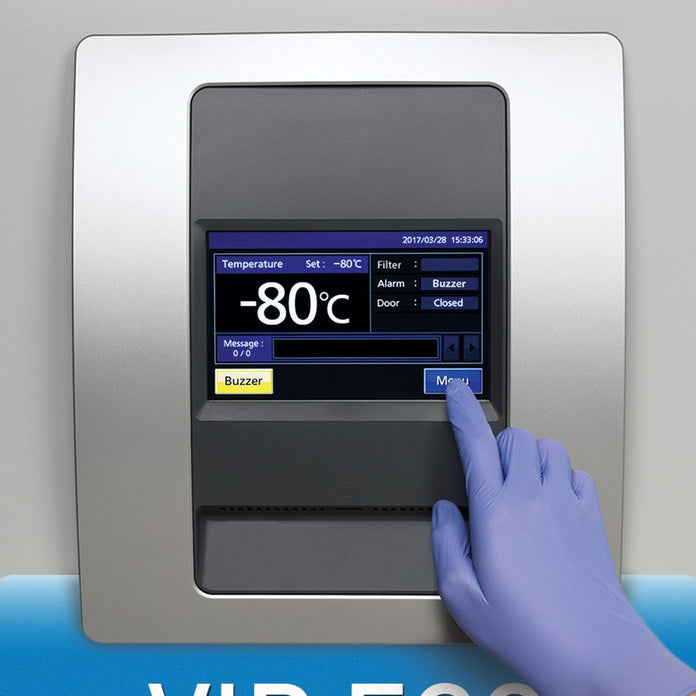

• Temperature Control System:

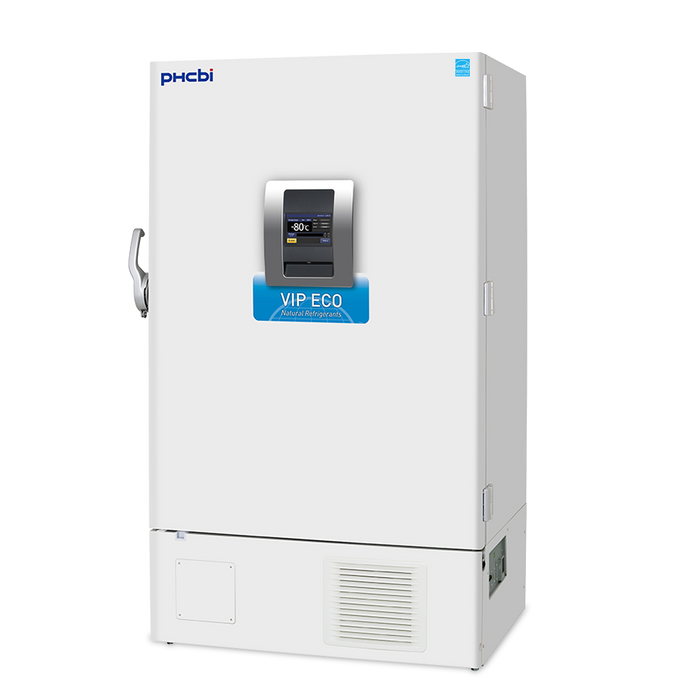

  Microprocessor, LCD color touchscreen data entry, password protected
• Data Management:
  Optional with LabAlert® Monitoring System
• Sound Level:
  46 dB[A] (background noise 20 dB[A])
