Technical Data

• Electrical:
  220V

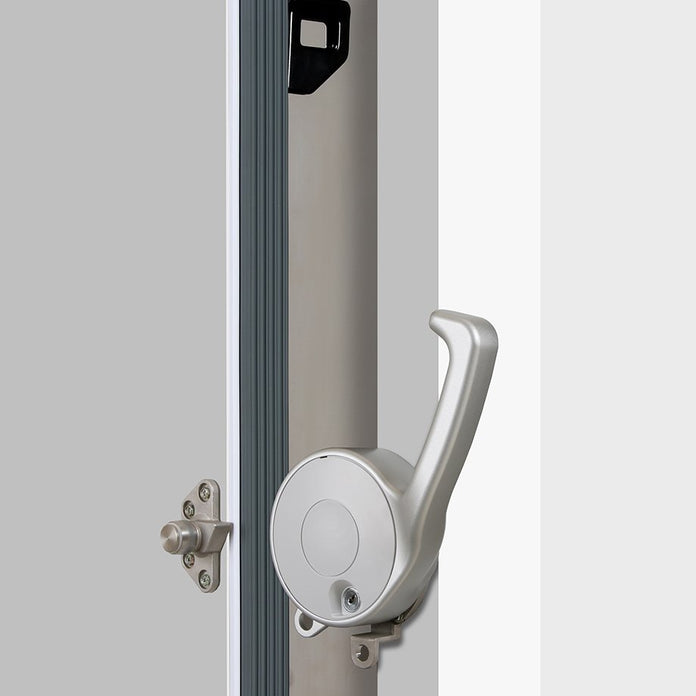

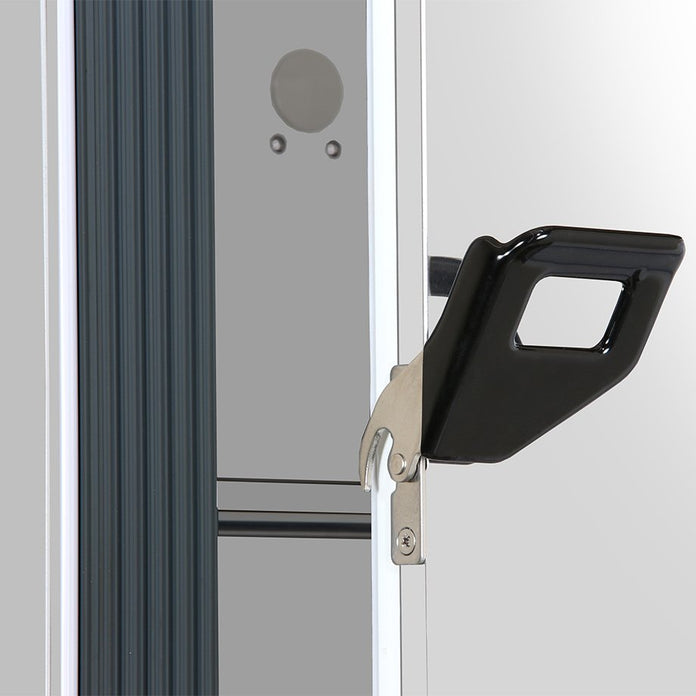

• Internal Doors:
  2 (insulated, ABS, stainless steel frames, positive latches)
• Insulation:
  Foamed-in-place and VIP Plus vacuum insulated panels

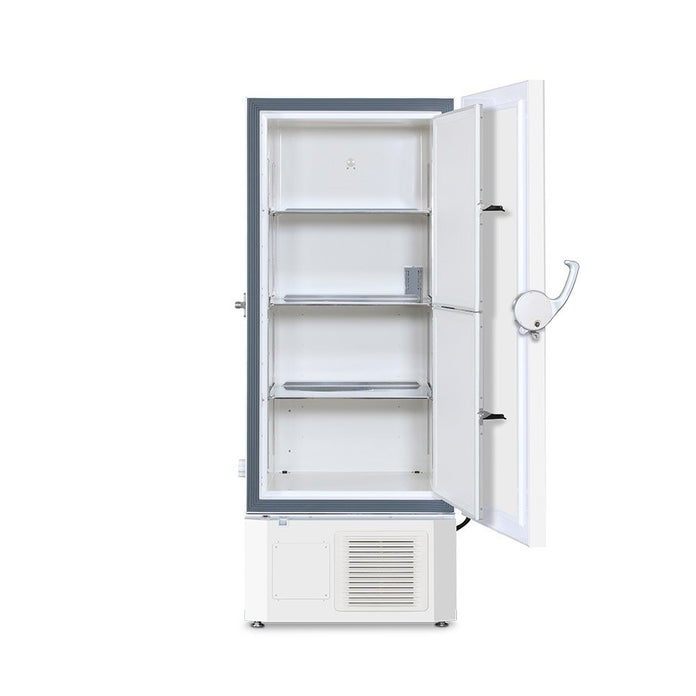

• Shelves:
  3 shelves (adjustable)
• Shelves - Inner Dimensions:
  24.2" W x 21.0" D (615 x 534 mm)
• Shelves-Load:
  110 lbs. (50 kg) per shelf
• Access Port:
  3, upper back wall (back-up system), bottom left (recorder sensor), bottom right (access)
• Access Port - Inner diameter:
  0.6 in (17 mm)
• Net Weight:
  542 lbs (246 kg)
• Compressor:
  (2) 750 W, variable speed
• Refrigerant:
  High-stage R-290 natural refrigerant, Low-stage R-170 natural refrigerant
• Temperature Control Range:
  -40°C to -86°C in 1° increments
• Alarms:
  Power failure, high temperature, low temperature, sensor failure, filter alarm
• Alarms:
  Door ajar, remote alarm, battery life, fan motor life, fan lock, cooling circuit abnormality
• Cooling Performance:
  -86°C center of chamber

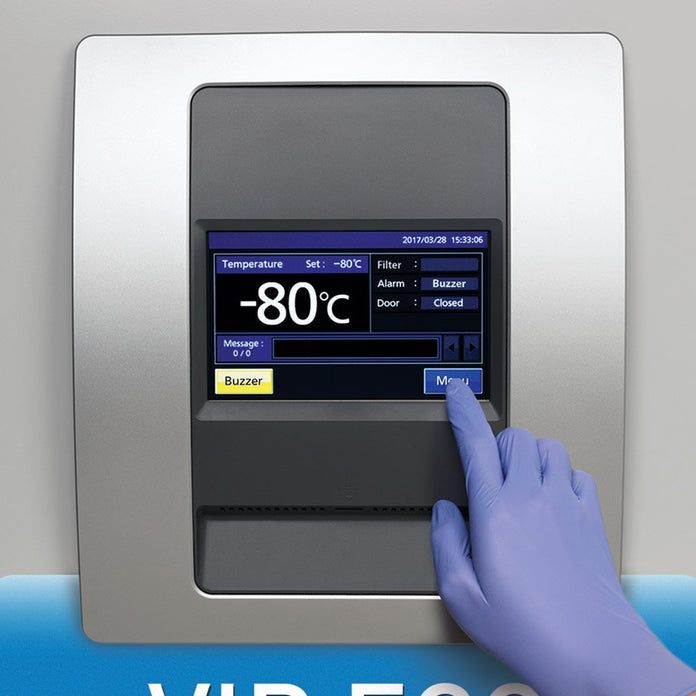

• Temperature Control System:
  Microprocessor, LCD color touchscreen data entry, password protected
• Area Footprint:
  7.49 ft2 (0.70 m2)
• Data Management:
  Optional with LabAlert® Monitoring System
• Sound Level:
  46 dB[A] (background noise 20 dB[A])
• Storage (Boxes) For 2"/51 mm Fiberboard Boxes:
  384
• Storage (Racks) For 2"/51 mm Fiberboard Boxes:
  16
• Storage (Boxes) For 3"/76 mm Fiberboard Boxes:
  256
• Storage (Racks) For 3"/76 mm Fiberboard Boxes:
  16
• Energy Star Certified:
  ENERGY STAR Unique ID 2318826
