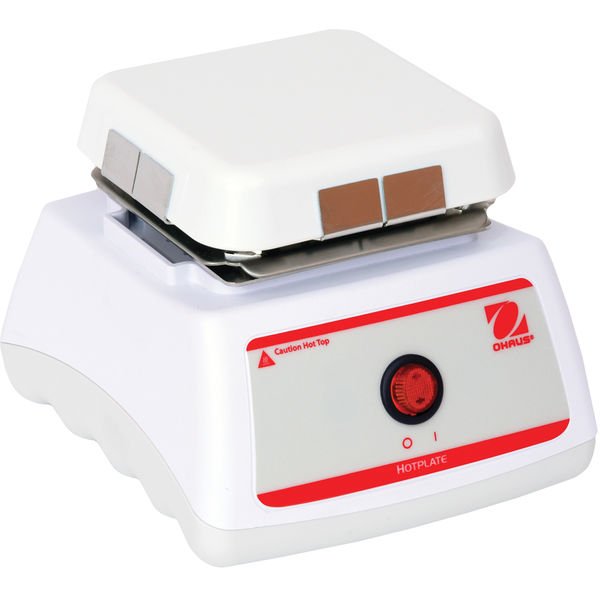

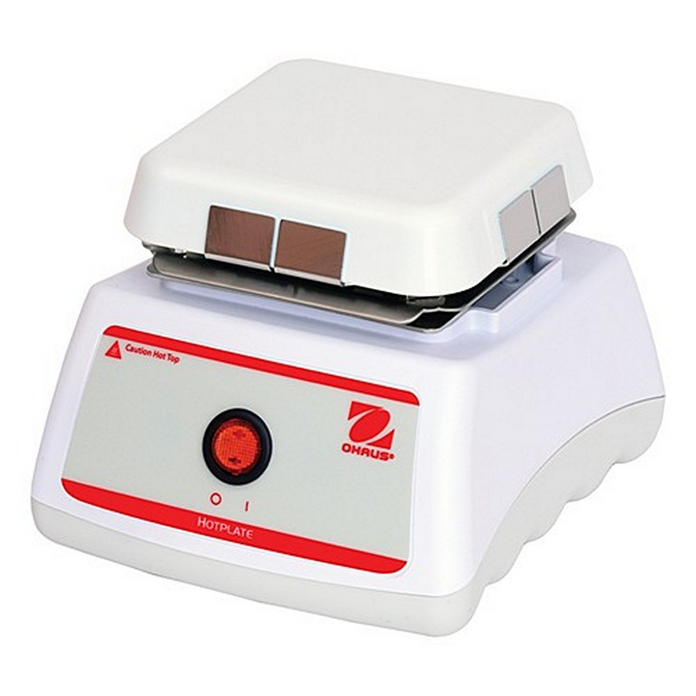

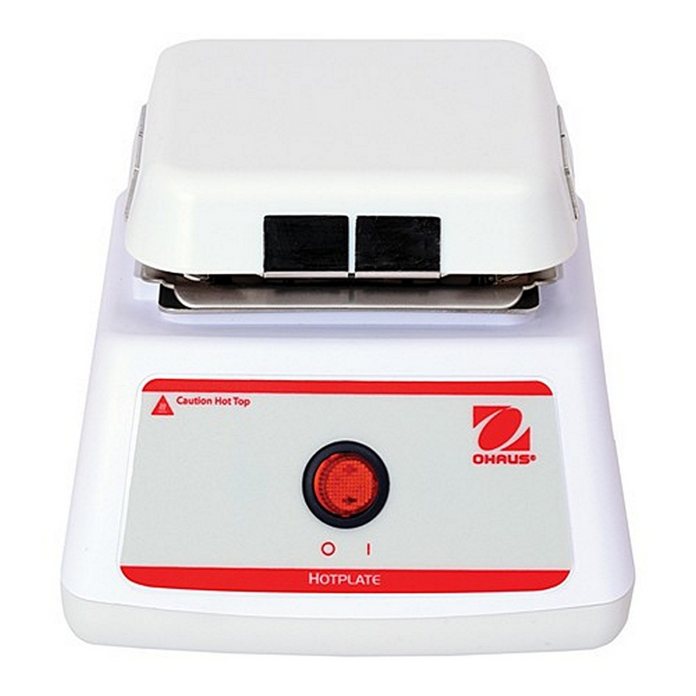

Ohaus - 30392031 - Hotplate, Mini, Fixed, HSMNHP4CFT, US

Features
Rugged OHAUS Mini Hotplates and Stirrers can heat and stir up to 1000 ml of water on the 4 x 4 in. (102 x 102 mm) ceramic top plate surface. These units are ideal for educational and other lab environments that require simple, every-day heating and stirring. All models feature a built-in support rod holder with a locking knob, which accepts the optional support rod kit. Stirring models include 1.5 in. (38 mm) PTFE coated stir bar.

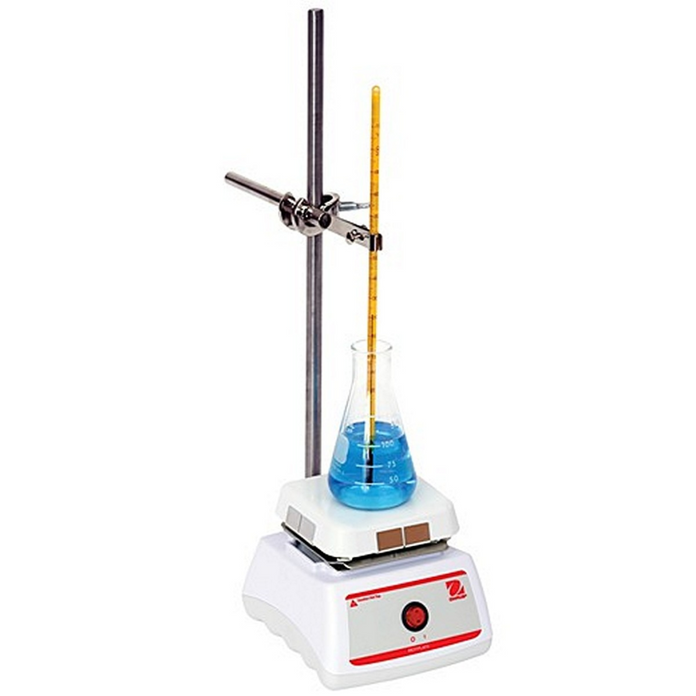

Designed with ease of use in mind, all of our mini-hotplate stirrer models feature an easy-to-clean, chemical-resistant ceramic top plate with a reflective white surface. Our mini hotplate stirrer housing is constructed of a heat-resistant polymer that's not only cool to the touch, but also chemical-resistant. All units are equipped with a built-in support rod holder with a locking knob, which accepts the optional support rod kit.
- Applications: Boiling Water, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples
- Display: N/A
- Operation: Detachable 3-wire cord and plug (included)
- Communication: N/A
- Construction: Valox housing, basic control knobs, 1.5 inch (3.8 cm) stir bar (included with Stirring models), On/Off toggle switch (Fixed Temperature models)
- Design Features: N/A
Specifications
Overview
-
Nominal Height:5" (12.7 cm)
-
Nominal Width:6" (15.24 cm)
-
Nominal Length:7.9" (20.07 cm)
Technical Data
-
Function:Heating
-
Capacity:1000 mL
-
Plate Construction:Ceramic
-
Plate Size:4 in x 4 in (10.2 cm x 10.2 cm)
-
Temp. Range:500°C
-
Control:Analog
-
Net Weight:4 lb (1.8 kg)
-
Power:120V, 1.8A, 50/60Hz
-
Power Consumption:200 W
-
Safety Certification:TUV
-
Working Environment:41°F - 104°F, 80% RH, Non-condensing (5°C - 40°C, 80% RH, Non-condensing)
