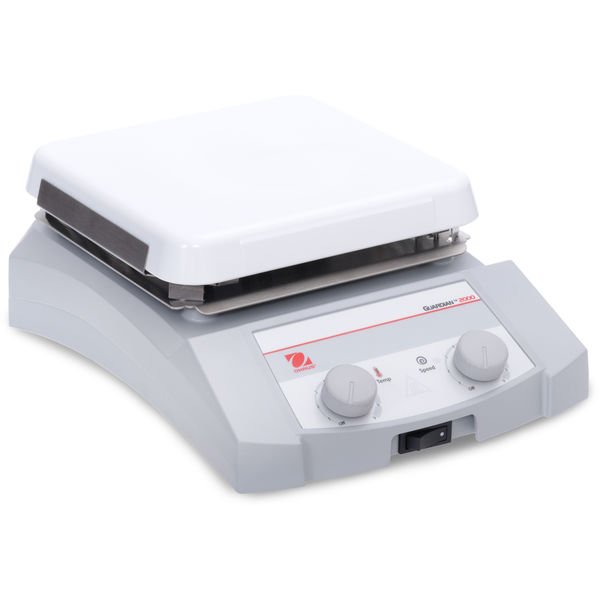

Ohaus - 30680258 - Guardian™ 2000 Hotplates and Stirrer e-G21HS07C 120V60Hz AM

Ohaus - 30680258 - Guardian™ 2000 Hotplates and Stirrer e-G21HS07C 120V60Hz AM
Ohaus - 30680258 - Guardian™ 2000 Hotplates and Stirrer e-G21HS07C 120V60Hz AM

Ohaus - 30680258 - Guardian™ 2000 Hotplates and Stirrer e-G21HS07C 120V60Hz AM

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Rugged and Reliable Analog Hotplates and Stirrers for General Purpose Heating and Stirring.

Features

Dependable OHAUS Guardian 2000(TM) Hotplates and Stirrers are ideal for education and other lab environments that require affordable, everyday fast heating and reliable stirring up to 15L. All three sizes offer simple knob control to easily adjust the heating and stirring functions. The durable housing includes a built-in support rod holder which accepts the optional support rod. Stirring models include PTFE coated stir bars.



Powerful stirring and fast heating at an economical price. Safely heat up to 500°C and stir up to 15L with easy to use knob control for simple and reliable everyday heating and stirring in the lab. Designed to last: The rugged metal housing has a spill resistant design for a long lifetime in the lab under harsh conditions. The smooth, chemical-resistant ceramic top plate is perfect for easy cleanup. Safety is of utmost importance, and the prominent hot top indicator light illuminates when the heater is above 40°C, keeping the end user safe during all heating applications.



Applications



Boiling Liquids, Basic Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples.



Display

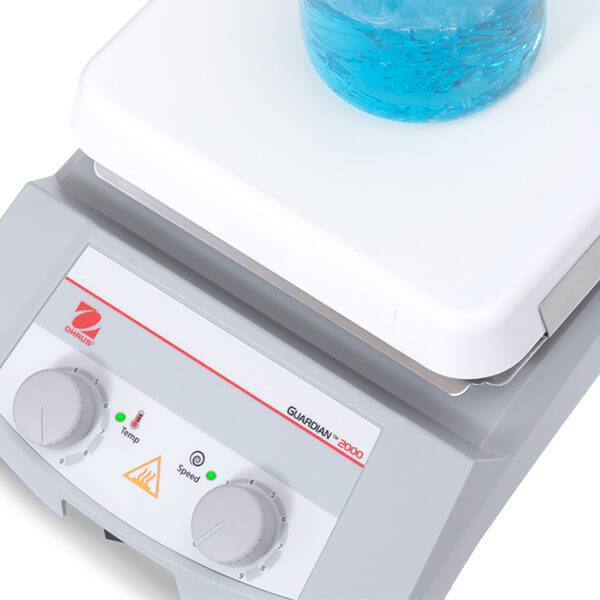

Prominent hot top indicator light, green indicator lights when unit is heating and stirring.



Operation



Simple knob control, stirring up to 1600 rpm, temperature up to 500°C (ceramic top) or 380°C (ceramic coated stainless steel top), power cord (included), stirring models include PTFE coated stir bar.



Construction



Durable metal housing, PET front panel, control knobs, ON/OFF switch for heater disconnect, built in support rod holder, easy to clean resin, ceramic or ceramic coated stainless steel tops.



Design Features



Hot top indicator light to protect user, green indicator lights illuminate when unit is heating and stirring.



Watch the video

Specifications

Overview

  • Nominal Height:
    4.4" (11.18 cm)
  • Nominal Width:
    8.8" (22.35 cm)
  • Nominal Length:
    12.5" (31.75 cm)

Technical Data

  • Function:
    Heating and Stirring
  • Capacity:
    15 L
  • Plate Construction:
    Ceramic
  • Plate Size:
    7 in x 7 in (178 mm x 178 mm) (LxW)
  • Temp. Range:
    70°C - 500°C
  • Control:
    Analog
  • Power Consumption:
    1,035 W
  • Working Environment:
    5°C - 40°C, 80% RH, Non-condensing (41°F - 104°F, 80% RH, Non-condensing)
  • Speed Range:
    200 to 1600 rpm
  • Net Weight:
    8.6 lb (3.9 kg)
  • Safety Certification:
    TUV
  • Power:
    100V-120V~ 10A 60Hz
