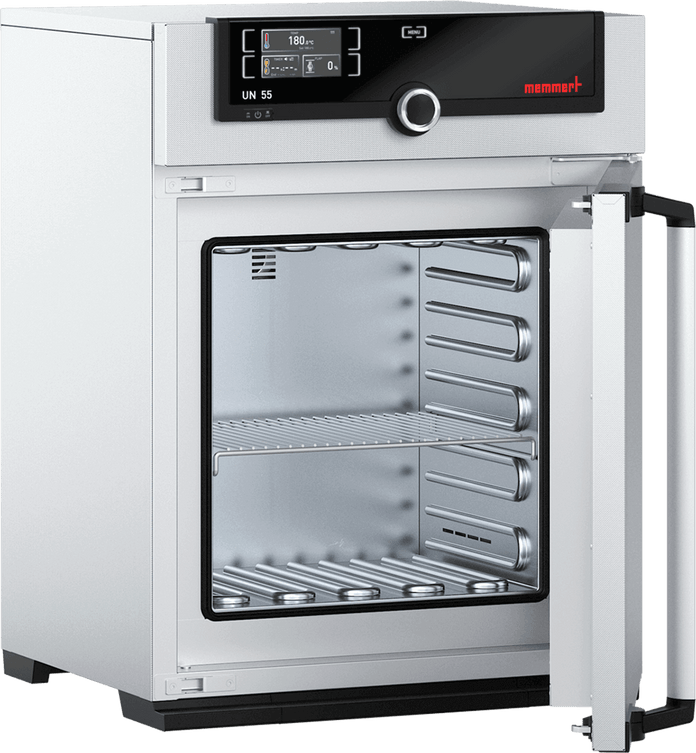

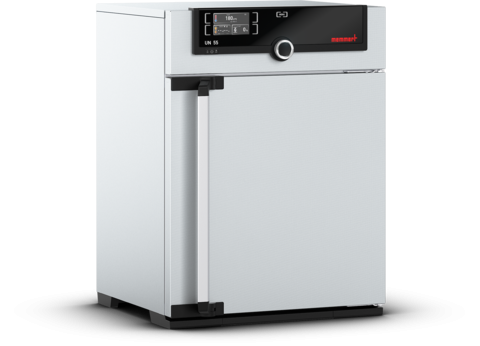

Memmert Natural Convection Oven UN 55, 115 volt, 50/60 Hz. Maximum temperature range to 300°C.

Features

The UN55 is a convection oven with an internal volume of 1.9 ft³ or 53 L. This universal lab oven is Memmert's classic appliance for temperature control in science, research and material tests in the industry.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • SingleDISPLAY: Control temperature, fan speed, program time & more.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.

Specifications

Overview

  • Nominal Height:
    30.9" (78.49 cm)
  • Nominal Width:
    23" (58.42 cm)
  • Nominal Length:
    20.2" (51.31 cm)
  • Internal Height:
    15.7" (39.88 cm)
  • Internal Width:
    15.7" (39.88 cm)
  • Internal Length:
    13" (33.02 cm)

Temperature - Humidity

  • Set Temperature Range in °C:
    Min. 5°C above ambient up to +300°C
  • Temperature:
    1 Pt100 sensor DIN class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    1.9 ft³ / 53 L
  • Stainless Steel Interior - Number of Stainless Steel Grids (Standard Equipment):
    1
  • Stainless Steel Interior - Maximum Number of Grids:
    4
  • Stainless Steel Interior - Maximum Loading per Grid:
    44 lb / 20 kg
  • Stainless Steel Interior - Maximum Loading of Chamber:
    176 lb / 80 kg
  • Control Technology - ControlCOCKPIT:
    Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Language Setting:
    German/English/Spanish/French
  • Control Technology - Calibration:
    Three freely selectable temperature values

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    For fault analysis
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Internals:
    1 stainless steel grid
  • Standard Equipment - Scope of Delivery:
    Incl. works calibration certificate for +160°C
  • Standard Equipment - Housing:
    Rear zinc-plated steel
  • Electrical Data - Electrical Load:
    115 V (±10%), 50/60 Hz, 14.8 amps
