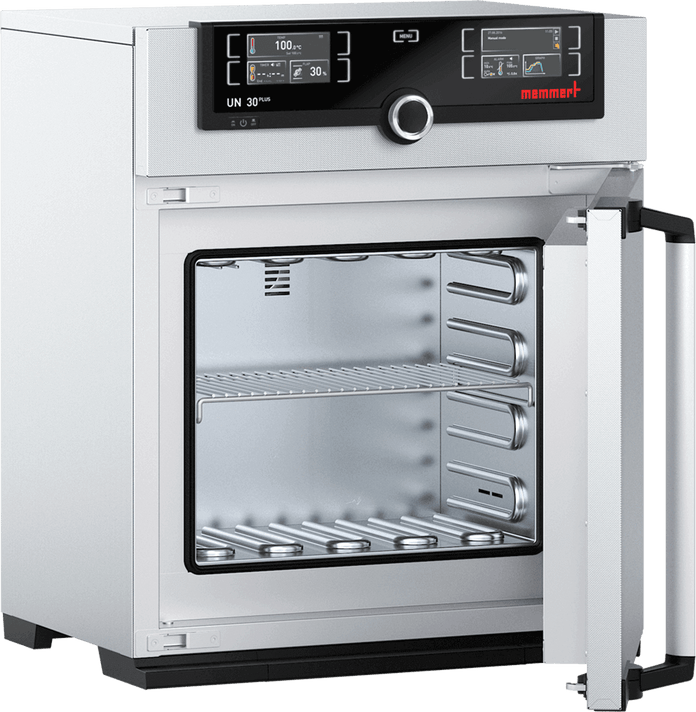

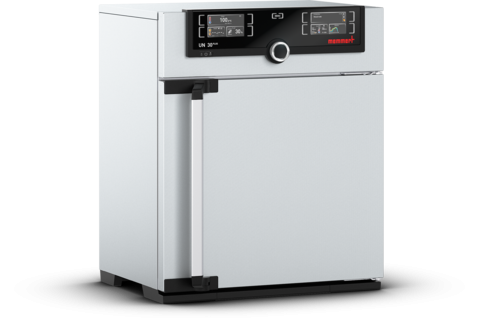

Memmert Natural Convection Oven UN 30 Plus, 115 Volt, 50/60 Hz. maximum temperature range to 300°C.

Features

The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology. On this page, you can find all the essential technical data on the universal Memmert lab oven.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    27.7" (70.36 cm)
  • Nominal Width:
    23" (58.42 cm)
  • Nominal Length:
    17.1" (43.43 cm)
  • Internal Height:
    12.6" (32.0 cm)
  • Internal Width:
    15.7" (39.88 cm)
  • Internal Length:
    9.8" (24.89 cm)

Temperature - Humidity

  • Set Temperature Range in °C:
    Min. 5°C above ambient up to +300°C
  • Temperature:
    2 Pt100 sensors Class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    1.1 ft³ / 32 L
  • Stainless Steel Interior - Number of Stainless Steel Grids (Standard Equipment):
    1
  • Stainless Steel Interior - Maximum Number of Grids:
    3
  • Stainless Steel Interior - Maximum Loading per Grid:
    66 lb / 30 kg
  • Stainless Steel Interior - Maximum Loading of Chamber:
    132 lb 60 kg
  • Control Technology - ControlCOCKPIT:
    Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color display
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Language Setting:
    German/English/Spanish/French
  • Control Technology - Calibration:
    Three freely selectable temperature values

Safety - Standard Equipment - Electrical Data

  • Safety - Alarm:
    Audible and visual
  • Safety - Autodiagnostic System:
    For fault analysis
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Internals:
    2 stainless steel grids
  • Standard Equipment - Scope of Delivery:
    Incl. works calibration certificate for +160°C
  • Standard Equipment - Housing:
    Rear zinc-plated steel
  • Electrical Data - Electrical Load:
    115 V (±10%), 50/60 Hz, 14.0 amps
