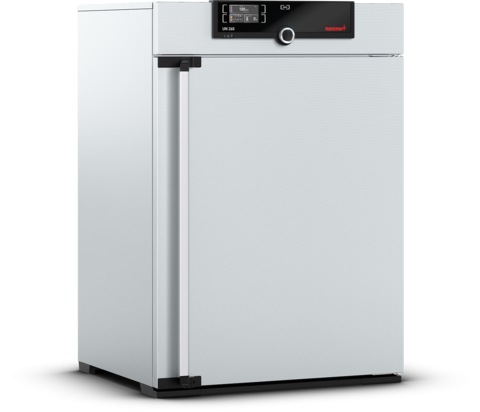

Memmert Natural Convection Oven UN 260, 115 volt 50/60 Hz., Temperature range to 300°C.

Features

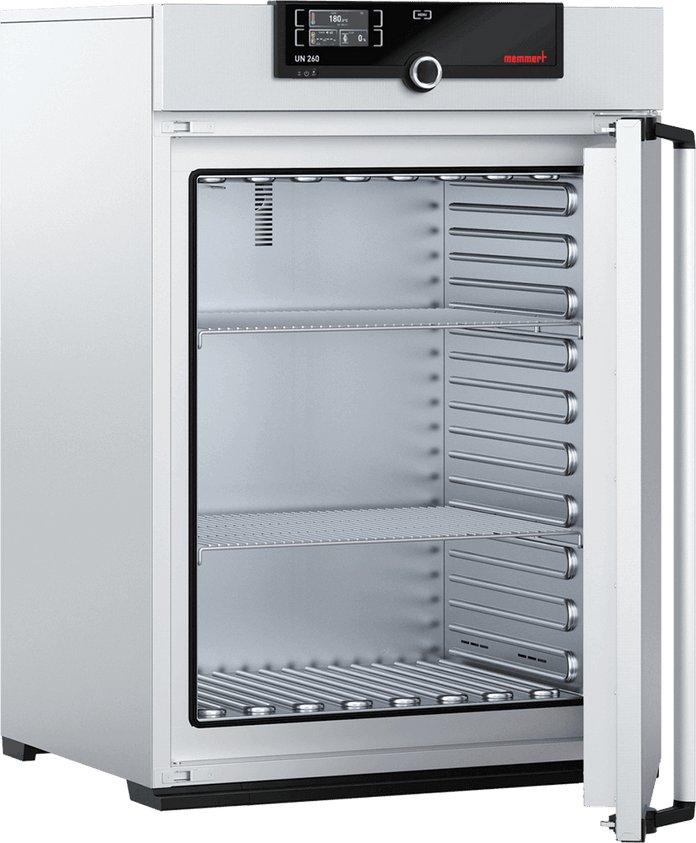

This universal lab oven is Memmert's classic appliance for temperature control in science, research and material tests in the industry. The UN260 is a convection oven with an internal volume of 9 ft³ or 256L.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • SingleDISPLAY: Control temperature, fan speed, program time & more.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.

Specifications

Overview

  • Nominal Height:
    46.6" (118.36 cm)
  • Nominal Width:
    32.4" (82.3 cm)
  • Nominal Length:
    26.9" (68.33 cm)
  • Internal Height:
    31.5" (80.01 cm)
  • Internal Width:
    25.2" (64.01 cm)
  • Internal Length:
    19.7" (50.04 cm)

Temperature - Humidity

  • Set Temperature Range in °C:
    Min. 5°C above ambient up to +300°C
  • Temperature:
    1 Pt100 sensor DIN class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    9.0 ft³ / 256 L
  • Stainless Steel Interior - Number of Stainless Steel Grids (Standard Equipment):
    2
  • Stainless Steel Interior - Maximum Number of Grids:
    9
  • Stainless Steel Interior - Maximum Loading per Grid:
    44 lb / 20 kg
  • Stainless Steel Interior - Maximum Loading of Chamber:
    263 lb / 210 kg
  • Control Technology - ControlCOCKPIT:
    Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Language Setting:
    German/English/Spanish/French
  • Control Technology - Calibration:
    Three freely selectable temperature values

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    For fault analysis
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Installation:
    On lockable castors
  • Standard Equipment - Internals:
    2 stainless steel grids
  • Standard Equipment - Scope of Delivery:
    Incl. works calibration certificate for +160°C
  • Standard Equipment - Housing:
    Rear zinc-plated steel
  • Electrical Data - Electrical Load:
    115 V, 50/60 Hz, approx. 1800 W
