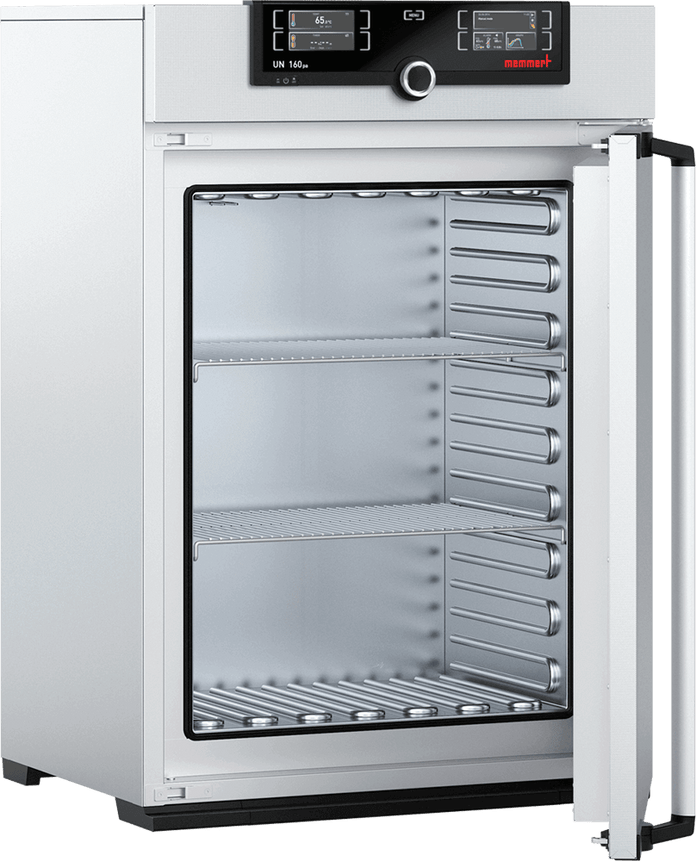

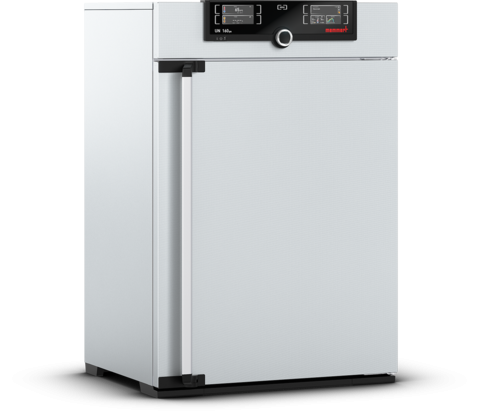

Memmert UN 160 PA, 115Volt - Paraffin Oven. 50/60Hz, Temp Range up to +80°C.

Features

The universally applicable oven is our classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3-year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    43.6" (110.74 cm)
  • Nominal Width:
    29.3" (74.42 cm)
  • Nominal Length:
    23" (58.42 cm)
  • Internal Height:
    28.4" (72.14 cm)
  • Internal Width:
    22" (55.88 cm)
  • Internal Length:
    15.8" (40.13 cm)

Temperature - Humidity

  • Set Temperature Range in °C:
    Min. 5°C above ambient up to +80°C
  • Temperature:
    2 Pt100 sensors Class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    161 L
  • Stainless Steel Interior - Max. Loading of Chamber:
    462 lbs
  • Control Technology - ControlCOCKPIT:
    Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function HeatBALANCE:
    Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), program time, time zones, daylight savings time
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Language Setting:
    German/English/Spanish/French
  • Control Technology - Calibration:
    Three freely selectable temperature values

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    For fault analysis
  • Safety - Alarm:
    Audible and visual
  • Standard Equipment - Internals:
    2 stainless steel grids
  • Standard Equipment - Scope of Delivery:
    Incl. Works calibration certificate
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Housing:
    Rear zinc-plated steel
  • Electrical Data - Electrical Load:
    115 V (±10%), 50/60 Hz, 19.1 amps
