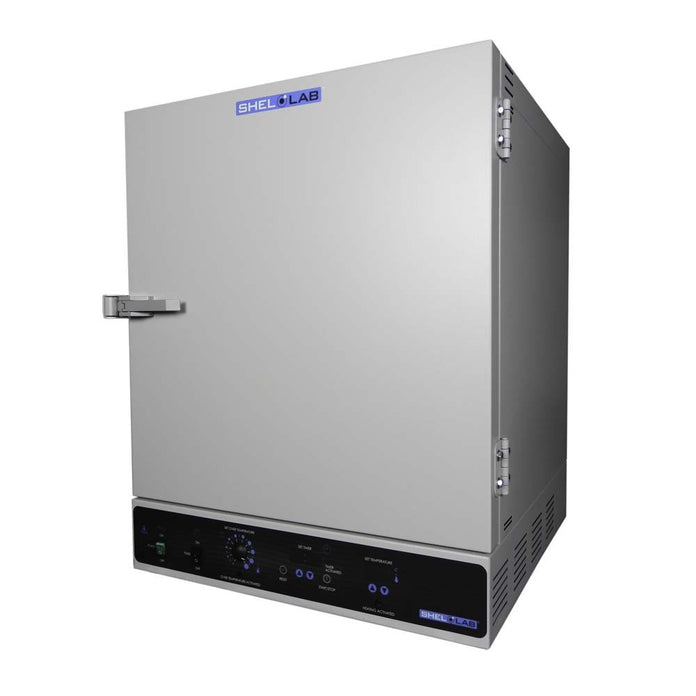

SHEL LAB gravity ovens are ideal for processing powders and other products that may be disturbed by forced air.

Features

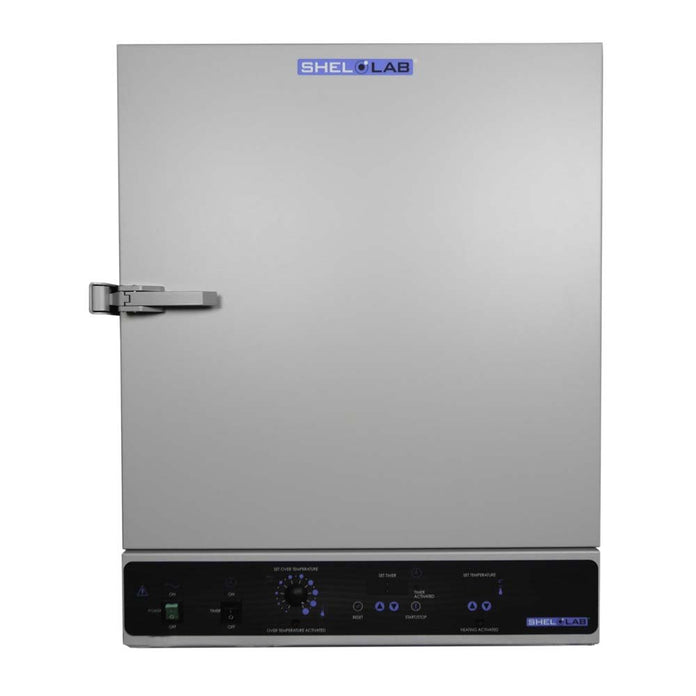

This unit has triple wall construction and easy to read microprocessor controls Adjust the air exhaust from the chamber without putting your fingers near the heat source. Even at temperatures of 306°C, the outer skin of this unit meets all CE requirements, meaning your application will stay hot but your workspace will not.



This gravity convection oven provides a degree of uniformity comparable to most forced air ovens on the market. The 99 min 59 hr digital timer has an independent control so its use is optional. Once the timer expires the power is cut to only the heating elements.



These units include



  • Microprocessor Controls
  • Superb Temperature Control
  • Cool Touch Damper
  • Digital Timer to 99hr and 59 min
  • CE Approved
  • 3 Shelves
  • 24 Month Limited Warranty

Specifications

Overview

  • Nominal Height:
    34" (86.36 cm)
  • Nominal Width:
    26.9" (68.33 cm)
  • Nominal Length:
    28.6" (72.64 cm)
  • Internal Height:
    16.2" (41.15 cm)
  • Internal Width:
    16.5" (41.91 cm)
  • Internal Length:
    19.5" (49.53 cm)
  • Capacity:
    3

Technical Data

  • Shelf Dimensions (W x D):
    16.1 x 18.8 (409 mm x 478 mm)
  • Unit Weight:
    170.5 lbs (77.3 kg)
  • Interior Metal:
    430 SST
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +20°C - 306°C
  • Temperature Uniformity - Midrange:
    3.5°C
  • Temperature Stability - Midrange:
    0.3°C
  • Controller Type:
    Digital
  • Display Resolution:
    0.1°C
  • Power Voltage, Frequency and Current:
    110-120 VAC, 50/60 Hz, 14.0 Amps
  • Safety Certification:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE
  • Interior Construction:
    430 series stainless steel
  • Exterior Construction:
    20 gauge steel,powder coated

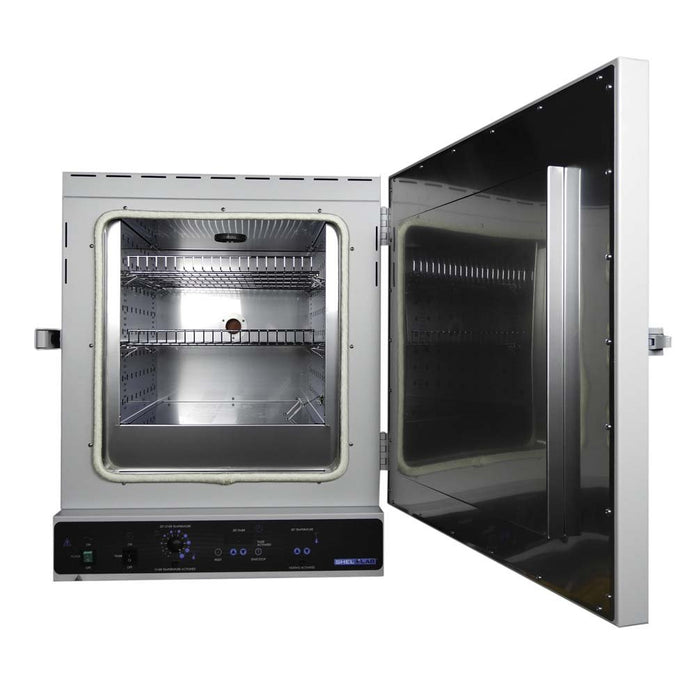

  • Shelves (See Accessories):
    3 (max of 7)
  • Maximum Weight Per Shelf:
    50 lb (22.6 kg)
  • Permitted Total Load:
    200 lb (91 kg)

Voltage Specific

  • Electrical, 50/60Hz, AC, 1Ø - Voltage:
    110V-120V
  • Electrical, 50/60Hz, AC, 1Ø - Full Load Amps:
    14
  • Electrical, 50/60Hz, AC, 1Ø - Nominal Power (watts @150°C):
    1008
  • Electrical, 50/60Hz, AC, 1Ø - NEMA Plug Supplied:
    5-15P
  • Temperature Range 20°C above ambient to 306°C - Heat-Up to Ambient - Minutes to 80°C:
    7
  • Temperature Range 20°C above ambient to 306°C - Heat-Up to Ambient - Minutes to 150°C:
    23
  • Temperature Range 20°C above ambient to 306°C - Heat-Up to Ambient - Minutes to 306°C:
    95
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (30 sec.) - Minutes to 80°C:
    3
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (30 sec.) - Minutes to 150°C:
    4
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (30 sec.) - Minutes to 306°C:
    24
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (60 sec.) - Minutes to 80°C:
    5
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (60 sec.) - Minutes to 150°C:
    5.5
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (60 sec.) - Minutes to 306°C:
    37
  • Temperature Uniformity At 80°C:
    2.5
  • Temperature Uniformity At 150°C:
    3.5
  • Temperature Uniformity At 306°C:
    4.0

Site Preparation - Installation Guides - SGO3 Oven Options - Accessories

  • Door Swing Clearance (Nominal):
    27" (686 mm)
  • Wall Clearance, Sides:
    6" (152 mm)
  • Wall Clearance, Rear:
    12" (305 mm)

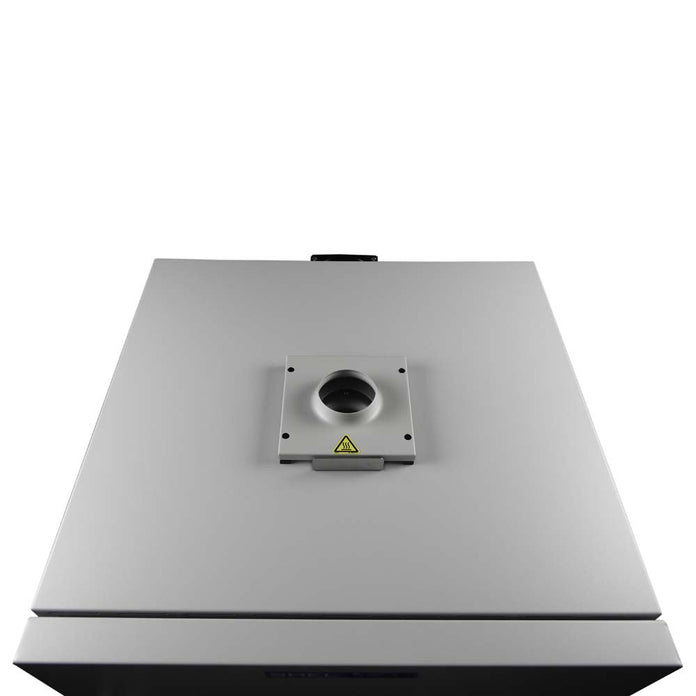

  • Exhaust Duct (Outer Diameter):
    1.75" (44 mm)
  • Unit Weight Empty:
    170.5 lb (77.3 kg)
  • Shipping Weight:
    203 lb (92 kg)
  • Caster Platform:
    90000597
  • Extra Wire Rack:
    50 lbs (22kg)
  • Includes Brackets:
    9751317
