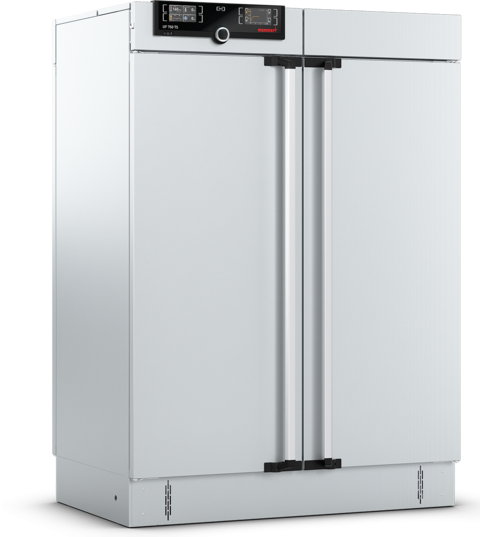

Memmert Forced Circulation Oven UF 750TS Pass-Through Oven, 208 volt, 3-Phase, 50/60 Hz., without neutral.

Features

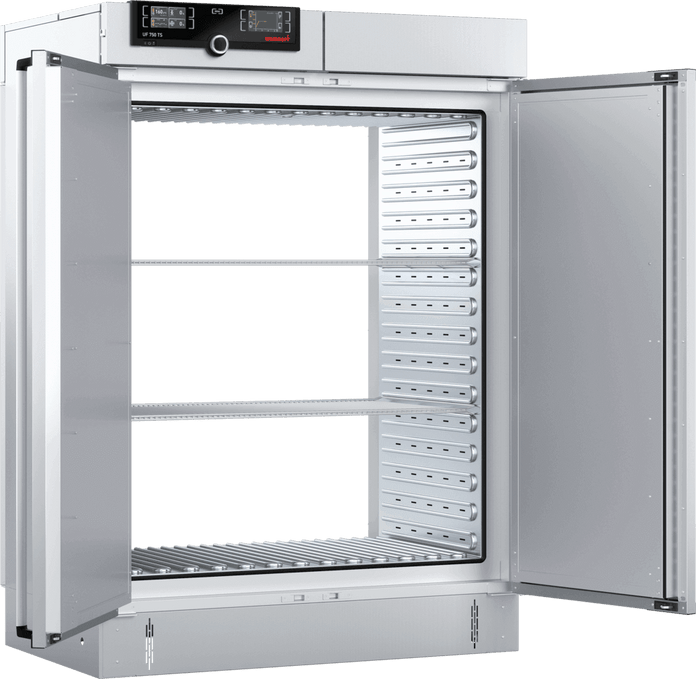

The Memmert heating oven with fully insulated stainless steel door on both sides saves time during loading and reduces the risk of contamination, especially when handling sensitive load between grey and clean rooms. On this page, you can find all the essential technical data on our pass-through oven. Our customer relations team will be pleased to help if you want further information.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • SingleDISPLAY: Control temperature, fan speed, program time & more.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.

Specifications

Overview

  • Nominal Height:
    67.5" (171.45 cm)
  • Nominal Width:
    48.2" (122.43 cm)
  • Nominal Length:
    30.8" (78.23 cm)
  • Internal Height:
    47.2" (119.89 cm)
  • Internal Width:
    40.9" (103.89 cm)
  • Internal Length:
    23.6" (59.94 cm)

Temperature - Humidity

  • Setting Temperature Range in °C:
    Min. 10°C above ambient up to +250°C
  • Resolution of Display for Actual Values:
    0.1°C
  • Temperature:
    2 Pt100 sensors Class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Interior:
    Easy-to-clean interior,made of stainless steel
  • Stainless Steel Interior - Volume:
    749 L
  • Stainless Steel Interior - Max. Number of Grids/Shelves:
    14
  • Stainless Steel Interior - Max. Loading of Chamber:
    661 lbs
  • Stainless Steel Interior - Max. Loading per Grid/Shelf:
    66 lbs
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function HeatBALANCE:
    Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Calibration:
    Three freely selectable temperature values

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    For fault analysis
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Door:
    Fully insulated stainless steel doors on two sides
  • Standard Equipment - Internals:
    2 stainless steel grids
  • Standard Equipment - Installation:
    With feet
  • Electrical Data - Electrical Load:
    400 V and 3x 230 V w/o neutral, 50/60 Hz approx. 5000 W
