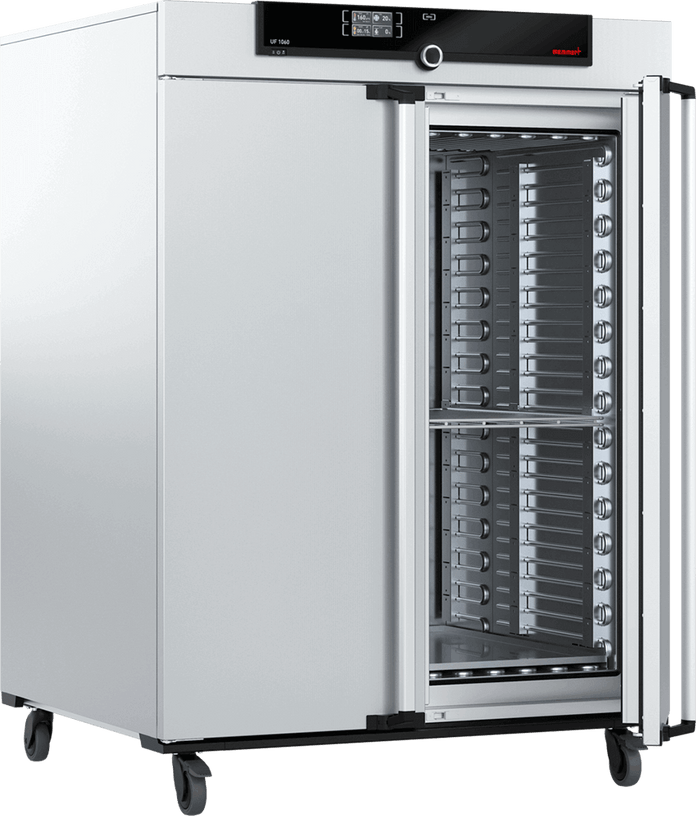

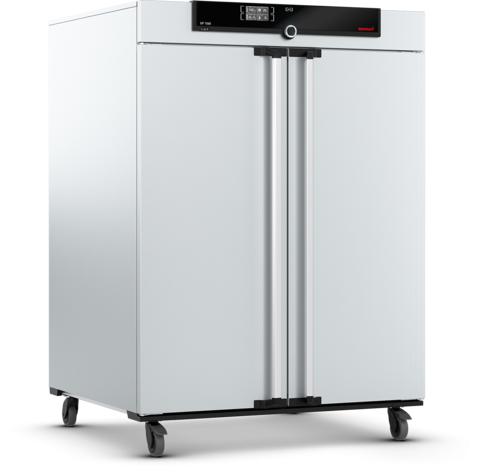

Memmert Forced Circulation Oven UF 1060, 208 volt, 50/60 Hz. 3 PH, without neutral - Maximum Temperature Range to 300°C.

Features

The universally applicable oven U is Memmert's classic appliance for temperature control in science, research and material tests. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology. The UF1060 has an internal volume of 37.4 ft³ or 1060 L and uses forced air circulation.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.
  • Single DISPLAY: Control temperature, fan speed, program time & more.

Specifications

Overview

  • Nominal Height:
    67.7" (171.96 cm)
  • Nominal Width:
    48.2" (122.43 cm)
  • Nominal Length:
    40.7" (103.38 cm)
  • Internal Height:
    47.2" (119.89 cm)
  • Internal Width:
    40.9" (103.89 cm)
  • Internal Length:
    33.5" (85.09 cm)

Temperature - Humidity

  • Setting Resolution Temperature:
    Up to 99.9°C - 0.1 / from 100°C - 0.5
  • Setting Temperature Range:
    +20 to +300°C
  • Temperature Sensor:
    1 Pt100 sensor DIN class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    1060 L / 37.4 cu ft
  • Stainless Steel Interior - Max. Number of Shelves:
    14
  • Stainless Steel Interior - Max. Loading of Chamber:
    661 lbs
  • Stainless Steel Interior - Max. Loading per Shelf:
    60 kg
  • Textured Stainless Steel Casing - Installation:
    On lockable castors
  • Textured Stainless Steel Casing - Housing:
    Rear zinc-plated steel
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian
  • Control Technology - ControlCOCKPIT:
    SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Calibration:
    Three freely selectable temperature values
  • Control Technology - Adjustable Parameters:
    temperature (Celsius or Fahrenheit), fan speed, air flap position, timer

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    For fault analysis
  • Standard Equipment - Shelving:
    2 reinforced stainless steel grids, electropolished
  • Standard Equipment - Works Calibration Certificate:
    Calibration at +160°C
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Electrical Data - Voltage Electrical Load:
    208 V, 3 phases, w/o neutral, 50/60 Hz, Approx. 5700 W / 15.9 A
