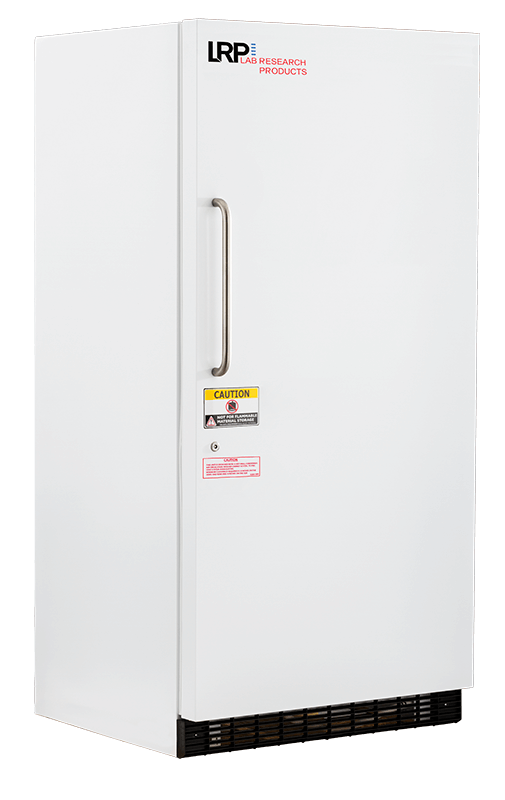

Lab Research Products - RFC-30M - 30 Cu. Ft. Capacity General Purpose Refrigerator & Freezer Combination

Features
The General Purpose Dual Temp/Combination units meet and exceed the specifications of most general-purpose units and provides both refrigerator and freezer compartments and are provided with standard analog dial temperature thermostats. Units are intended for general purpose applications only where precise temperature control and maintenance are not essential and there are no requirements for temperature alarms.
Periodic manual defrosting is required.
Details
- 30 cu. ft. capacity (25 ref./5 freezer)
- 3 adjustable shelves, refrigerator
- Keyed door lock
- Magnetic door gasket for positive seal
- Stainless steel door handle
- Leveling legs
- Two probe access ports (3/8"); one, refrigerator/one, freezer
- Powder coat paint exterior
- CFC-free refrigerant (R404a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
Temp Controller
- Mechanical thermostat
- Refrigerator temperature range: 0°C to 10°C
- Freezer temperature range -15°C to -20°C
Specifications
Overview
-
Nominal Height:72.5" (184.15 cm)
-
Nominal Width:35.5" (90.17 cm)
-
Nominal Length:35.5" (90.17 cm)
-
Capacity:30
Technical Data - Freezer
-
Cu. Ft:5
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:1
-
Shelves:0
-
Refrigerant:R404a
-
H.P.:1/3
-
Amps:6
-
Weight:323 lbs.
Technical Data - Refrigerator
-
Cu. Ft:25
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:0
-
Shelves:3 Adj.
-
Refrigerant:R404a
-
H.P.:1/3
-
Amps:6
-
Weight:323 lbs.
Drawings
-
RFC-30M Ext Cut SheetVisit Link
Useful Links
-
RFC-30M Spec SheetVisit Link
