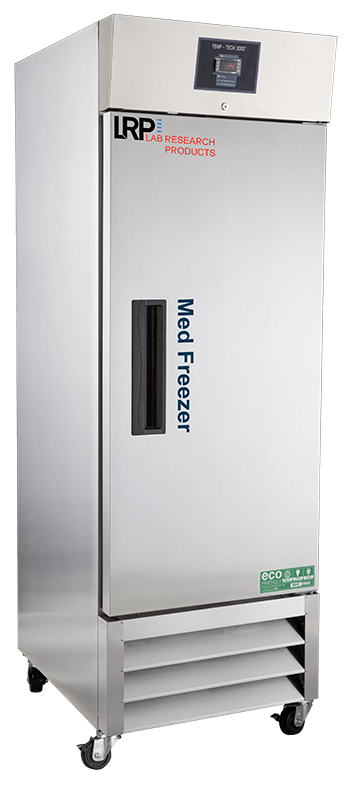

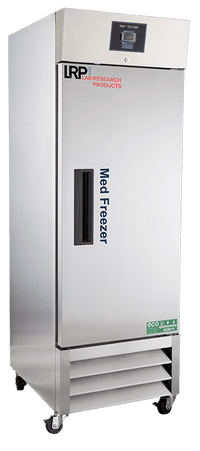

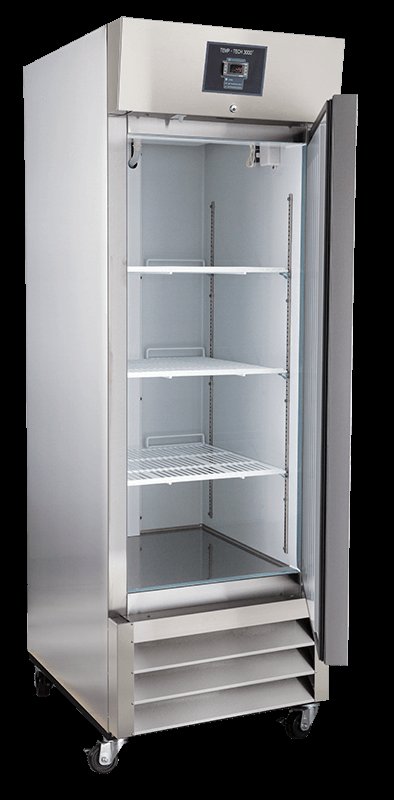

Lab Research Products - PH-LRP-HC-SSP-23FA - 23 Cu. Ft. Plus Series Stainless Steel Auto Defrost Pharmacy Freezer (-4°F Operation)

Features
The Plus Series Stainless Steel Pharmacy Freezers feature a microprocessor temperature controller, allowing for precise temperature control, recovery, and maintenance versus mechanical style thermostats.
Critical samples and supplies are security backed with an extensive package of temperature security and alarm features.
Auto-defrost design provides the convenience of a frost-free interior. However, chamber air temperatures do experience a moderate rise during defrost cycles.
DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assists in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Two probes; one in air and one in sample bottle
- Probe attached to evaporator for defrost termination sensing
- Sensor error alarm
- Continuous product (simulated) temperature display
- Remote alarm contacts
- Forced draft air circulation
- Keyed door lock
- Magnetic door gaskets for positive seal
- Integrated door handle
- LED interior lights are safety shielded and switch controlled
- Probe access port (3/4")
- Stainless steel exterior
- White-powder coated aluminum interior with 304 stainless steel floor
- Easily cleaned smooth interior
- Hydrocarbon natural refrigerant (R290)
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
- Auto defrost
- Four swivel casters (5 3/4")
Temp Controller
- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- Adjustable operating temperature range: 5°F - -13°F (-15°C - -25°C)
Specifications
Overview
-
Nominal Height:83.25" (211.46 cm)
-
Nominal Width:26.8" (68.07 cm)
-
Nominal Length:35.75" (90.81 cm)
-
Internal Height:52.5" (133.35 cm)
-
Internal Width:22" (55.88 cm)
-
Internal Length:24.6" (62.48 cm)
-
Capacity:23
Technical Data
-
Defrost:Auto
-
Door:1 Solid
-
Int Door:0
-
Shelves:3 Adj.
-
Refrigerant:R290
-
H.P.:0.75
-
Amps:8
-
Weight:295 lbs.
Drawings
-
PH-LRP-HC-SSP-23FA Ext CutsheetVisit Link
-
PH-LRP-HC-SSP-23FA Int CutsheetVisit Link
Useful Links
-
PH-LRP-HC-SSP-23FA SpecSheetVisit Link
