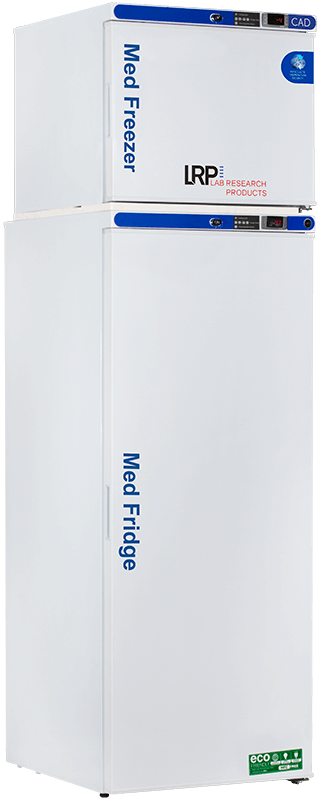

Lab Research Products - PH-LRP-HC-RFC12A-CAD - 12 Cu. Ft. Plus Series Pharmacy/Vaccine Refrigerator & Freezer Combination with Controlled Auto Defrost Freezer

Lab Research Products - PH-LRP-HC-RFC12A-CAD - 12 Cu. Ft. Plus Series Pharmacy/Vaccine Refrigerator & Freezer Combination with Controlled Auto Defrost Freezer

Lab Research Products - PH-LRP-HC-RFC12A-CAD - 12 Cu. Ft. Plus Series Pharmacy/Vaccine Refrigerator & Freezer Combination with Controlled Auto Defrost Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Our patented Controlled Auto Defrost technology provides the convenience of an auto-defrost design while still ensuring that vaccines remain at consistent and stable temperatures below 5F (-15C).

Features

Our patented "Controlled Auto Defrost" technology provides the convenience of an auto-defrost design while still ensuring that vaccines remain at consistent and stable temperatures below 5°F (-15°C).



The acceptable temperature ranges for vaccine storage are between 36° Fahrenheit and 46° Fahrenheit (or between 2° Celsius and 8° Celsius) in the refrigerator and between -58° Fahrenheit and +5° Fahrenheit (or between -50° Celsius and -15° Celsius) in the freezer.



Details



  • Refrigerator/Freezer freestanding thermometer with 3 year certificate of calibration, with min/max memory, °F/°C switchable
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • Remote alarm contacts, refrigerator and freezer
  • Six adjustable shelves with guard rail on back to prevent product from being pushed against back wall, Refrigerator
  • Two adjustable shelves with guard rail on back to prevent product from being pushed against back wall, Freezer
  • Bottom footed shelf to allow air circulation, Refrigerator and Freezer
  • Vaccine storage power cord warning label
  • Forced draft circulation Refrigerator
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Leveling legs
  • Stacking kit
  • Two probe access ports (3/8"); one, refrigerator/one, freezer
  • White powder coated exterior
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • Pyxis®, Omnicell® and AcuDose RX® compatible



Temp Controller



  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display with sample simulated probe, refrigerator and freezer
  • Adjustable operating temperature range: Refrigerator: 36°F - 46°F (2°C - 8°C), Freezer: 5°F - -13°F (-15°C - -25°C)
  • Defrost:
    • Auto defrost cycle every 6 hours: (at Set Point -11°F / -24°C)
    • Max air temp in empty freezer: 5°F (-15°C)
    • Max air temp in loaded freezer: 3°F (-16°C)
    • Max sample temp in empty freezer: 0°F (-18°C)
    • Max sample temp in loaded freezer: -4°F (-20°C)

Specifications

Overview

  • Nominal Height:
    80.25" (203.84 cm)
  • Nominal Width:
    23.75" (60.33 cm)
  • Nominal Length:
    26.5" (67.31 cm)
  • Capacity:
    12

Specifications-Freezer

  • Cu. Ft.:
    1
  • Defrost:
    Controlled Auto
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    2 Adj.
  • Interior Dim. W:
    17.75"
  • Interior Dim. D:
    7.50"
  • Interior Dim. H:
    12.50"
  • Refrigerant:
    R600a
  • H.P.:
    0.12
  • Amps:
    1
  • Weight:
    219 lbs.

Specifications-Refrigerator

  • Cu. Ft.:
    10.5
  • Defrost:
    Cycle
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    6 Adj.
  • Interior Dim. W:
    19.87"
  • Interior Dim. D:
    18.37"
  • Interior Dim. H:
    53.50"
  • Refrigerant:
    R600a
  • H.P.:
    0.33
  • Amps:
    2.3
  • Weight:
    219 lbs.
