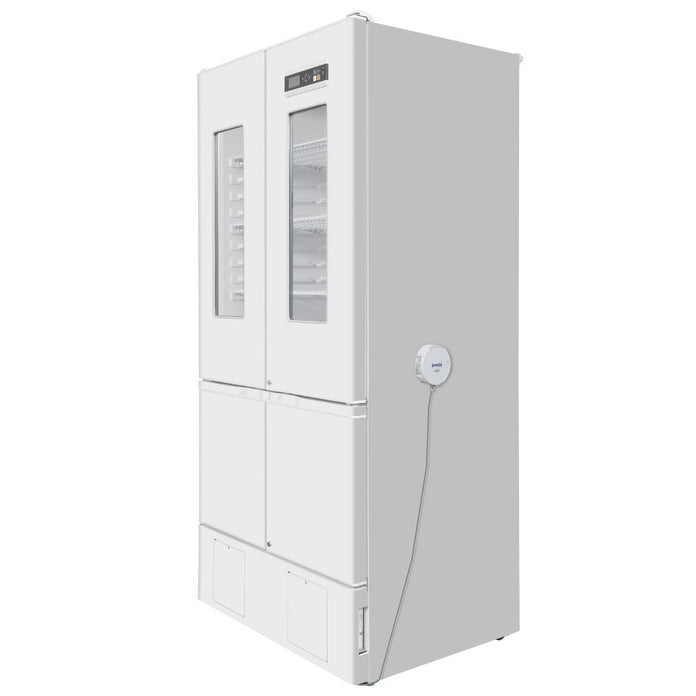

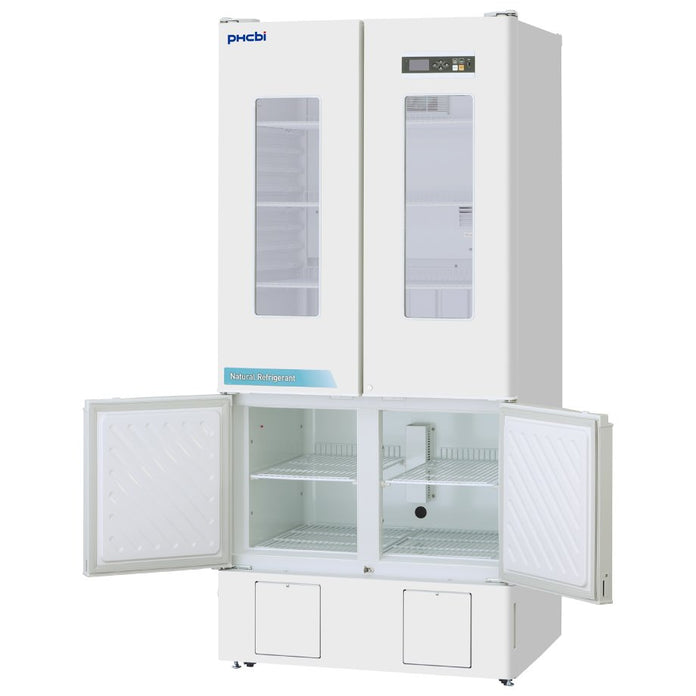

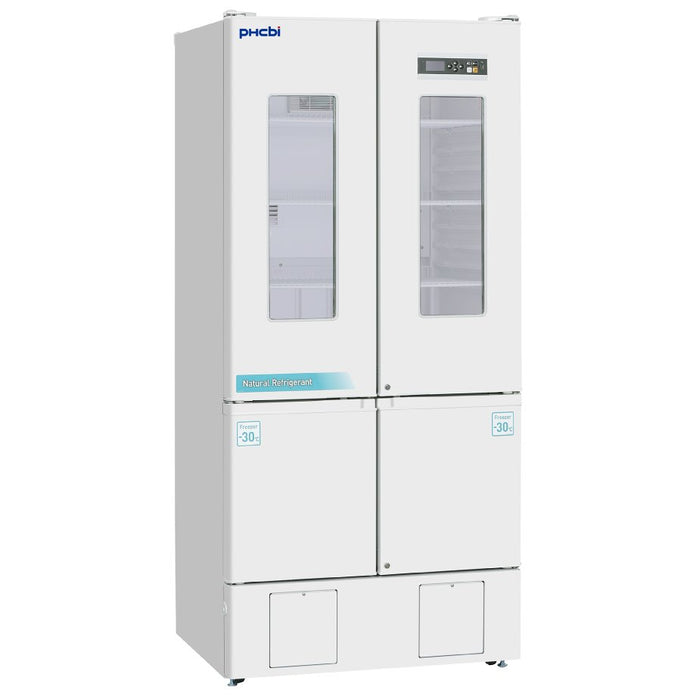

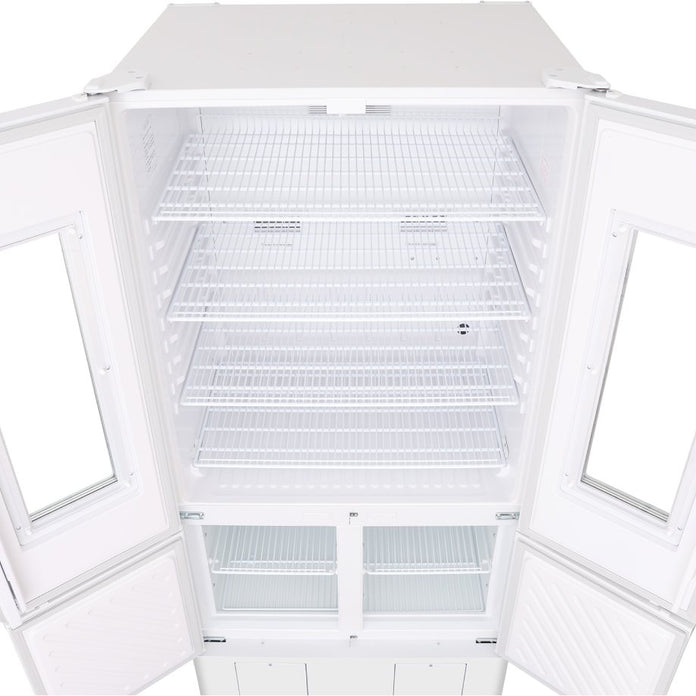

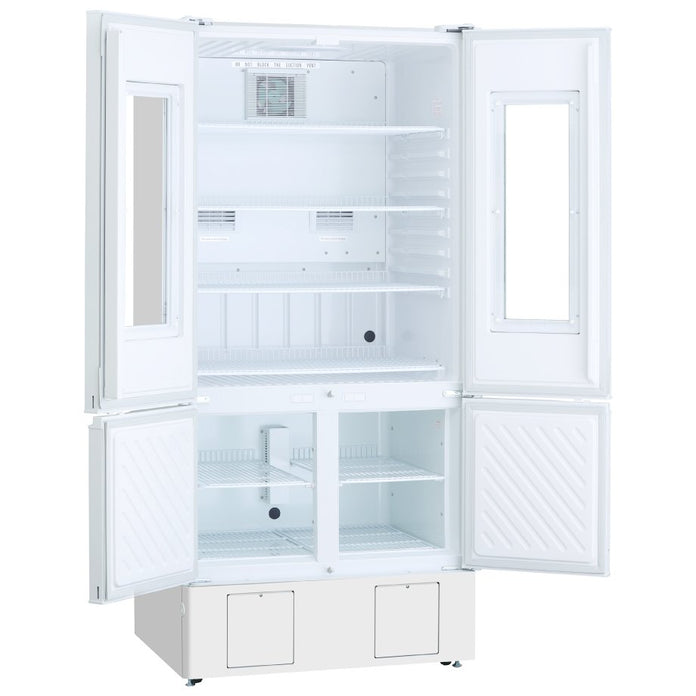

PHCbi - MPR-N650FH-PA - Pharmaceutical Refrigerator Freezer Combination Unit 115V
Features
Purpose-Built Cold Chain Storage
Engineered for the demands of modern vaccine and pharmaceutical protection.
When product integrity is non‑negotiable, you need equipment designed for precision from the inside out. This PHCbi refrigerator/freezer combo delivers validated temperature performance, independent cooling control, and the reliability required to safeguard sensitive vaccines and biological.
Pharmaceutical Refrigerator with Freezer
This high-capacity cabinet combines pharmaceutical refrigeration and a -30°C freezer within a single footprint. Offering 16.5 cu. ft. of refrigerated space and 6.7 cu. ft. of freezer capacity, it provides expanded storage for vaccines and biologicals. Natural refrigerants reduce environmental impact, delivering a sustainable, energy-efficient solution.
Even, predictable cooling - every time
Forced‑air circulation delivers uniform temperature and fast recovery, while the freezer's cold‑wall system cools efficiently through its chilled interior walls.
Two systems. Total control
Separate compressors deliver independent temperature control, with freezer performance down to -30°C for vaccine and biological storage needs.
Designed for visibility, organization, and protection
Triple pane glass doors, solid freezer doors, adjustable shelving, and keyed locks support visibility, organization, and protection.
Confidence built into every degree
This unit is engineered to meet regulatory guidelines for vaccine and biological storage, helping ensure product safety and compliance.
Protection without interruption
Automatic refrigerator defrost keeps the evaporator above freezing to protect materials, while the freezer's manual defrost maintains stable temperatures.
Performance with a lower environmental footprint
Hydrocarbon refrigerants deliver strong cooling performance, fast recovery, and broad ambient tolerance while supporting sustainability goals.
Specifications
Overview
-
Nominal Height:75.2" (191.01 cm)
-
Nominal Width:31.5" (80.01 cm)
-
Nominal Length:28.1" (71.37 cm)
-
Capacity:16.5|466
Technical Data
-
Internal Refrigerator Dimensions:31.88" W x 24.05" D x 39.52" H (810 x 611 x 1004 mm)
-
Internal Freezer Dimensions:32.31" W x 22.66" D x 16.46" H (770 x 575.5 x 418 mm)
-
Effective Refrigerator Capacity:16.5 cu.ft. (466 L)
-
Effective Freezer Capacity:6.7 cu.ft. (189 L)
-
Total Capacity:23.2 cu.ft. (655 L)
-
Insulation:Rigid polyurethane foamed-in-place
-
Shelves:(3) Adjustable, Wire (Ref), (2) Wire (Frz)
-
Access Port:2, Rear of Refrigerator and Freezer (1.1" (30 mm) diameter)
-
Compressor:Hermetic type
-
Output:160W x 2
-
Evaporator:Fin and tube type (Refrigerator), tube on sheet type (Freezer)
-
Refrigerant:SNAP Approved HC R-600A (Refrigerator), HC R-290 (Freezer)
-
Temperature Control Range:2ºC to +14ºC (Refrigerator), -30ºC to -20ºC (Freezer)
-
Alarms:High temperature, low temperature, 0°C (refrigerator only), door, power failure, over-heat protector (refrigerator), over-cool protector (refrigerator), key lock, thermal sensor abnormality, circuit breaker (acts as power switch)
-
Net Weight:370 lbs (168 kg)
-
Temperature Control System:Microprocessor Control System
-
Area Footprint:7.93 sq.ft. (0.74 m²)
-
Data Management:Optional with LabAlert Monitoring System, Optional with LabSVIFT (GEN 2 Compatible)
-
Sound Level:42 dB(A)
-
Usb Logging Function:Logs 3 months of data at 12 minute intervals
-
Display:OLED alphanumeric | Select refrigerator, freezer or concurrent
-
Natural Refrigerant:HC R-600a (Ref), HC R-290 (Frz)
-
Exterior Material:Painted steel
-
Interior Material:ABS resin
-
Casters:(4) plus 2 leveling feet on front base
