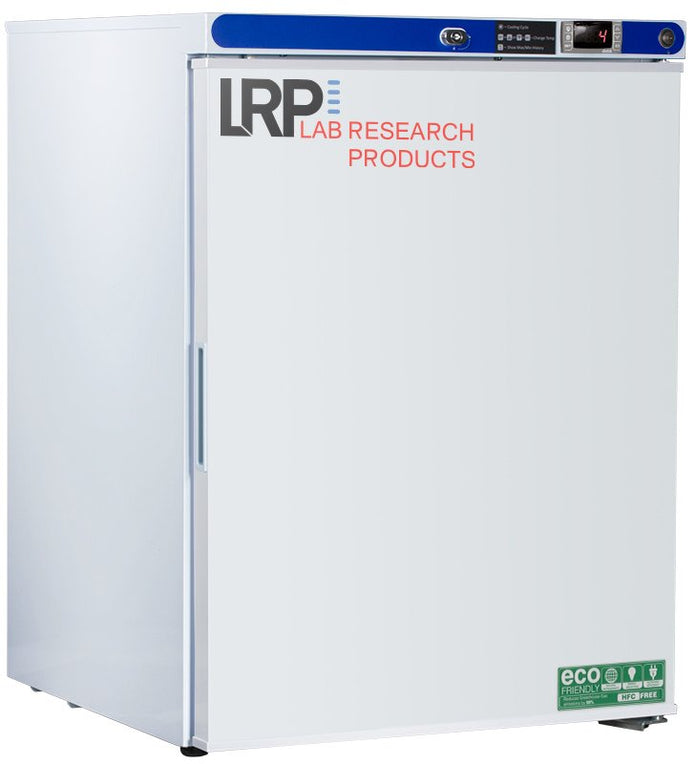

Lab Research Products - LRP-HC-UCFS-0504 - 5.2 Cu. Ft. Plus Series Undercounter Refrigerator Freestanding, Solid Door

Lab Research Products - LRP-HC-UCFS-0504 - 5.2 Cu. Ft. Plus Series Undercounter Refrigerator Freestanding, Solid Door
Lab Research Products - LRP-HC-UCFS-0504 - 5.2 Cu. Ft. Plus Series Undercounter Refrigerator Freestanding, Solid Door

Lab Research Products - LRP-HC-UCFS-0504 - 5.2 Cu. Ft. Plus Series Undercounter Refrigerator Freestanding, Solid Door

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Plus Series Free Standing Undercounter Refrigerators feature a microprocessor temperature controller and display. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.

Features

The Plus Series Free Standing Undercounter Refrigerators feature a microprocessor temperature controller and display. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.



The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.



Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • 5.2 Cu. Ft. Capacity
  • One solid swing door, right hinged, not reversible
  • Three adjustable shelves with guard rail on back to prevent product from being pushed against the back wall
  • Bottom footed shelf to allow air circulation
  • Back wall evaporator cover
  • Forced draft circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • LED interior light
  • Switch activated light
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty
  • Energy Star Certified

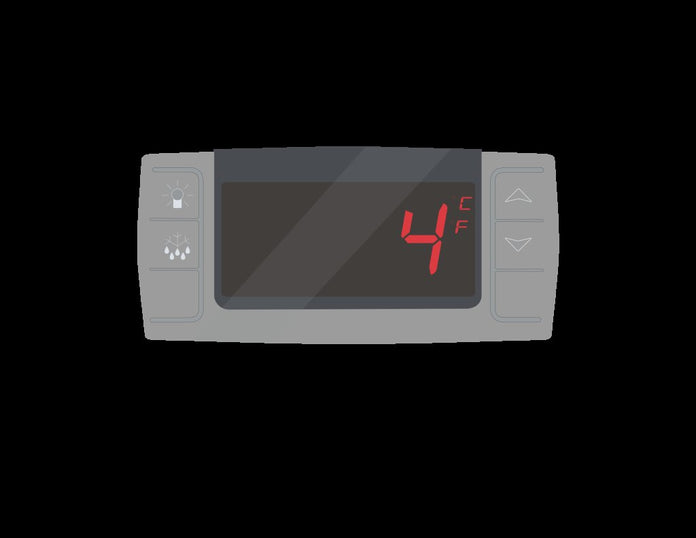

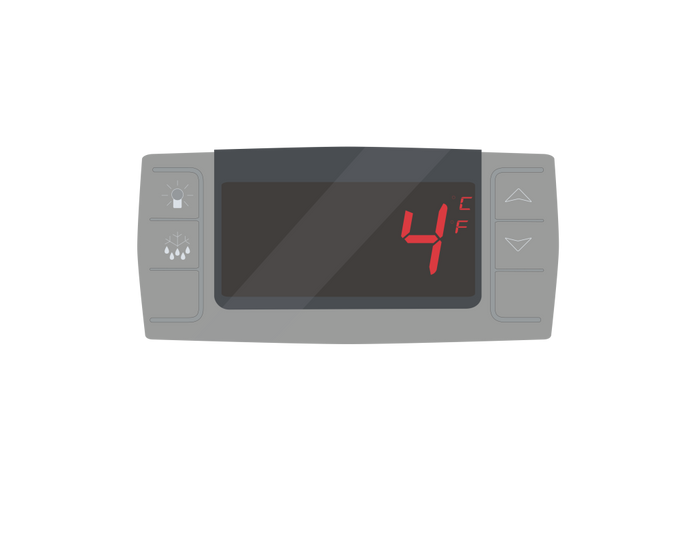

Temp Controller



  • Microprocessor temperature controller
  • Adjustable operating temperature range: 1°C to 10°C
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in glycol bottle

Specifications

Overview

  • Nominal Height:
    32.13" (81.61 cm)
  • Nominal Width:
    23.75" (60.33 cm)
  • Nominal Length:
    24" (60.96 cm)
  • Internal Height:
    26.75" (67.95 cm)
  • Internal Width:
    19.88" (50.5 cm)
  • Internal Length:
    16" (40.64 cm)
  • Capacity:
    5.2

Technical Data

  • Defrost:
    Cycle
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    3Adj +Footed Bottom
  • Refrigerant:
    R600a
  • H.P.:
    1/6
  • Amps:
    1.3
  • Weight:
    93 lbs.
