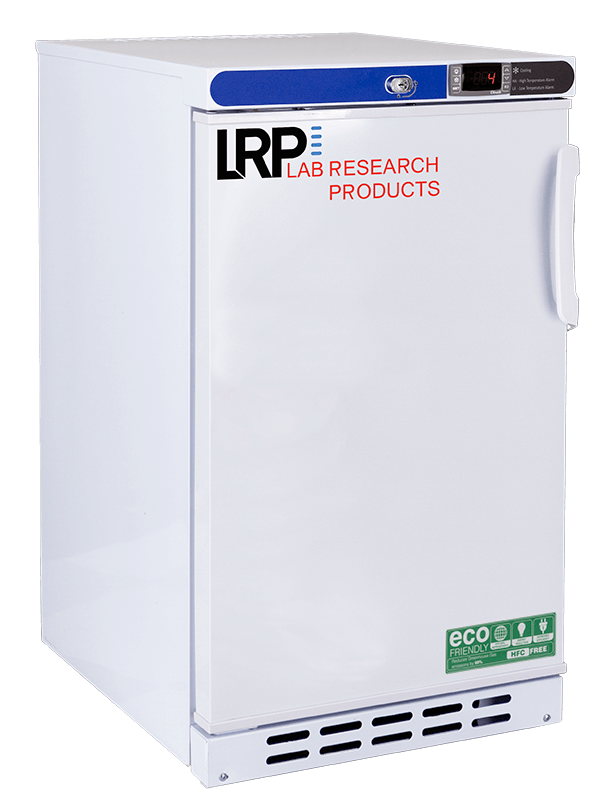

Lab Research Products - LRP-HC-UCBI-0204-LH - 2.5 Cu. Ft. Plus Series Undercounter Refrigerator, Built-In, Left Hinged

Features
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Four adjustable shelves (two large, two small) with guard rail on back to prevent product from being pushed against the back wall
- Back wall evaporator cover
- Forced draft circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- Probe access port (3/8")
- Powder coat exterior
- High density urethane foam cabinet and door insulation
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
- Pyxis®, Omnicell® and AcuDose RX® compatible
Temp Controller
- Microprocessor temperature controller
- Adjustable operating temperature range: 1°C - 10°C
- Digital temperature display
- Audible and visual high and low temperature alarms
- 2 probes; 1 in air and 1 in sample bottle
- Remote alarm contacts
Specifications
Overview
-
Nominal Height:30.75" (78.11 cm)
-
Nominal Width:17.75" (45.09 cm)
-
Nominal Length:22.75" (57.79 cm)
-
Internal Height:23.25" (59.06 cm)
-
Internal Width:14" (35.56 cm)
-
Internal Length:13.25" (33.66 cm)
-
Capacity:2.5
Technical Data
-
Defrost:Cycle
-
Door:1 Solid LH
-
Int Door:0
-
Shelves:4Adj
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:0.90
-
Weight:69 lbs.
Drawings
-
LRP-HC-UCBI-0204-LH Ext Cut SheetVisit Link
-
LRP-HC-UCBI-0204-LH Int Cut SheetVisit Link
Useful Links
-
LRP-HC-UCBI-0204-LH Spec SheetVisit Link
