Our Hazardous Location freezers meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines. These units are engineered for use in environments where volatile / explosive conditions could potentially exist. For storage of flammable or volatile materials within typical laboratory or non-volatile environments, see Flammable Material Storage units.

Product Range

SKU Name
LRP-HC-EFP-20 Lab Research Products - LRP-HC-EFP-20 - 20 Cu. Ft. Basic Series Hazardous Location Freezer
LRP-HC-EFP-14 Lab Research Products - LRP-HC-EFP-14 - 14 Cu. Ft. Basic Series Hazardous Location Freezer
LRP-HC-EFP-17 Lab Research Products - LRP-HC-EFP-17 - 17 Cu. Ft. Basic Series Hazardous Location Freezer

Features

Our Hazardous Location freezers meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines. These units are engineered for use in environments where volatile / explosive conditions could potentially exist. For storage of flammable or volatile materials within typical laboratory or non-volatile environments, see Flammable Material Storage units.


Utilizes ATEX and non-sparking components for safety. Models feature a microprocessor temperature controller, allowing for precise temperature control, recovery and maintenance versus mechanical style thermostats.


Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.


Please Note: Not equipped with plug must be hardwired in conduit. Periodic Manual Defrosting is required.


Details

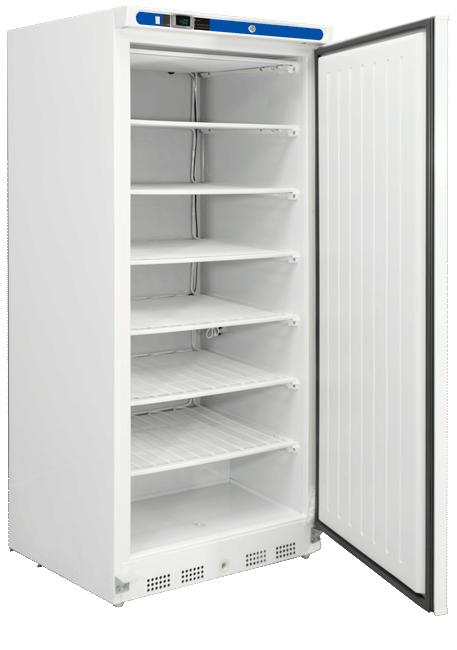

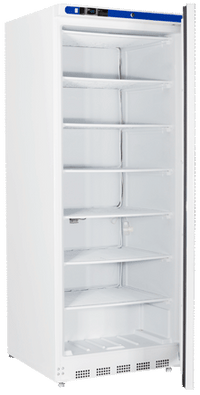

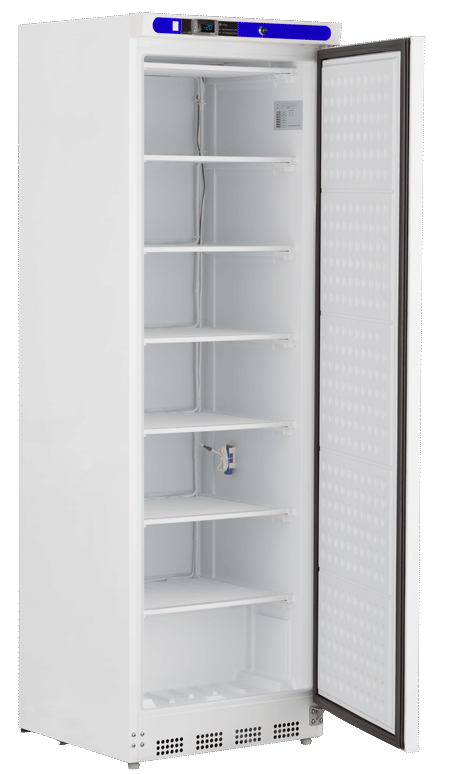

  • Six fixed shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • Hydrocarbon, natural refrigerant (R290)
  • Two year parts and labor warranty
  • Utilizes ATEX and non-sparking components for safety
  • Meet NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Groups A,B,C & D

Temp Controller


  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: -15°C - -25°C

Specifications

Overview

General Description and Application

  • Door:
    Right Hinged
  • Shelves:
    6 Fixed
  • Freezer Compartments:
    Non-applicable
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    Non-applicable
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed Door Lock
  • Power Plug/Power Cord:
    Power cord is not included - final power connections at site must be hardwired to meet local codes
  • Facility Electrical Requirement:
    115V, 60 Hz

Refrigeration System

  • Refrigerant:
    R290
  • Defrost:
    Manual
