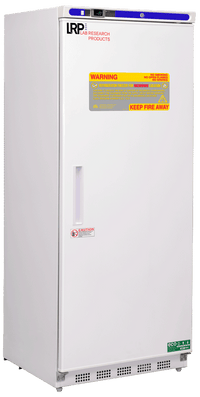

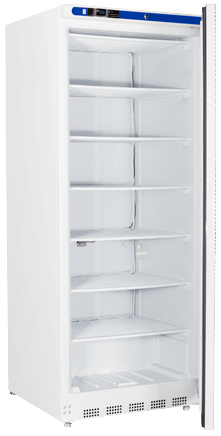

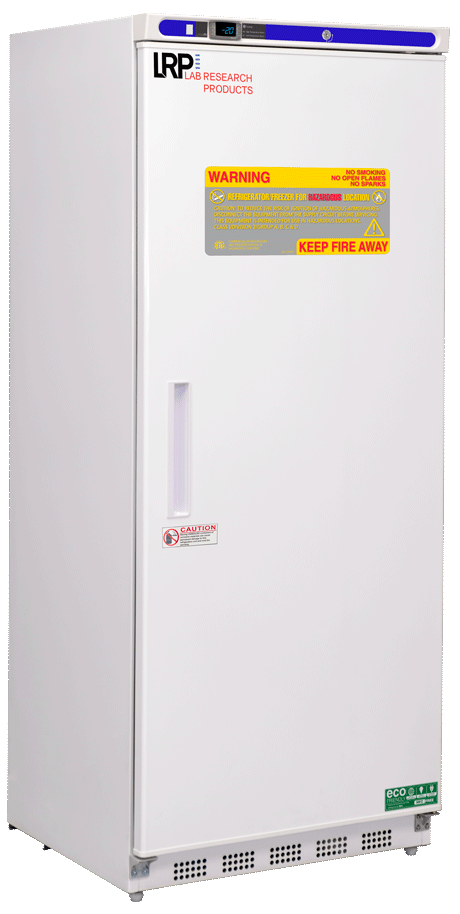

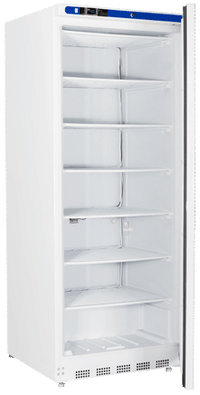

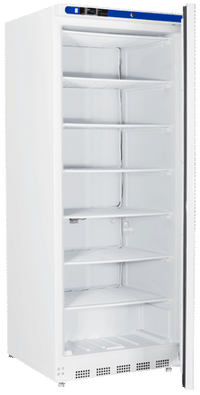

Lab Research Products - LRP-HC-EFP-20 - 20 Cu. Ft. Basic Series Hazardous Location Freezer

Features
Our Hazardous Location freezers meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines. These units are engineered for use in environments where volatile / explosive conditions could potentially exist. For storage of flammable or volatile materials within typical laboratory or non-volatile environments, see Flammable Material Storage units.
Utilizes ATEX and non-sparking components for safety. Models feature a microprocessor temperature controller, allowing for precise temperature control, recovery and maintenance versus mechanical style thermostats.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Please Note: Not equipped with plug must be hardwired in conduit. Periodic Manual Defrosting is required.
Details
- Six fixed shelves
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handle
- Leveling legs
- White textured cabinet and door
- High density urethane foam cabinet and door insulation
- Hydrocarbon, natural refrigerant (R290)
- Two year parts and labor warranty
- Utilizes ATEX and non-sparking components for safety
- Meet NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Groups A,B,C & D
Temp Controller
- Microprocessor Temperature Controller
- Adjustable operating temperature range: -15°C – -25°C
Specifications
Overview
-
Nominal Height:74.63" (189.56 cm)
-
Nominal Width:30.75" (78.11 cm)
-
Nominal Length:29" (73.66 cm)
-
Internal Width:25.88" (65.74 cm)
-
Internal Length:21.75" (55.25 cm)
-
Capacity:20
General Description and Application
-
Door:Right Hinged
-
Shelves:6 Fixed
-
Freezer Compartments:Non-applicable
-
Baskets:Non-applicable
-
Mounting:Leveling Legs
-
Interior Lighting:Non-applicable
-
Airflow Management:Non-applicable
-
External Probe Access:Non-applicable
-
Insulation:Cabinet is foamed-in-place with EPA compliant high density urethane foam
-
Exterior Materials:White powder coated steel
-
Access Control:Keyed Door Lock
-
Product Weight (lbs):225
-
Shipping Weight (lbs):250
-
Rated Amperage:5.5 Amps
-
Power Plug/Power Cord:Power cord is not included - final power connections at site must be hardwired to meet local codes
-
Facility Electrical Requirement:115V, 60 Hz
Refrigeration System
-
Refrigerant:R290
-
Defrost:Manual
Downloads
-
LRP-HC-EFP-20 Data SheetDownload
