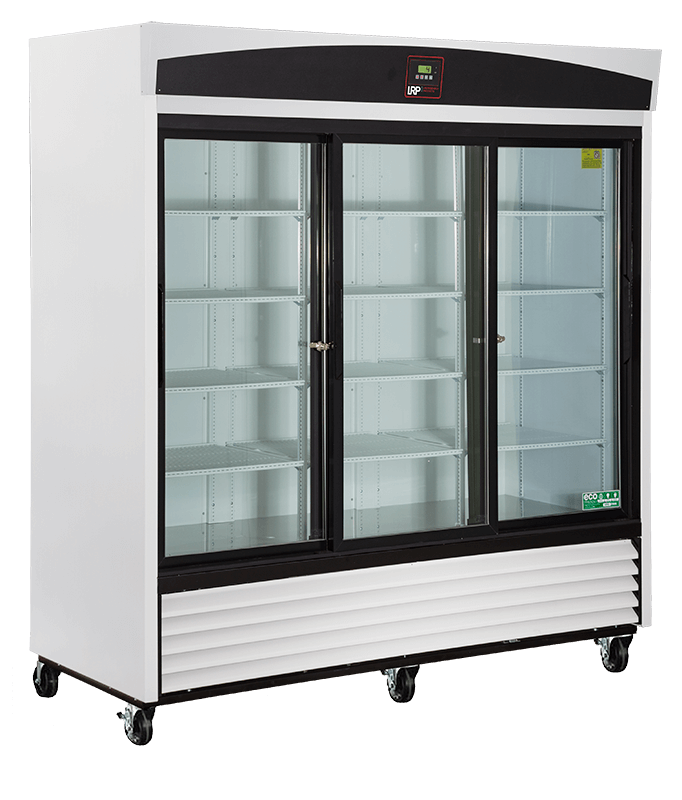

Lab Research Products - LRP-HC-69 - 69 Cu. Ft. Plus Series Glass Door Laboratory Refrigerator

Product Range
| SKU | Name |
|---|---|
| LRP-HC-69-TS | Lab Research Products - LRP-HC-69-TS - 69 Cu. Ft. TempLog Plus Series Glass Door Laboratory Refrigerator |
Features
The all-new temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- 69 Cu. Ft. capacity
- Three sliding glass doors, self-closing (energy efficient, double pane vacuum insulated)
- Twelve adjustable shelves (adjustable in ½" increments)
- Forced draft air circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Integrated door handles
- LED interior lights are safety shielded and switch controlled
- Swivel casters (adds 4" to height)
- HFC-free refrigerant (R290), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
Temp Controller
- Microprocessor Temperature Controller
- Adjustable operating temperature range: 1°C to 10°C

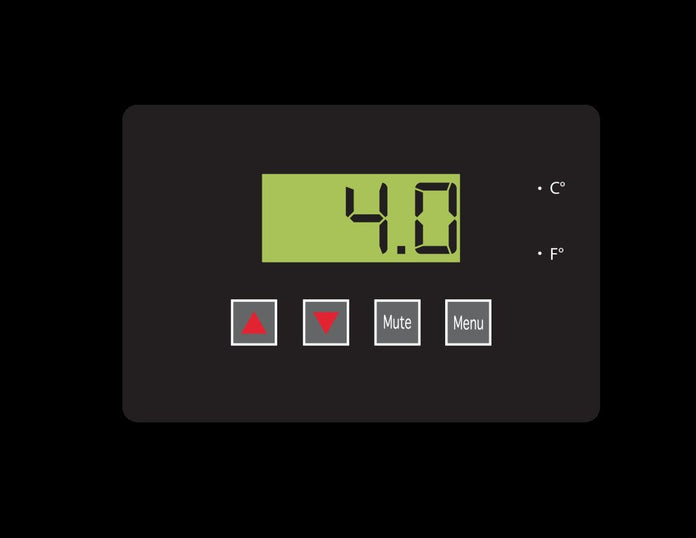

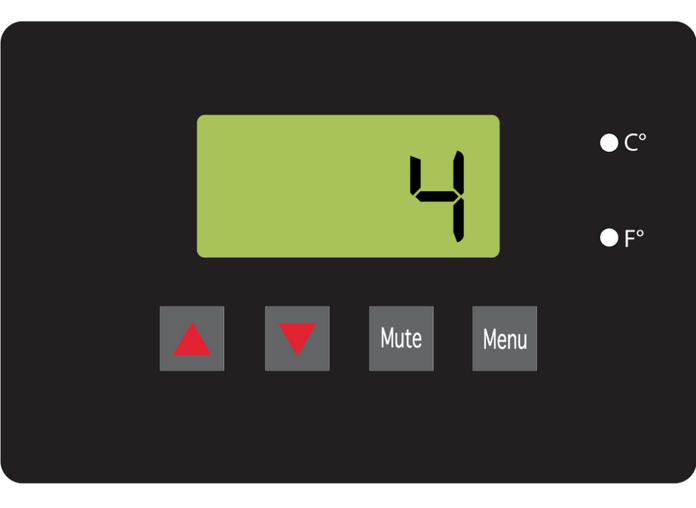

- Standard Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
- Sample simulated digital temperature display; 1° Resolution
- Adjustable temperature display in Celsius or Fahrenheit
- Audible and visual high/low temperature alarms
- Sensor error alarm
- Power failure alarm
- Resettable 1-point Min/Max History
- Remote alarm contacts
- Alarm validation (audible, visual, and remote alarm)
- Alarm mute with ring back
Specifications
Overview
-
Nominal Height:82.63" (209.88 cm)
-
Nominal Width:78.25" (198.76 cm)
-
Nominal Length:30.75" (78.11 cm)
-
Internal Height:56.5" (143.51 cm)
-
Internal Width:74.25" (188.6 cm)
-
Internal Length:21.75" (55.25 cm)
-
Capacity:69
Technical Data
-
Defrost:Cycle
-
Door:3 Slide
-
Shelves:12 Adj.
-
Refrigerant:R290
-
H.P:1/2
-
Amps:9.3
-
Weight:645 lbs.
Drawings
-
LRP-HC-69 Ext Cut SheetVisit Link
-
LRP-HC-69 Int Cut SheetVisit Link
Useful Links
-
LRP-HC-69 Spec SheetVisit Link
