Lab Research Products - LRP-HC-19 - 19 Cu. Ft. Plus Series Glass Door Laboratory Refrigerator

Product Range
| SKU | Name |
|---|---|
| LRP-HC-19-TS-LH | Lab Research Products - LRP-HC-19-TS-LH - 19 Cu. Ft. TempLog Plus Series Glass Door Laboratory Refrigerator, Left Hinged |
| LRP-HC-19-TS | Lab Research Products - LRP-HC-19-TS - 19 Cu. Ft. TempLog Plus Series Glass Door Laboratory Refrigerator |
| LRP-HC-19-LH | Lab Research Products - LRP-HC-19-LH - 19 Cu. Ft. Plus Series Glass Door Laboratory Refrigerator, Left Hinged |
Features
This model has been discontinued and replaced with Model LRP-VS-LP-16 or LRP-VS-LP-23
The all-new temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details

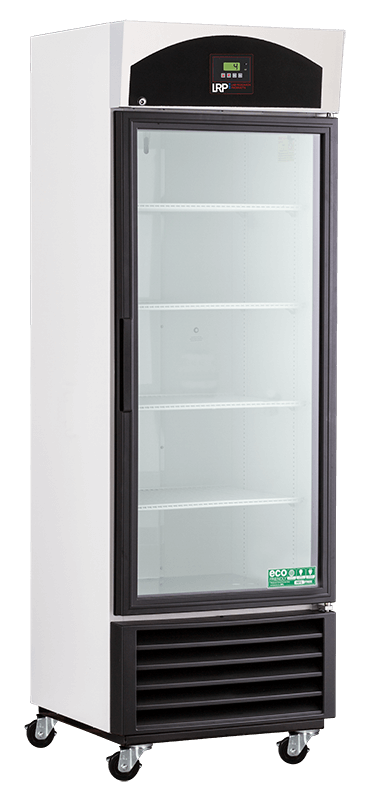

- 19 Cu. Ft. capacity
- One swing glass door, self-closing (energy efficient, double pane vacuum insulated), right hinged, not reversible
- Four adjustable shelves (adjustable in ½" increments)
- Forced draft air circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Recessed door handle
- LED interior lights are safety shielded and switch controlled
- Swivel casters (adds 4" to height)
- HFC-free refrigerant (R290), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
Temp Controller
- Microprocessor Temperature Controller
- Adjustable operating temperature range: 1°C to 10°C

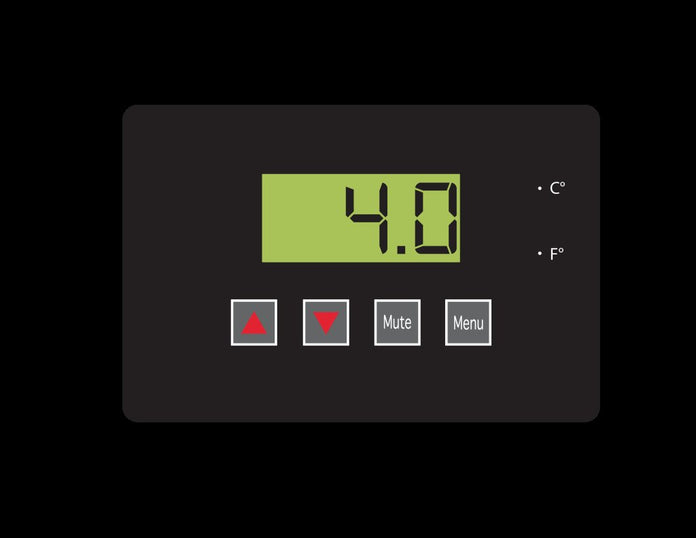

- Standard Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
- Sample simulated digital temperature display; 1° Resolution
- Adjustable temperature display in Celsius or Fahrenheit
- Audible and visual high/low temperature alarms
- Sensor error alarm
- Power failure alarm
- Resettable 1-point Min/Max History
- Remote alarm contacts
- Alarm validation (audible, visual, and remote alarm)
- Alarm mute with ring back
Specifications
Overview
-
Nominal Height:82.63" (209.88 cm)
-
Nominal Width:27.13" (68.91 cm)
-
Nominal Length:25.5" (64.77 cm)
-
Internal Height:56.5" (143.51 cm)
-
Internal Width:23.25" (59.06 cm)
-
Internal Length:19.5" (49.53 cm)
-
Capacity:19
Technical Data
-
Defrost:Cycle
-
Door:1 Glass
-
Shelves:4 Adj.
-
Refrigerant:R290
-
H.P:1/3
-
Amps:5.4
-
Weight:255 lbs.
Drawings
-
LRP-HC-19-TS Ext Cut SheetVisit Link
-
LRP-HC-19-TS Int Cut SheetVisit Link
Useful Links
-
LRP-HC-19-TS Spec SheetVisit Link
