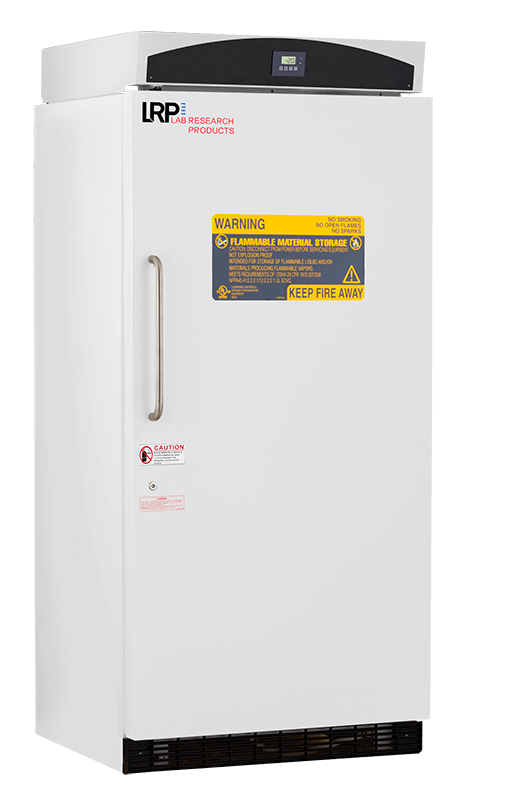

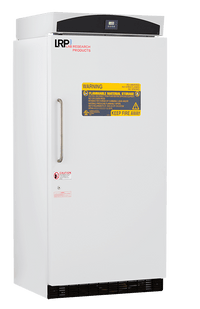

The Plus Series Flammable Storage units are also purpose built for critical cold storage applications, but where built-in data logging functionality may not be a necessity. The all-new temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller.

In addition to the base offering of flammable material storage refrigerators and freezers, these units feature a digital display, alarms and remote alarm contacts. These units meet NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas.

There are no electrical components located in the interior of the unit and the compressor’s electrical components have been sealed in a vapor-proof enclosure for additional safety.

These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.

Details

• Four fixed shelves
• Keyed door lock
• Magnetic door gasket for positive seal
• Stainless steel door handle
• Leveling legs
• One probe access port (3/8")
• White textured cabinet and door
• High density urethane foam cabinet and door insulation
• CFC-free refrigerant (R404a), foam insulation and packaging
• Two year parts and labor warranty

Temp Controller

• Microprocessor Temperature Controller
• Adjustable operating temperature range: -15°C to 25°C

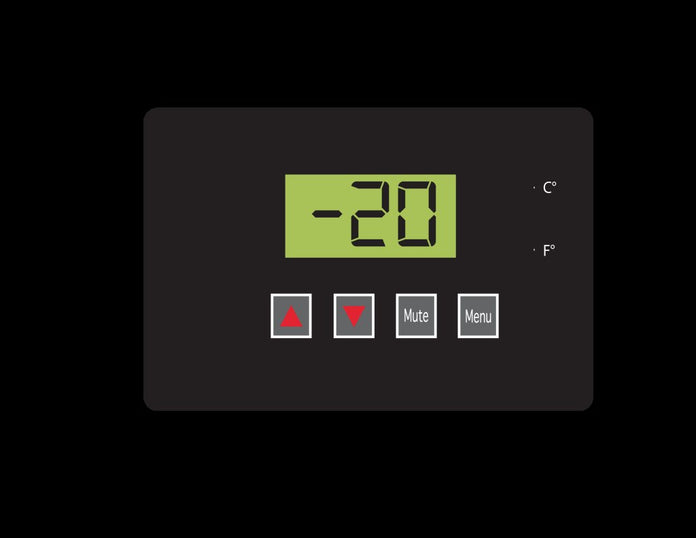

• Digital Temperature Display and Alarm Module
• Sample simulated digital temperature display; .1° Resolution
• Temperature display in Fahrenheit
• Audible and visual high/low temperature alarms
• Sensor error alarm
• Power failure alarm
• Resettable 1-point Min/Max History
• Remote alarm contacts
