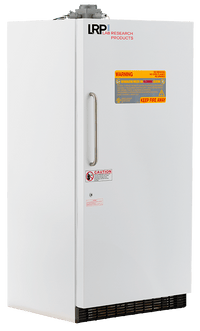

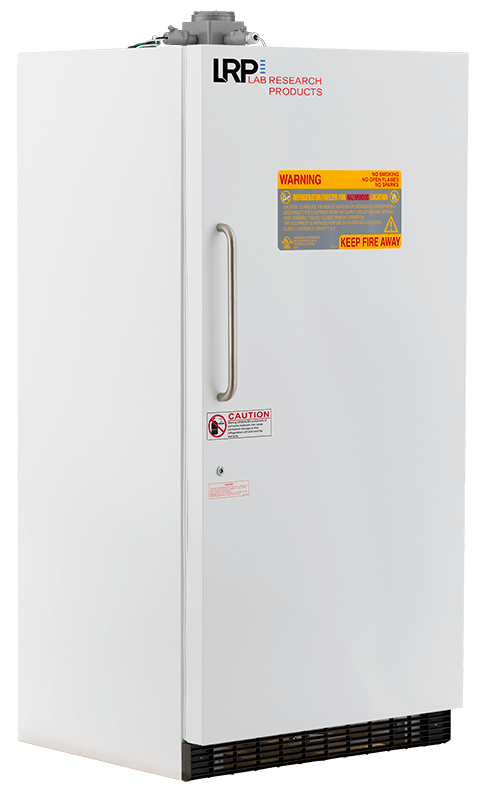

Lab Research Products - LRP-EFB-30 - 30 Cu. Ft. General Purpose Explosion Proof Freezer

Lab Research Products - LRP-EFB-30 - 30 Cu. Ft. General Purpose Explosion Proof Freezer
Lab Research Products - LRP-EFB-30 - 30 Cu. Ft. General Purpose Explosion Proof Freezer

Lab Research Products - LRP-EFB-30 - 30 Cu. Ft. General Purpose Explosion Proof Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
General Purpose Hazardous location freezers meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines. (Units are not intended for use in general clinical or research laboratories.).

Features

General Purpose Hazardous location freezers meet NFPA and OSHA guidelines for Hazardous Location, Class 1, Division II, Groups A,B,C & D guidelines.  (Units are not intended for use in general clinical or research laboratories.)



All spark generating electrical components and connections (compressor, thermostat) are isolated and sealed in vapor-proof enclosures. Electrical wiring is hardwired for additional safety measures.



Power cord is not included. Final power connections at site must be hardwired to meet local codes.



Details

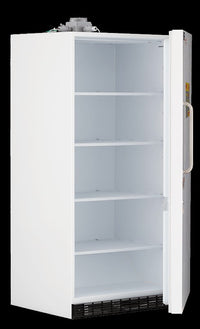

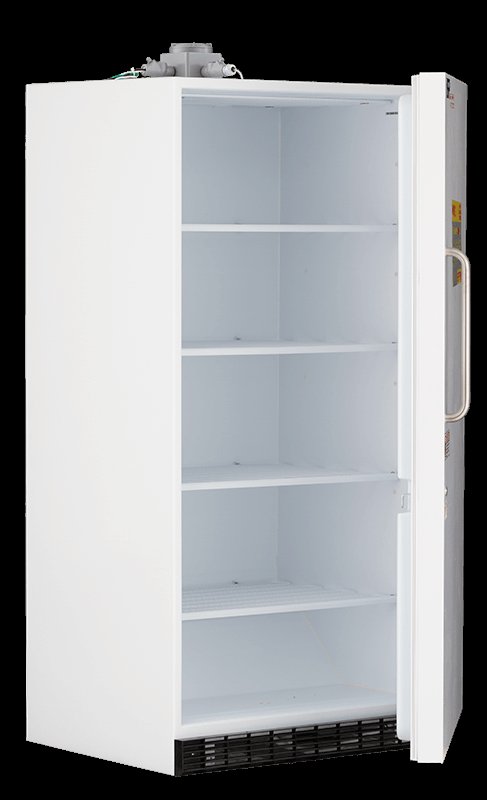

  • One solid swing door, right hinged, not reversible
  • Four fixed shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Stainless steel door handle
  • Leveling legs
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • CFC-free refrigerant (R404a), foam insulation and packaging



Temp Controller



  • Mechanical thermostat sealed in UL listed explosion proof box
  • Adjustable operating temperature range:  -15°C to -25°C

Specifications

Overview

  • Nominal Height:
    77.5" (196.85 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.25" (89.54 cm)
  • Internal Height:
    65" (165.1 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

Technical Data

  • Defrost:
    Manual
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    4 Fixed
  • Refrigerant:
    R404a
  • H.P.:
    1/3
  • Amps:
    6
  • Weight:
    330 lbs.
