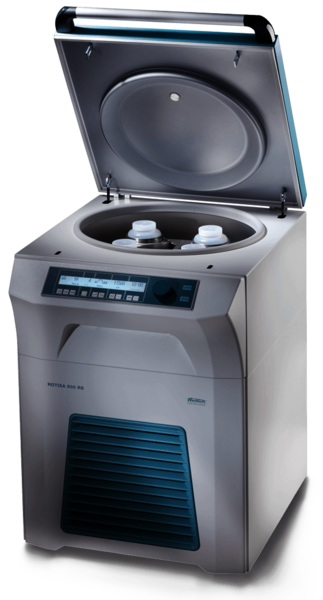

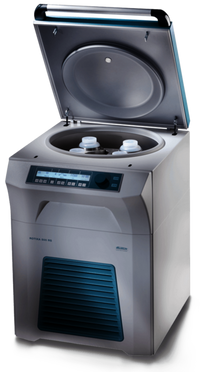

Hettich - ROTIXABLOOD4-BC - Roxita 500 RS Floor-Standing Centrifuges, 120 Blood Tubes Package (Bio-Containment)

Hettich - ROTIXABLOOD4-BC - Roxita 500 RS Floor-Standing Centrifuges, 120 Blood Tubes Package (Bio-Containment)
Hettich - ROTIXABLOOD4-BC - Roxita 500 RS Floor-Standing Centrifuges, 120 Blood Tubes Package (Bio-Containment)
Hettich - ROTIXABLOOD4-BC - Roxita 500 RS Floor-Standing Centrifuges, 120 Blood Tubes Package (Bio-Containment)

Hettich - ROTIXABLOOD4-BC - Roxita 500 RS Floor-Standing Centrifuges, 120 Blood Tubes Package (Bio-Containment)

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Includes: (1) Rotixa 500 RS centrifuge, (1) horiz. rotor, (4) buckets, (4) adapters 13 x 75/100, (4) adapters 16 x 75/100, (4) bio-lids.

Features

The ROTIXA 500 RS Blood Tube Package 4 BC comes complete with everything you need to perform your application. This includes the ROTIXA 500 RS centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and bio-containment lids. Many a-la-carte options are also available.


Small footprint - high volume


Its durable components makes the ROTIXA 500 RS a reliable unit with a long service life. High sample capacity and maximum RCF of 18,038 make it suitable for 4 x 450 - 1,000 ml blood bags. Specially designed buckets keep blood bags upright during centrifugation for improved separation of blood components.

In industrial research labs, it accomodates 4 bottles up to 1,000 ml, specialty racks, as well as container and vessels for various applications. This unit includes refigeration with a temperature range from -20°C to +40°C.


Highlights


  • RPM: 50 - 11,500 min -1. Adjustable in increments of 10
  • RCF: 50 - 18,038. Adjustable in increments of 1
  • max. capacity: 4 x 1,000 ml
  • choice of 5 rotors
  • Medical device according to regulation (EU) 2017/745
  • easy operation with keypad and control knob
  • 89 program memories for more individuality
  • 19 individual acceleration and deceleration stages

Features


  • metal housing and lid
  • viewing port in the lid
  • powered one hand lid lock
  • lid dropping protection
  • emergency lid lock release
  • stainless steel chamber
  • automatic rotor recognition
  • brushless drive
  • error display
  • display in °C and °F possible
  • imbalance monitoring and switch-of

Areas of applications


Clinical Chemistry, Blood transfusion


Compact floorstanding centrifuge for high-throughput processing of blood collection tubes. As well as bloodbag centrifugation.


Industry and Research


The high-capacity accessories for plates and racks are versatile and suitable for various assays.

Specialty rotors and accessories are also available for bottles, ASTM, Babcock, Schlenk, and Chrome Bath tubes to accommodate different needs.


Facilities


  • Hospitals
  • Blood banks
  • Transfusion medicine laboratories
  • Cell culture laboratories

Specifications

Overview

Technical Data

  • Voltage: 220 V 1 ~;Frequency: 60 Hz;Consumption: 3,800 VA;Emission, Immunity: EN/IEC 61326-1, class B;Max. Capacity: 4 x 1,000 ml;Max. RPM: 11,500 min⁻¹;Max. RCF: 18,038;Running Time: 1 - 999 min 59 s, ∞ continuous run;Dimensions (W x D x H): 650 x 814 x 973 mm;Weight: approx. 219 kg;Noise Level: 58 dB (A) with rotor 4282;Temperature Control, Infinitely Variable: from -20 to +40°C:

Blood Tube Package - 4 - Bio-Contaiment

  • Tube Qty.:
    120
  • Volume (ml):
    1.6-7 | 4-10
  • Size (mm):
    13 x 75/100 | 16 x 75/100
  • RPM:
    ≤ 4,500
  • RCF:
    ≤ 4,777

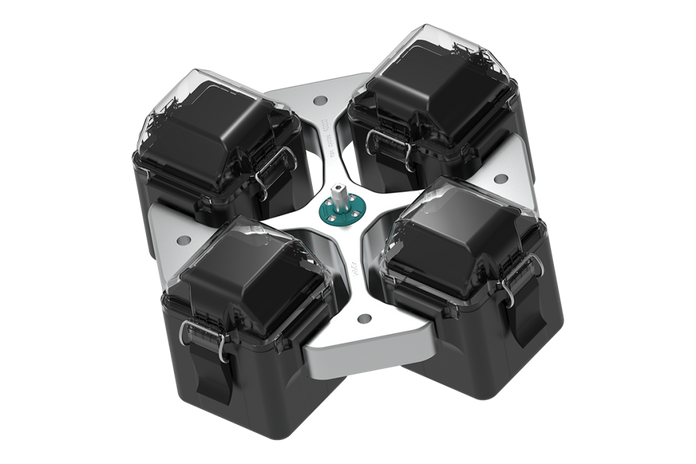

Swing-out Rotor, 4 - Place

  • Max. RCF:
    5,252
  • Max. RPM:
    4,500 min-1
  • Max. Capacity:
    4 x 1,000 ml
  • Angle:
    90°
  • Cat.No.:
    4294+4295-A+4229-B
