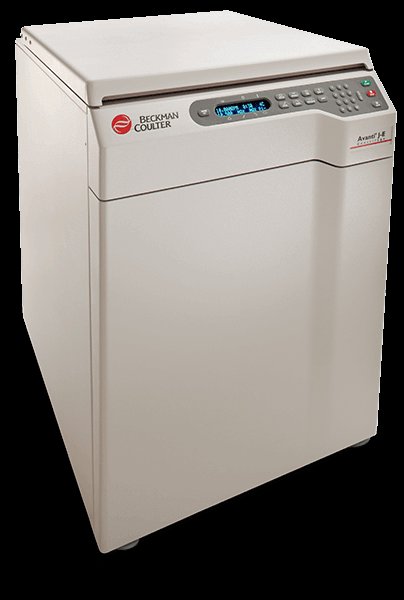

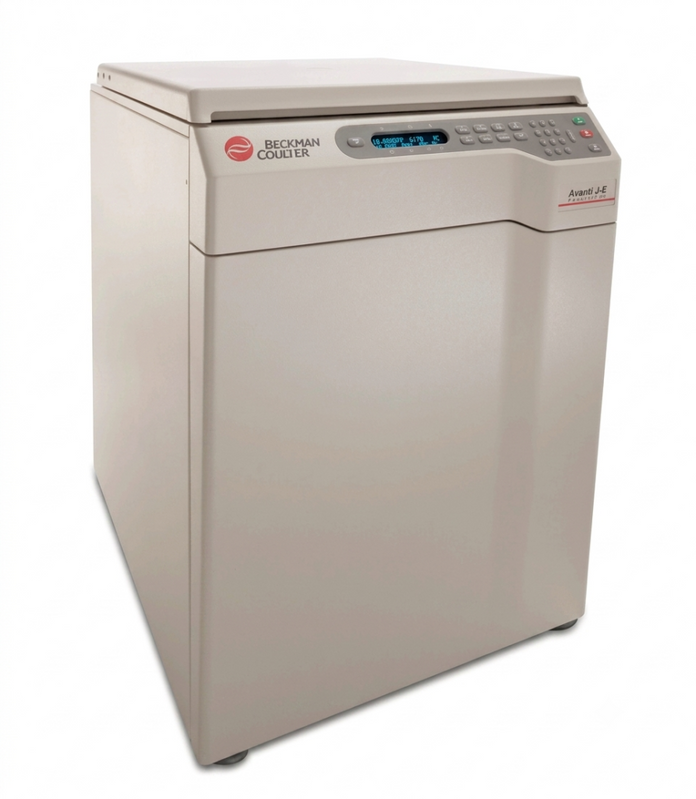

Beckman Coulter - 969352 - Avanti J-E BioSafe (4L), High Performance Floor Centrifuge, 60 Hz, 208/240 V
Features
Easily perform separations with the compact Avanti® J-E high-speed centrifuge. The Avanti J-E is uniquely designed to achieve a high degree of separation, and offer outstanding high-speed performance in a compact design.
- 4.0L max capacity
- 21,000 RPM
- 53,300 x g
Reduction in Experiment Time
- A faster acceleration/deceleration selection menu provides time savings during protocol runs
- Optimized surface height and contoured front panel allow for easy rotor installation and retrieval
- Switched reluctance (SR) drive technology for shorter wait times
Sample Protection
- Set and control temperature to maintain sample integrity
- Extensive rotor library for safe sample transportation
- Application benefits from efficient hardware and supplies
Design and Safety
- All the power you need – even in the tightest lab spaces
- Low-speed automated rotor identification with auto-reset for operational safety
Energy Savings
- A lower heat output provides energy efficiency
- Maintenance-free vacuum reduces rotor friction reducing energy use
Specifications
Overview
-
Nominal Height:91.4" (232.16 cm)
-
Nominal Width:63.5" (161.29 cm)
-
Nominal Length:80" (203.2 cm)
-
Capacity:4
Product Data
-
Maximum Speed/g-Force:21,000 rpm/53,300 x g
-
Speed Control:±50 rpm of set speed
-
Set Temperature:-10° C to 40° C in 1° increments
-
Temperature Control:±2° C of set temperature after equilibration
-
Ambient Operating Range:15° C to 35° C
-
Accel/Decel Profiles:2/3
-
Heat Output:<6900 BTU/hr (2.0 kW)
-
Drive Type/Cooling:SR drive/Air-cooled
-
Refrigeration:Non-CFC, non-ozone depleting refrigerant
-
Sound Level:<64 dBa (0.91 m/3 ft from instrument at maximum speed)
-
Weight:267.4 kg (589 lb)
-
Power Requirements:200/208/240V, 50 Hz
