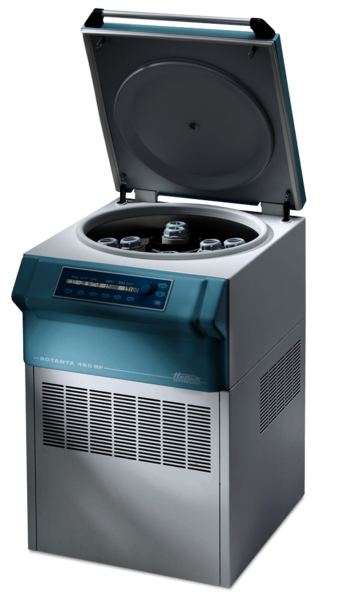

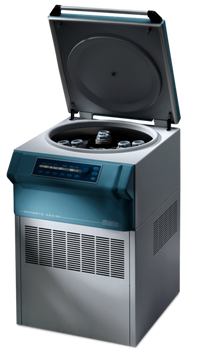

Hettich - 460RFBLOODHC - Rotanta 460RF Floor-Standing Centrifuges, Blood Tube Package (High Capacity)
Features
The ROTANTA 460 RF Blood Tube Package High Capacity comes complete with everything you need to perform your application. This includes the ROTANTA 460 RF centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes. Many a-la-carte options are also available.

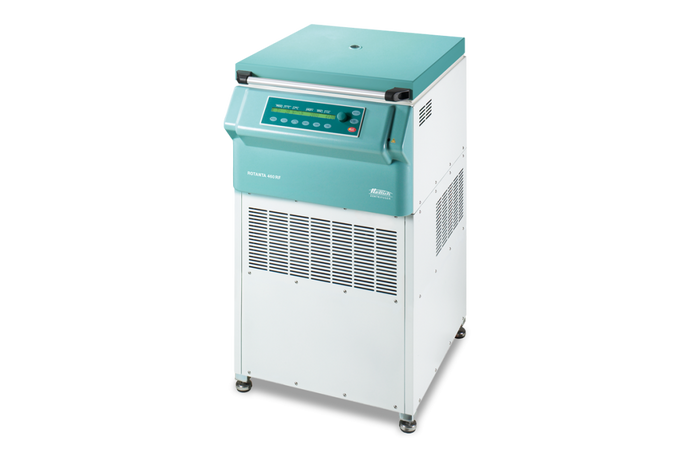

The floor-standing version of our multi-purpose device
This modified version of the standard ROTANTA 460 allows frees valuable working space from bench top units. This unit includes refrigeration with a temperature range from -20°C to +40°C.
Highlights
- RPM: 50 - 15,000 min -1. Adjustable in increments of 10
- RCF: 50 - 24,400. Adjustable in increments of 1
- max. Capacity: 4 x 1,000 ml
- choice of 8 rotors
- Medical device according to regulation (EU) 2017/745
- 28 individual acceleration and deceleration stages
- easy operation with keypad and control knob
- 98 program memories for more individuality
- model 460 R coolable from -20 to +40 °C with pre-cooling function
Features
- metal housing and lid
- viewing port in the lid
- powered one-hand lid lock
- lid dropping protection
- emergency lid lock release
- stainless steel chamber
- automatic rotor recognition
- brushless drive
- error display
- display in °C and °F possible
- imbalance monitoring and switch-off
- backlit panel with actual values of all parameters
- auditory message after completion of the centrifugation run
Areas of applications
Clinical chemistry, Hematology, Serology, PCR
This high-throughput centrifuge is suitable for large laboratories such as blood banks or high-throughput clinical labs, since it takes a vast variety of blood collection tubes.
With the small footprint & the two selectable working heights, it enables ergonomic centrifugation of small blood bag systems, e.g. for autologous blood donation.
Research and Industry, Cell Culture
- Specialty rotors and accessories for ASTM, Babcock, Schlenk and Chrome bath tubes.
- For PCR maxi / 96 kits a unique high-speed plate rotor spinning SBS format plates at up to 6,446 RCF is available as well as accessories for cell culture.
- One rotor takes multiple tube types, bottles, blood bags and plates, no time wasting rotor change is required.
Facilities
- Hospitals
- Blood banks
- Transfusion medicine laboratories
- Cell culture laboratories
Specifications
Overview
Technical Data
-
Voltage: 100 - 127 V 1 ~;Frequency: 60 Hz;Consumption: 2,000 VA;Emission, Immunity: FCC class B;Max. Capacity: 4 x 750 ml;Max. RPM: 15,000 min⁻¹;Max. RCF: 24,400;Running Time: 1 - 99 h: 59 min: 59 s, ∞ continuous run, short cycle mode;Dimensions (W x D x H): 554 x 697 x 961 mm;Weight: approx. 174 kg;Noise Level: 60 dB (A) with rotor 4474;Temperature Control, Infinitely Variable: from -20 to +40°C:
Blood Tube Package - High Capacity
-
Tube Qty.:196 | 148
-
Volume (mm):1.6 - 7 | 4 - 10
-
Size (mm):13 x 75/100 | 16 x 75/100
-
RPM:3,800
-
RCF:≤ 2,906 | ≤ 2,970
Swing-out Rotor, 4 - Place
-
Max. RCF:3,196
-
Max. RPM:3,800 min-1
-
Max. capacity:4 x 1,000 ml
-
Angle:90°
-
Standard Equipment:Incl. Bio-Containment lid
-
Cat.No.:5654+5651-A+5674
