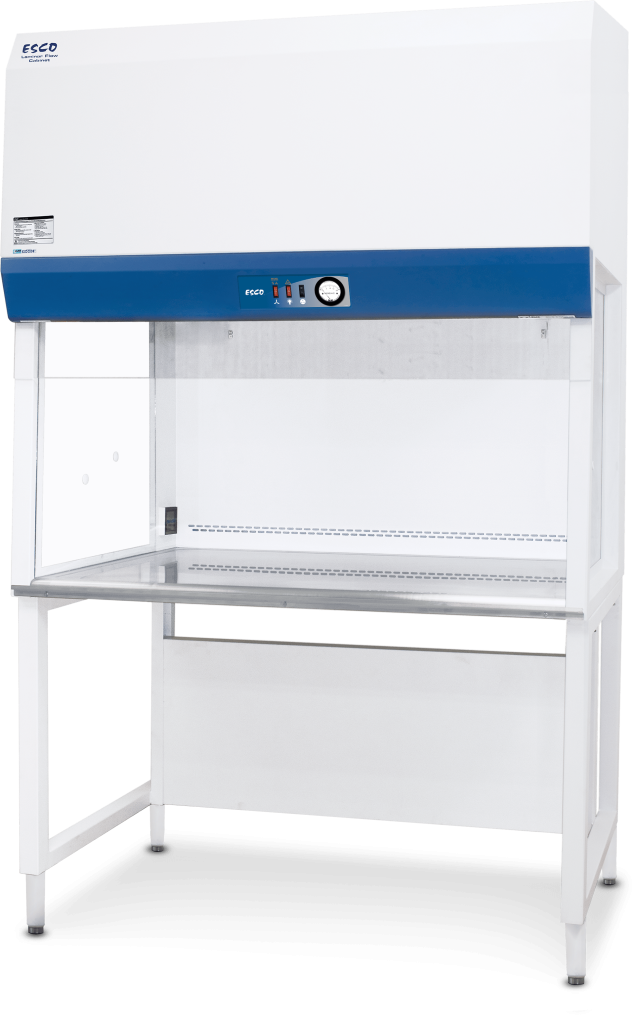

ESCO - LVG-5AS-F9 - Airstream Gen 3 Vertical Laminar Flow Cabinet with Simple Switch
Features
Esco Airstream® Vertical Laminar Flow Cabinet is powered by the latest generation DC ECM motor and offers an ISO Class 3 work zone. This specialized model is equipped with easy-to-use simple switches for light and blower operation and a manually adjustable UV timer. With more choices for the customers, Esco laminar flow cabinets still offer the same level of product protection for your samples and processes where operator protection is not required.
High-Quality Construction
- Stainless steel worktop
- Spill-retaining design will ensure containment of accidental liquid spills
Quiet Operation
- Comfortable low noise at 52 dBA
- Reduce fatigue and improve work concentration
ULPA Filter
- 10x Filtration efficiency of HEPA filter creates ISO Class 3 work zone instead of industry-standard ISO Class 5
Rocker Switches
- Easy-to-use switches for cabinet’s operation
- Displays filter loading status
- Manually adjustable UV timer
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure
Specifications
Overview
-
Nominal Height:50" (127.0 cm)
-
Nominal Width:64.8" (164.59 cm)
-
Nominal Length:32.4" (82.3 cm)
-
Internal Height:27.1" (68.83 cm)
-
Internal Width:62" (157.48 cm)
-
Internal Length:29.1" (73.91 cm)
-
Capacity:6.5
General Specifications
-
Nominal Size:1.5 meter (5')
-
Average Airflow Velocity:0.45 m/s (90 fpm) at initial setpoint
-
Air Volume:1824 m³/hr (1074 cfm)
-
ULPA Filter Typical Efficiency:> 99.999% at particle size between 0.1 to 0.3 μm
-
Sound Emission per IEST-RP-CC002.2:55.6 dBA
-
LED Lamp Intensity at Zero Ambient:894 Lux (83 foot candles)
-
Net Weight:199 Kg (438 lbs)
-
Shipping Weight:256 Kg (564 lbs)
-
Shipping Dimensions, Maximum (W x D x H):1720 x 900 x 1590 mm (68" x 35" x 62")
-
Shipping Volume, Maximum:2.5 m³ (88.2 ft³)
Electrical Power Rating 9 110-130 VAC, 50 / 60Hz, 1 phase
-
Cabinet Full Load Amps (FLA):14.3 A
-
Optional Outlets (FLA):6 A
-
Cabinet Nominal Power (W):204
-
Heat Rejected, BTU per Hour:696
Cabinet Construction
-
Main Body:1.2 mm (0.05") 18-gauge electro-galvanized steel with white oven-baked epoxy-polyster powder-coated finish
-
Work Zone:1.2 mm (0.05") 18-gauge stainless steel, grade 304, with 4B finish
-
LVG Side Walls:UV-absorbing tempered glass, 5 mm (0.2"), colorless and transparent
