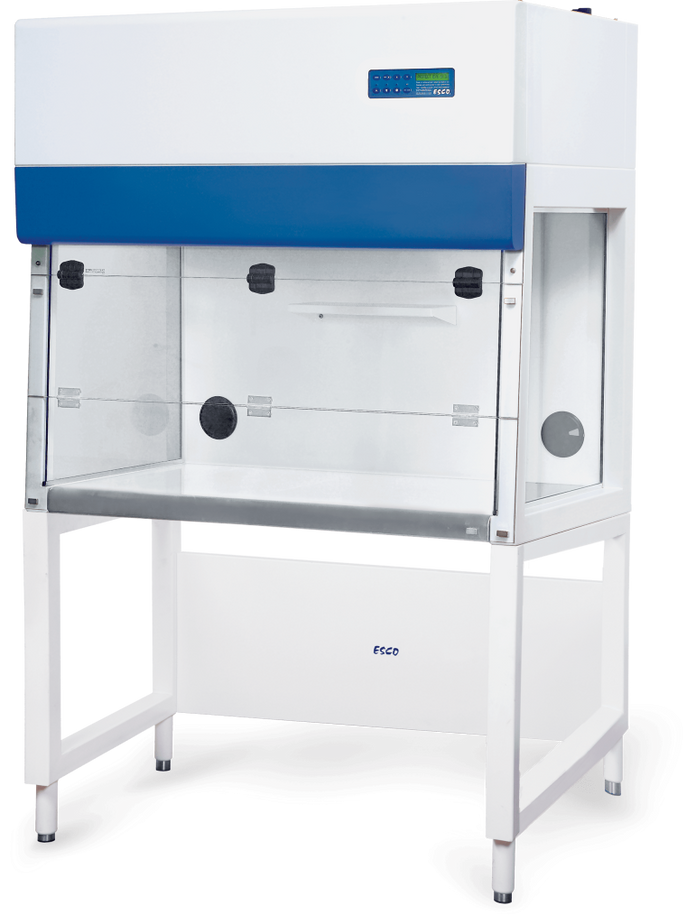

AIRSTREAM Polymerase Chain Reaction Cabinet with Microprocessor 3ft Vertical Laminar Flow, Full Hinge Front, UV Light, Blower and HEPA Filter.

Features

Polymerase Chain Reaction is fundamental to almost all applications requiring a high copy number of starting material and is used in all laboratories working with DNA and RNA. Because of the high copy number generated during PCR, it is essential to prevent possible contamination of the PCR.



Esco Airstream® PCR Cabinet (PCR) is equipped with HEPA-filtered laminar flow, airflow monitoring, UV lamp & prefilter change alarm to provide a sterile environment for reagent and sample preparation during PCR mastermix preparation.



Sentinel™ Silver Microprocessor Controller



  • Displays basic parameters such as airflow on one screen.
  • Has alarms to notify users to change filters.



High Performance Fan System



  • German-made ebm-papst® permanently lubricated, centrifugal motor/blowers with external rotor designs.



Superior Air Cleanliness



  • Provide ISO Class 3 air cleanliness within the work zone as per ISO 14644.1.



Proven Product Protection



  • Vertical laminar airflow with HEPA-filtration, >99.99% at 0.3 microns.



UV Decontamination System



  • UV lamp (253.7 nm).
  • UV timer adjustable up to 18 hours. Default value at 60 minutes.
  • UV-filtering polycarbonate front and glass sides shield the user from accidental UV exposure.



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure.



Watch the video

Specifications

Overview

  • Nominal Height:
    37.4" (95.0 cm)
  • Nominal Width:
    52.8" (134.11 cm)
  • Nominal Length:
    24.3" (61.72 cm)
  • Internal Height:
    21.7" (55.12 cm)
  • Internal Width:
    48.8" (123.95 cm)
  • Internal Length:
    21.2" (53.85 cm)

General Specifications

  • Nominal Size:
    1.2 meter (4')
  • Laminar Airflow Velocity:
    60 fpm
  • Pre-Filter:
    Washable polyurethane fibers with 85% arrestance
  • Sound Emission:
    <58 dBA
  • LED Lamp Intensity:
    >1230 Lux (>114 foot candles)
  • UV Lamp:
    253.7 nanometer 30-watt UV lamp
  • Controller:
    Esco Sentinel™ Microprocessor Control
  • Net Weight:
    115.4 Kg (254 lbs)
  • Shipping Weight:
    139.8 Kg (308 lbs)
  • Shipping Dimensions - Maximum (L x W x H):
    1420 x 730 x 1150 mm (55.9” x 28.7” x 45.3”)
  • Shipping Volume - Maximum:
    1.19 m3 (42 cu.ft.)

Construction - Electrical

  • Main Body:
    Electrogalvanized steel with white oven-baked epoxy-polyester powder-coated finish. Coated with Esco Isocide™ antimicrobial coating
  • Work Zone:
    1.2 mm (0.05") 18 gauge stainless steel grade 304
  • Cabinet Full Load Amps (FLA):
    3.8 A
  • Cabinet Nominal Power:
    260 W
  • Cabinet BTU:
    887
